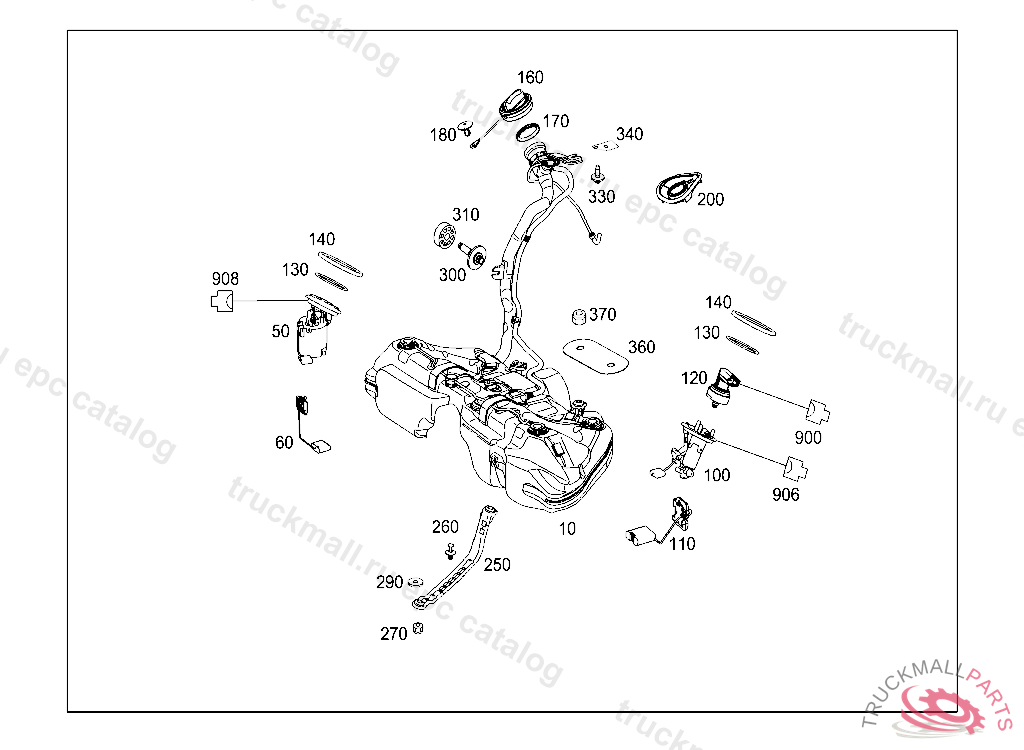

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK
10
FUEL TANK
50
DELIVERY UNIT IN TANK AT RIGHT WITHOUT FUEL LINES
50
DELIVERY UNIT IN TANK AT RIGHT WITHOUT FUEL LINES, A 26512820090115 L 02485320090115 V 00105120090115 F 31197620090115 R 07601720090115
50
DELIVERY UNIT IN TANK AT RIGHT WITHOUT FUEL LINES
50
DELIVERY UNIT IN TANK AT RIGHT WITHOUT FUEL LINES
60
SENDER UNIT , F 31197620090115
60
SENDER UNIT
100
SUCTION JET PUMP IN TANK AT LEFT WITH LINES
100
DELIVERY UNIT IN TANK AT LEFT WITH LINES
110
SENDER UNIT
120
PRESSURE SENSOR FUEL PUMP, Replaced By: A0009051100
120
PRESSURE SENSOR
130
O-RING PUMP TO RESERVOIR 135.5X6
130
O-RING PUMP TO RESERVOIR
140
BAYONET TYPE CAP SUPPLY UNIT AT TANK
160
FUEL FILLER CAP , J 75730520090630 TO BE ADAPTED DURING ASSEMBLY
160
FILLER CAP , J 75730620090630
160
FILLER CAP
170
SEAL RING FILLER CAP
180
EXPANSION RIVET. RIVET
200
GROMMET SEAL FILLER NECK
250
TENSIONING STRAP TANK TO BODYSHELL
260
EXPANSION RIVET
270
COMBINATION NUT TANK TO BODYSHELL M8
290
SEAL WASHER BETWEEN TENSIONING STRAP AND BODY
300
BOLT TANK TO BODY, CENTER M8X35
310
WASHER FILLER NECK TO BODY, BOTTOM
330
EXTERNAL HEXAL. HD. BOLT FILLER NECK TO BODY, TOP
340
GASKET BETWEEN TANK LOCKING BASE AND VEHICLE SHELL
360
MOUNTING PLATE BETWEEN FUEL TANK AND CHASSIS
370
COMBINATION NUT TANK TO BODYSHELL M8
900
CLUTCH FUEL PRESSURE SENSOR 3-PIN MLK1.2,B4/7
906
COUPLING HOUSING FUEL LEVEL SENSOR 3-PIN MLK1.2,X36/3
908
CLUTCH PLUG CONNECTION FOR FUEL PUMP WIRING HARNESS 7-PIN SLK2.8, MLK1.2,X36/3
