C 250 CDI 4MATIC BlueEFFICIENCY DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG
204.282

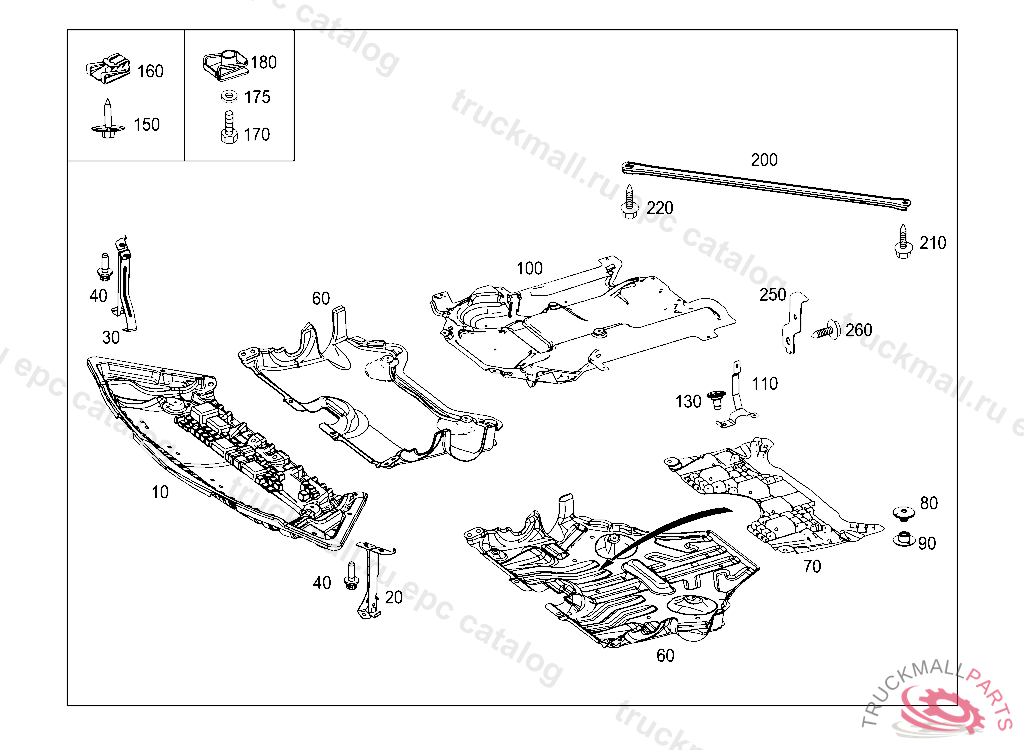

52 CHASSIS SHEET METAL / AIR INTAKE
045 ANTINOISE CAPSULE, DIESEL VEHICLES

C 250 CDI 4MATIC BlueEFFICIENCY DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG - 204.282 - 52 CHASSIS SHEET METAL / AIR INTAKE

Поз.
Артикул
Описание
10
A2045201123
ANTINOISE CAPSULE FRONT, TO BE ADAPTED DURING ASSEMBLY
20
A2045241340
BRACKET LEFT
30
A2045241440
BRACKET RIGHT
40
N910143006002
HEXALOBULAR BOLT. SCREW
60
A2125201323
ENCAPSULATION CENTRAL
60
A2125240301
UNDERBODY GUARD CENTRAL
60
A2125202623
ENCAPSULATION CENTRAL
60
A2125240601
UNDERBODY PROTECTION CENTRAL
70
A2125241085
DAMPING MAT FOR PROTECTIVE SHIELD
70
A2125241185
DAMPING MAT FOR PROTECTIVE SHIELD
80
A2019880481
FASTENER BUTTON UPPER PART
90
A2019880381
FASTENER BUTTON LOWER PART
100
A2125201523
ANTINOISE CAPSULE REAR, F 48789020100228
100
A2045201323
ANTINOISE CAPSULE REAR
100
A2125203223
ENCAPSULATION REAR, A 43976120100724 F 48789120100228
110
A2045241640
BRACKET RIGHT, F 84733520120119
110
A2045242740
BRACKET RIGHT, F 84733620120119
110
A2045241540
BRACKET RIGHT, A 14470920080301 L 00724320080228 V 00044520080228 F 13861520080302 L 10000020081016
130
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
150
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
A0019949845
LOCK. CLIP-TYPE NUT
160
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
170
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
175
N000000003250
WASHER BRACKET TO CAB REAR PANEL
180
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
200
A2045240547
STRUT BETWEEN LONGITUDINAL MEMBER ANDFRAME-TYPE INTEGRAL SUPPORT
210
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
220
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
