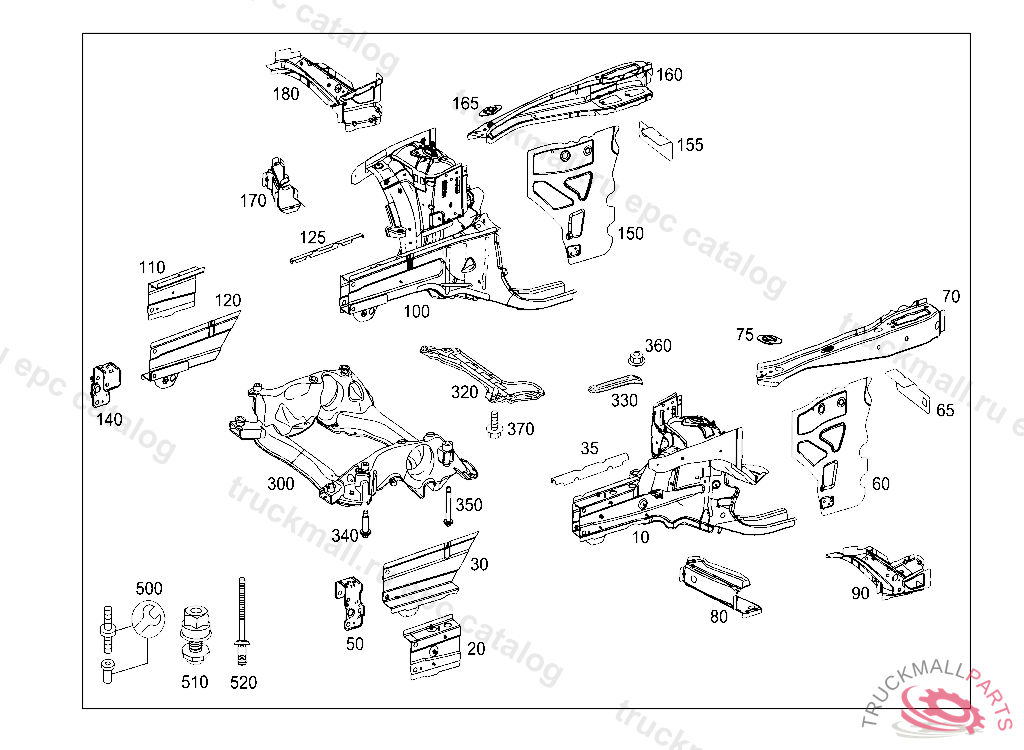

Поз.
Артикул
Описание
10
SIDE MEMBER LEFT, F 53236820100412MF 502825
10
WHEEL HOUSE LEFT, L 03887520100401 V 00243120100401 A 50752820101231 F 62949620101231 L 12864620101231
10
LONGITUDINAL MEMBER LEFT, L 03887520100401 V 00243120100401, Replaced By: A2046200150
20
COVER LONGITUDINAL MEMBER LEFT, F 53236920100408 P F 502825
20
COVER LEFT
30
SIDE MEMBER LEFT
35
ANGLE RIGHT SIDE MEMBER
50
BRACKET LEFT
60
LONGITUDINAL MEMBER LEFT
60
STRIKING PLATE LEFT, Replaced By: A2046200587
65
BRACKET LEFT REAR FENDER
70
SUPPORT TOP LEFT
75
PLATE ON CARRIER AT TOP LEFT
80
SIDE MEMBER TOEBOARD,LEFT
90
STRUT LEFT
100
WHEEL HOUSE RIGHT
100
SIDE MEMBER RIGHT, Replaced By: A2046200250
110
COVER RIGHT
120
SIDE MEMBER RIGHT
125
ANGLE RIGHT SIDE MEMBER
140
BRACKET RIGHT
140
BRACKET RIGHT, Replaced By: A2046201914
150
STRIKING PLATE RIGHT, Replaced By: A2046200687
150
LONGITUDINAL MEMBER RIGHT
155
BRACKET RIGHT REAR FENDER
160
SUPPORT TOP RIGHT
165
PLATE ON CARRIER AT TOP LEFT
170
SIDE MEMBER TOEBOARD,RIGHT
180
STRUT RIGHT
300
SUPPORT INTEGRAL SUPPORT
320
PLATE STEERING TO FRAME-TYPE INTEGRAL SUPPORT
320
PLATE STEERING TO FRAME-TYPE INTEGRAL SUPPORT
330
STAY FRAME-TYPE INTEGRAL SUPPORT,LEFT
330
STAY FRAME-TYPE INTEGRAL SUPPORT,RIGHT
340
BOLT FRAME-TYPE INT. SUP. TO LONG. MEMBER M14X1.5-SGX75
350
BOLT FRAME-TYPE INT. SUP. TO LONG. MEMBER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900411
360
NUT BRACKET TO SIDE MEMBER M12X1.5
360
HEXALOBULAR BOLT SUPPORTING STRUT AT BRACKET AT RIGHT BOTTOM M12X1,5X30
370
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
WELD STUD GROUND CONNECTION M8
510
WELD STUD GROUND CONNECTION M6
520
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
