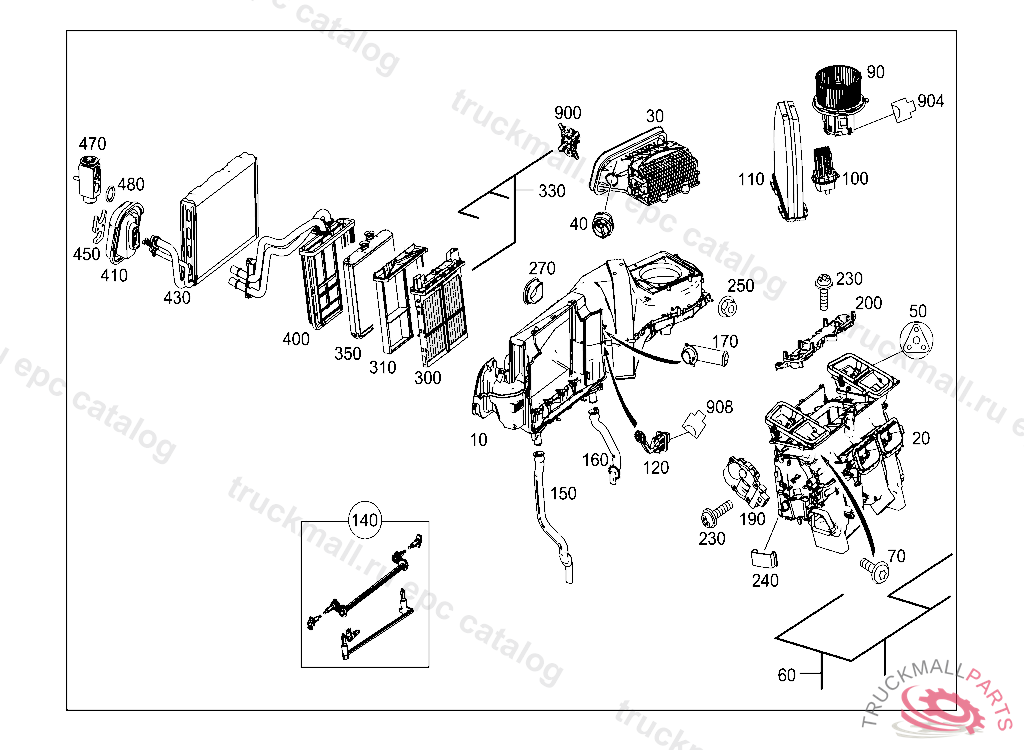

Поз.
Артикул
Описание
10
TS HOUSING AC HOUSING UPPER AND LOWER HALVES
10
HOUSING UPPER AND LOWER HALVES
20
HOUSING AIR DISTRIBUTOR, TO BE ADAPTED DURING ASSEMBLY
20
HOUSING AIR DISTRIBUTOR, TO BE ADAPTED DURING ASSEMBLY
20
HOUSING AIR DISTRIBUTOR
30
HOUSING FRESH AIR/CIRCULATING AIR
30
HOUSING FRESH AIR/CIRCULATING AIR
30
HOUSING FRESH AIR/CIRCULATING AIR
40
SENSOR DEW POINT SENSOR
50
GASKET KIT
60
ELECTRICAL WIRING HARNESS
60
ELECT. LINE
60
ELECT. LINE
60
ELECT. LINE
60
ELECTRICAL WIRING HARNESS
70
PAN HEAD SCREW. SCREW GROUND CONNECTION
90
RADIAL BLOWER
90
IMPELLER BLOWER
90
BLOWER MOTOR , Replaced By: A2048200208
100
BLOWER REGULATOR
100
BLOWER REGULATOR
110
COMBINATION FILTER WITH COVER
110
COMBINATION FILTER WITH COVER, Replaced By: A2048300518
110
COMBINATION FILTER WITH COVER, Replaced By: A2128300018
110
COMBINATION FILTER WITH COVER, Replaced By: A2128300218
110
COMBINATION FILTER WITH COVER, Replaced By: A2128300318
120
TEMPERATURE SENSOR EVAPORATOR
140
OPERATING LEVER PARTS KIT
140
OPERATING LEVER PARTS KIT
150
HOSE CONDENSED WATER DRAIN,LEFT, A 68137420120112 L 05596820111231 V 00423020111231 F 84733520120119 L 16781920120504
150
CONDENSATION HOSE CONDENSED WATER DRAIN,LEFT, F 84733620120119
160
HOSE CONDENSED WATER DRAIN,RIGHT
170
FITTING VENT
190
STEPPER MOTOR SERVOMOTOR
190
ELECTRIC MOTOR SERVOMOTOR
200
BRACKET FOR ACTUATOR MOTOR
230
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
240
SPRING
250
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
270
GROMMET HEATER CASE TO FIRE WALL
300
AUXILIARY HEATER
330
ELECT. LINE HEATER BOOSTER
350
HEAT EXCHANGER
400
PIPELINE PARTS KIT
410
SEAL FIRE WALL
430
EVAPORATOR
450
RETAINING PLATE EXPANSION VALVE, A 33977120020418 E 02000020070101
470
VALVE EXPANSION VALVE
470
VALVE PIPE LINE CONNECTION 18MM, A 33977120020418 E 02000020070101
480
SEAL RING FROM LIQUID TANK TO T-FITTING
480
O-RING HOSE TO EXPANSION VALVE 17X2
900
CABLE CONNECTOR PTC HEATER BOOSTER X85/8
904
RECEPTACLE HOUSING HEATED REAR WINDOW PANE PLUG-CONNECTION 2-PIN MCP6.3,X19
908
PIN BUSHING HOUSING INFRARED CONTROL MODULE FOR DRIVE AUTHORIZATION SYSTEM
