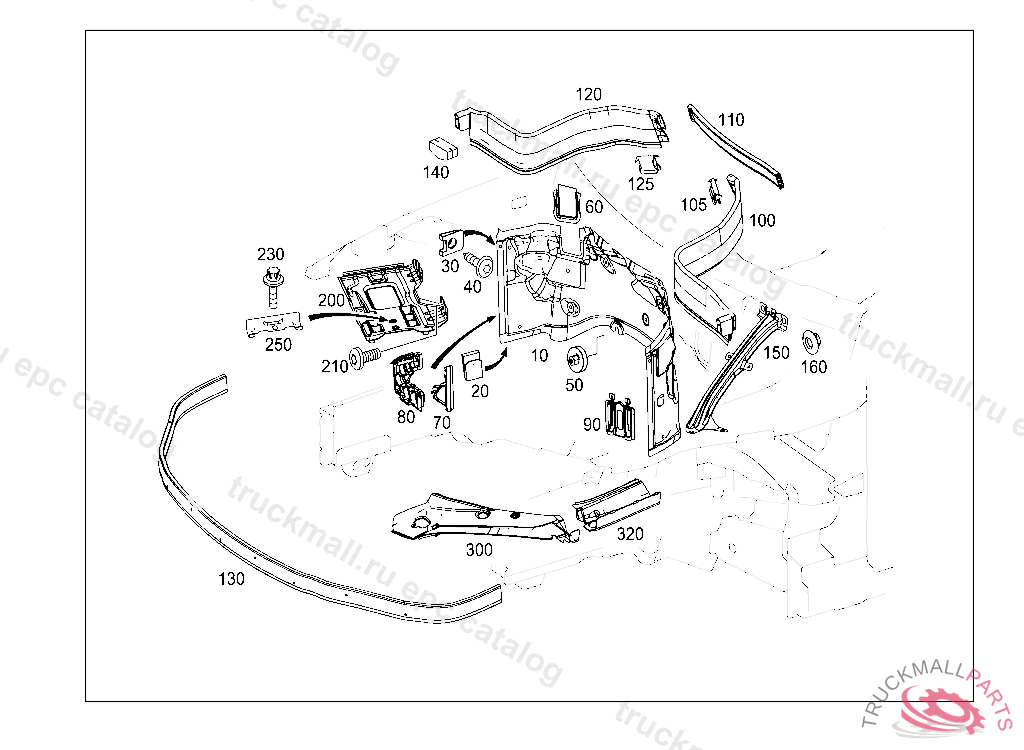

Поз.
Артикул
Описание
10
PARTITION PANEL CENTRAL, L 04401620101031 V 00307820101031 F 54753820100914
10
PARTITION CENTRAL, L 04401720101031 V 00307920101031 F 54753920100914 L 10000020090901
20
CLIP MOUNT, LOWER PARTITION WALL
30
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
40
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
50
CLIPS MOUNT, LOWER PARTITION WALL
60
PLUG GROMMET ON PARTITION PANEL,LEFT
70
BRACKET TO BOTTOM RIGHT PARTITION WALL
70
BRACKET TO BOTTOM RIGHT PARTITION WALL
80
BRACKET BOTTOM RIGHT
80
BRACKET BOTTOM RIGHT
100
SEAL PARTITION LEFT
105
CLIP SEAL AT PARTITION WALL
110
SEAL CENTRAL PARTITION PANEL
120
SEAL PARTITION RIGHT
125
CLIP SEAL AT PARTITION WALL
130
ENGINE HOOD SEAL ENGINE HOOD,FRONT
130
SEAL ENGINE HOOD,FRONT, Replaced By: A2048870298
140
SEAL ON SPRING TOWER
150
STRUT BETWEEN FIREWALL AND SPRING TOWER
160
GROMMET FOR STRUT
200
FRAME FOR BATTERY
210
HEXALOBULAR BOLT BATTERY FRAME M8X16
230
SCREW SPEED SENSOR TO REAR AXLE
250
RAIL BATTERY FASTENING
320
COVER ON LEFT LONGITUDINAL MEMBER
320
COVER ON RIGHT LONGITUDINAL MEMBER
