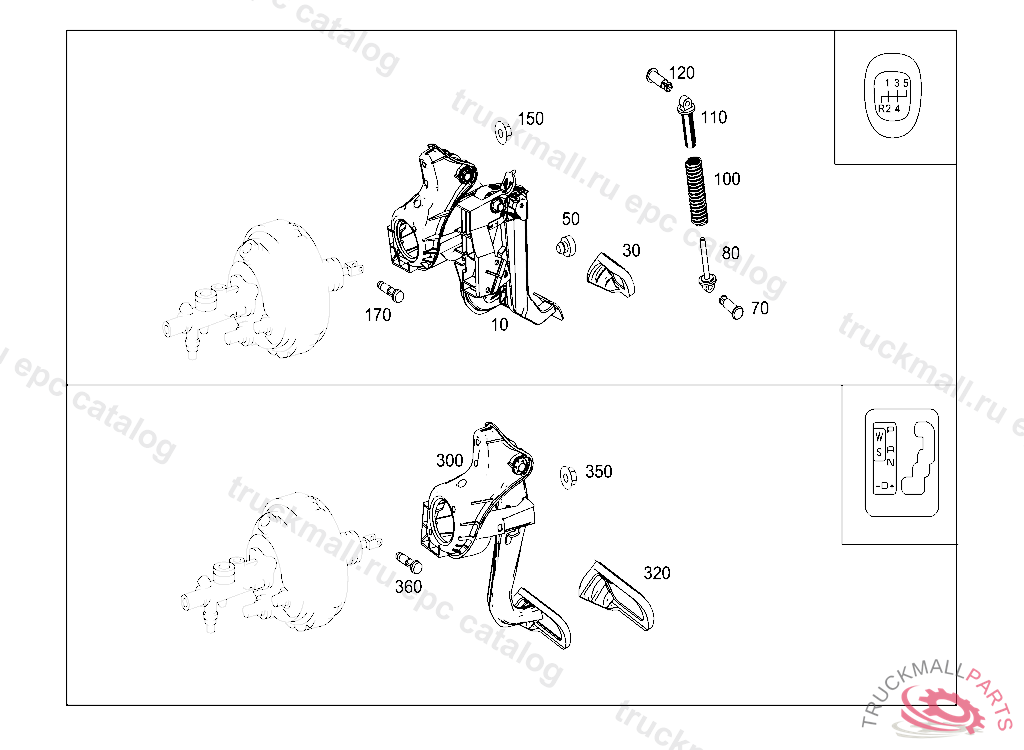

GLK 220 BLUETEC 4MATIC - 204.997 - 29 PEDAL ASSEMBLY
Поз.
Артикул
Описание
10
PEDAL , F 01529620070531
30
PEDAL COVER CLUTCH PEDAL
30
PAD CLUTCH PEDAL
30
PAD BRAKE PEDAL
30
PAD BRAKE PEDAL
50
STOP BUFFER CLUTCH PEDAL
50
STOP CLUTCH PEDAL
70
PIN SPRING RETAINER
80
ROD
110
SPRING RETAINER OVER-CENTER ACTING SPRING
120
PIN SPRING RETAINER
150
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
170
PIN BRAKE UNIT TO PEDAL ASSEMBLY
300
PEDAL ASSEMBLY , A 01762920070430 L 00000120070430 V 00000120070430 F 01529620070531 L 10000020081016
320
PAD BRAKE PEDAL
320
PAD BRAKE PEDAL
350
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
360
PIN BRAKE UNIT TO PEDAL ASSEMBLY
