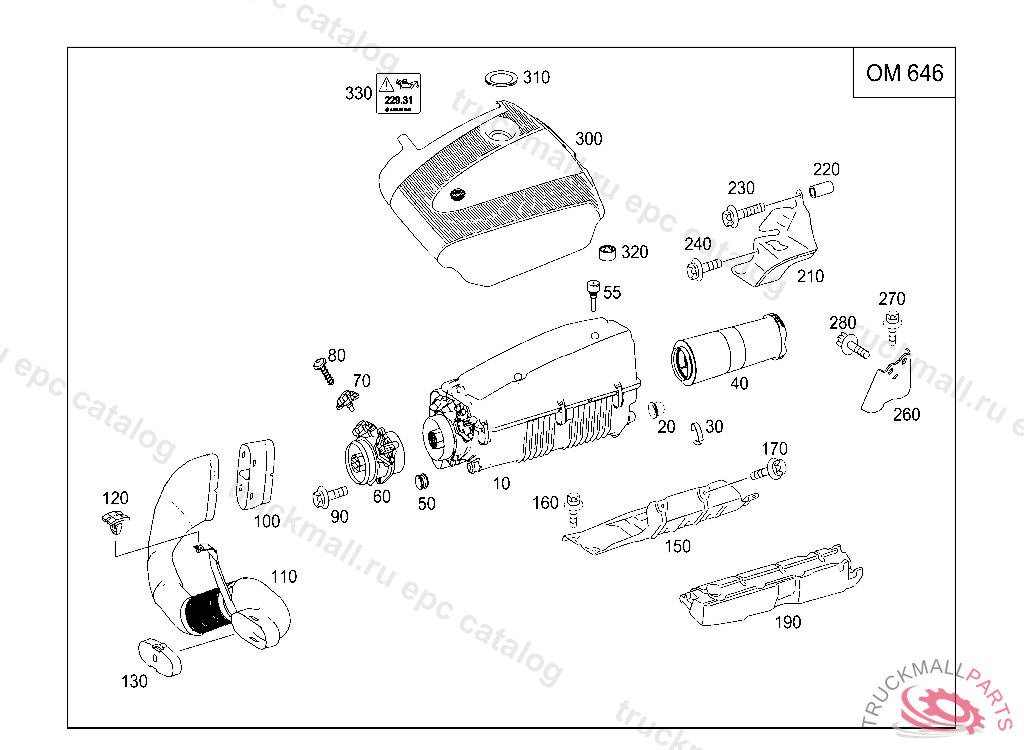

Поз.
Артикул
Описание
10
AIR FILTER
10
AIR FILTER
20
BEARING TO AIR FILTER HOUSING
20
BEARING RACE TO AIR FILTER HOUSING, Replaced By: A6460940222
30
CLAMPING BRACKET AIR CLEANER
40
FILTER ELEMENT
50
BEARING TO FRONT AIR FILTER HOUSING
55
RUBBER BUMPER IN HOUSING,TOP
60
AIR MASS SENSOR TO AIR FILTER HOUSING
70
PRESSURE SENSOR TO AIR FILTER HOUSING, Replaced By: A0061539728
70
PRESSURE SENSOR
70
SENDER UNIT
80
BOLT TO PRESSURE SENSOR
90
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
100
INTAKE LINE BETWEEN MUFFLER FILTER AND INTAKE PIPE
110
INTAKE PIPE BETWEEN COLD AIR SCOOP & MUFFLER FILTER
120
CATCH AIR INTAKE HOSE TO RADIATOR CROSSM.
130
COVER PIPE ELBOW
150
SCREENING AIR CLEANER HOUSING
160
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
170
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
190
COVER PLATE CYLINDER HEAD COVER
210
SCREENING ON ENGINE ABOVE EXHAUST MANIFOLD, A 67961020040528 F 58899820040610 R 15604320040701
220
SPACER TUBE BRACKET TO CONSOLE,LEFT
230
HEXALOBULAR BOLT SHIELD AND PRESSURE SENSOR AND SPACER SLEEVE TO REAR BRACKET M6X33
240
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
260
STRUT , A 97499920070630 F 95500020070630 R 26800020070630
270
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
280
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
300
COVER , Replaced By: A6460102367
300
COVER PLATE
310
SEAL RING
320
ELASTOMER BEARING MOUNTING, COVER 32MM
320
ELASTOMER BEARING MOUNTING, COVER 42MM
330
STICKER ON AIR CLEANER,FRONT 229.31
