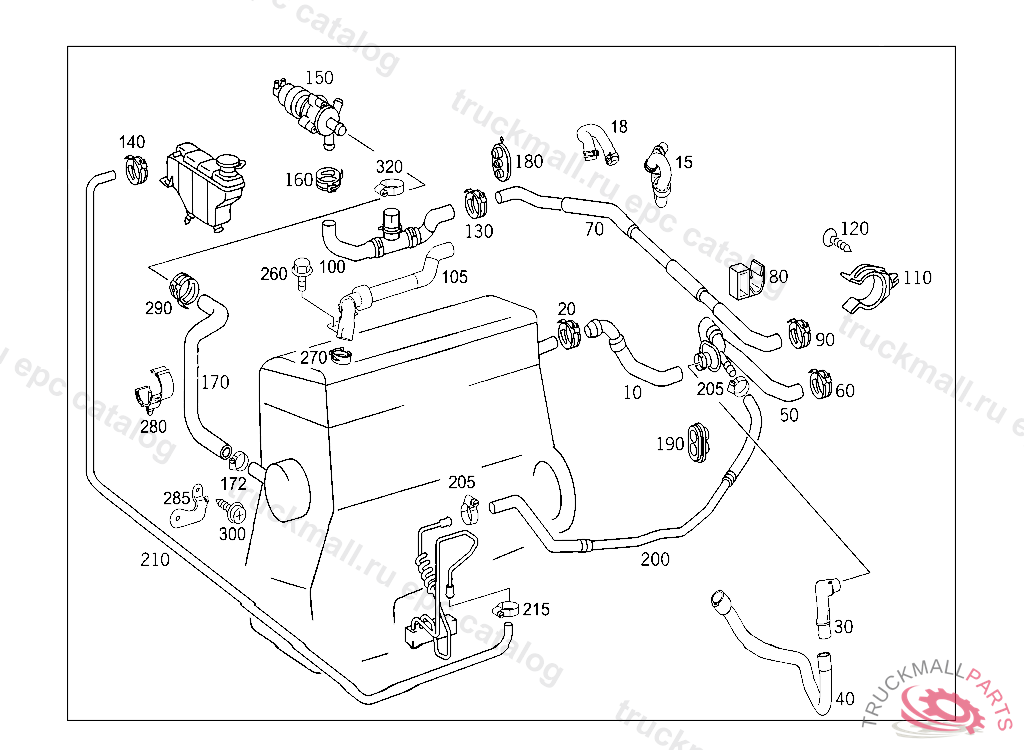

Поз.
Артикул
Описание
10
HOSE ENGINE TO CONNECTING POINT, PARTITION WALL
20
HOSE CLAMP HOSE ATTACHMENT 27 MM
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
60
CLAMP25 MM
70
PIPELINE FROM HEAT EXCHANGER TO WATER VALVE
70
PIPELINE FROM HEAT EXCHANGER TO WATER VALVE
80
FUSE. LOCK ACTIVATED CHARCOAL FILTER TO FUEL FILLER NECK, FROM MODEL YEAR '98
90
CLAMP25 MM
100
HOSE RESERVOIR
130
CLAMP25 MM
140
CLAMP HOSE FASTENING 28-35 MM,V 207570
150
CIRCULATION PUMP
150
CIRCULATION PUMP
160
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
160
CLAMP25 MM
170
HOSE FROM RECIRCULATING PUMP TO ENGINE
170
HOSE BETWEEN RECIRCULATING PUMP AND ENGINE
180
CABLE GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL, Replaced By: A0009984802
180
CABLE GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL
180
GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL, Replaced By: A0009983902
190
GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL
200
PIPELINE BYPASS LINE TO WATER VALVE
200
PIPELINE BYPASS LINE TO WATER VALVE
205
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
210
HOSE FROM RESERVOIR TO PUMP, E 02900020071206808
215
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
320
CLAMP25-40X13 MM
