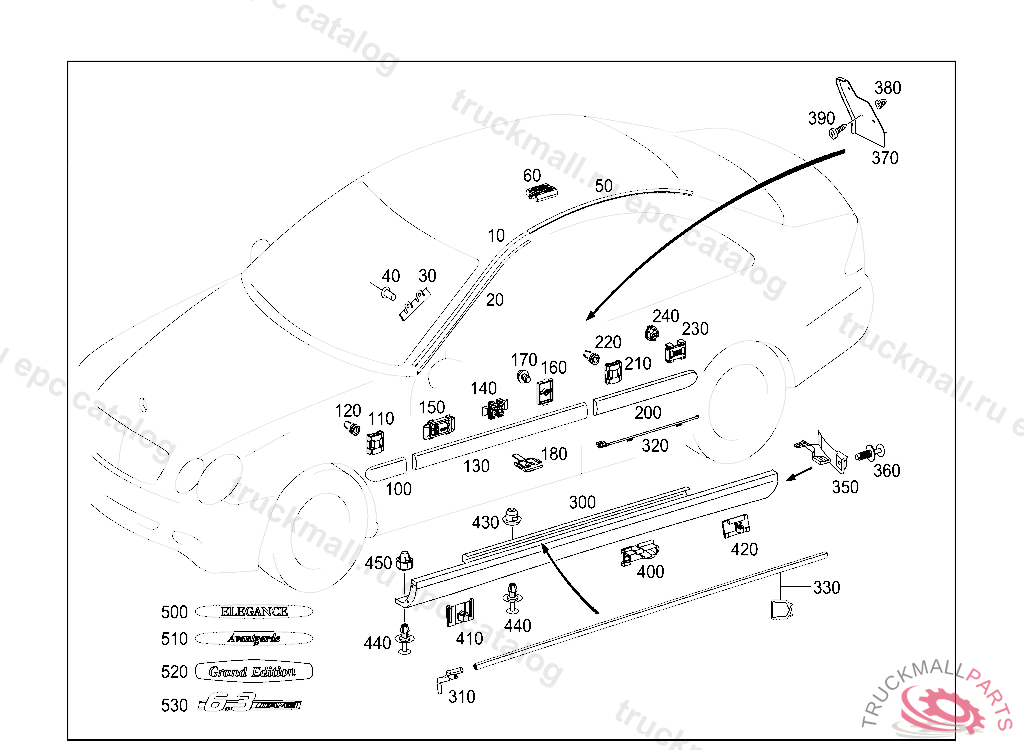

Поз.
Артикул
Описание
10
LEDGE A-PILLAR, OUTSIDE RIGHT
10
LEDGE A-PILLAR, OUTSIDE LEFT
20
SEAL RIGHT
20
SEAL LEFT
30
CLIP COVER ON WINDSHIELD
40
RIVET
50
ORNAMENTAL TRIM ROOF RAIL,RIGHT
50
ORNAMENTAL TRIM ROOF RAIL,LEFT
60
CLIP LEFT GARNISH MOULDING
100
LEDGE RIGHT FRONT FENDER
100
LEDGE LEFT FRONT FENDER
110
CLIP , A 97499920070630 E 06000020080801
120
FASTENER BUTTON
130
COVER STRIP LEFT CENTRAL DOOR
130
PROTECTIVE STRIP LEFT CENTRAL DOOR, 9999QFT209L9000 COLORLESS
130
PROTECTIVE STRIP CENTRAL RIGHT DOOR, 9999QFT209L9000 COLORLESS
130
COVER STRIP CENTRAL RIGHT DOOR
140
CLIP PROTECTIVE TRIM ON DRIVER DOOR, RIGHT 45.9 X 24.8 MM, E 02900020071206808
140
MOUNTING CLAMP SIDE PANEL,081762
150
CLIP PROTECTIVE TRIM ON DRIVER DOOR, LEFT, A 97499920070630809 E 06000020080801809
160
CLIP COVER STRIP FASTENER, A 97499920070630809 E 06000020080801809
170
SCREW
180
TRIM CLIP SCHUTZLEISTE RIGHT
200
LEDGE LEFT REAR FENDER
200
PROTECTIVE STRIP RIGHT REAR FENDER, 9999QFT209L9000 COLORLESS
200
PROTECTIVE STRIP LEFT REAR FENDER, 9999QFT209L9000 COLORLESS
200
LEDGE RIGHT REAR FENDER
210
CLIP , A 97499920070630 E 06000020080801
220
FASTENER BUTTON
230
CLIP UPPER PART
240
CLIP LOWER PART
300
PANELING LEFT SIDE MEMBER, TO BE PAINTED PRIOR TO INSTALLATION
300
PANELING LEFT SIDE MEMBER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT209L9000 COLORLESS
300
PANELING RIGHT SIDE MEMBER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT209L9000 COLORLESS
300
PANELING RIGHT SIDE MEMBER
300
PANELING RIGHT SIDE MEMBER, TO BE PAINTED PRIOR TO INSTALLATION
300
PANELING LEFT SIDE MEMBER
310
RIGHT SEAL RIGHT FRONT FENDER, F 13576220040810
310
LEFT SEAL LEFT FRONT FENDER, F 13576220040810
320
SEAL LEFT REAR FENDER
320
SEAL RIGHT REAR FENDER
330
SEAL LEFT
350
PANELING REAR RIGHT
350
PANELING REAR LEFT
360
RIVET COVERING TO SIDE MEMBER
370
ORNAMENTAL COVER REAR RIGHT
370
ORNAMENTAL COVER REAR LEFT
380
TREENAIL
390
BOLT ORNAMENTAL COVER TO DOOR 3.5X13
400
CLIP RIGHT PANELLING
410
CLIP ROCKER PANEL AT FENDER
420
CLIP COVERING TO FENDER,RIGHT
430
GROMMET AT LEFT SIDE MEMBER, BOTTOM 17,1 MM
430
GROMMET AT SIDE MEMBER,BOTTOM RIGHT 16,8 MM
440
EXPANSION RIVET ON TRIM,RIGHT
450
GROMMET LEFT
500
GUIDE SIGN
510
GUIDE SIGNAVANTGARDE
520
MODEL PLATE TO TRIM PANEL, LEFT GRAND EDITION
