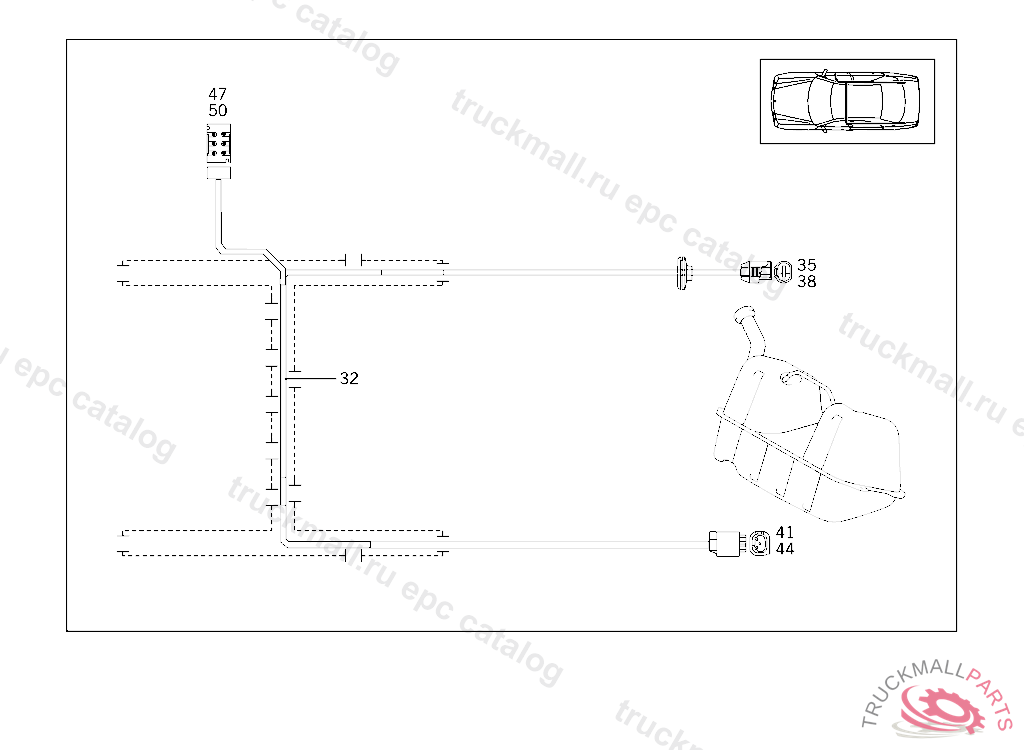

E 420 USA UP TO MODEL YEAR CODE 809 - 210.072 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

  • Поз.
    Артикул
    Описание
  • 32
    CABLE HARNESS PRESSURE SENDING UNIT, TANK
  • 35
    PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
  • 38
    CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
  • 41
    CLUTCH. PIN BUSHING HOUSING SIREN
  • 44
    CONTACT BUSHINGR 27, 0.75 MM2
  • 47
    PLUG CORRESPONDING CABLE HARNESS PLUGCONNECTION, A 290166 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM A 290167 WITH CODE 805
  • 50
    PLUG PIN0.5-2.0 MM2
