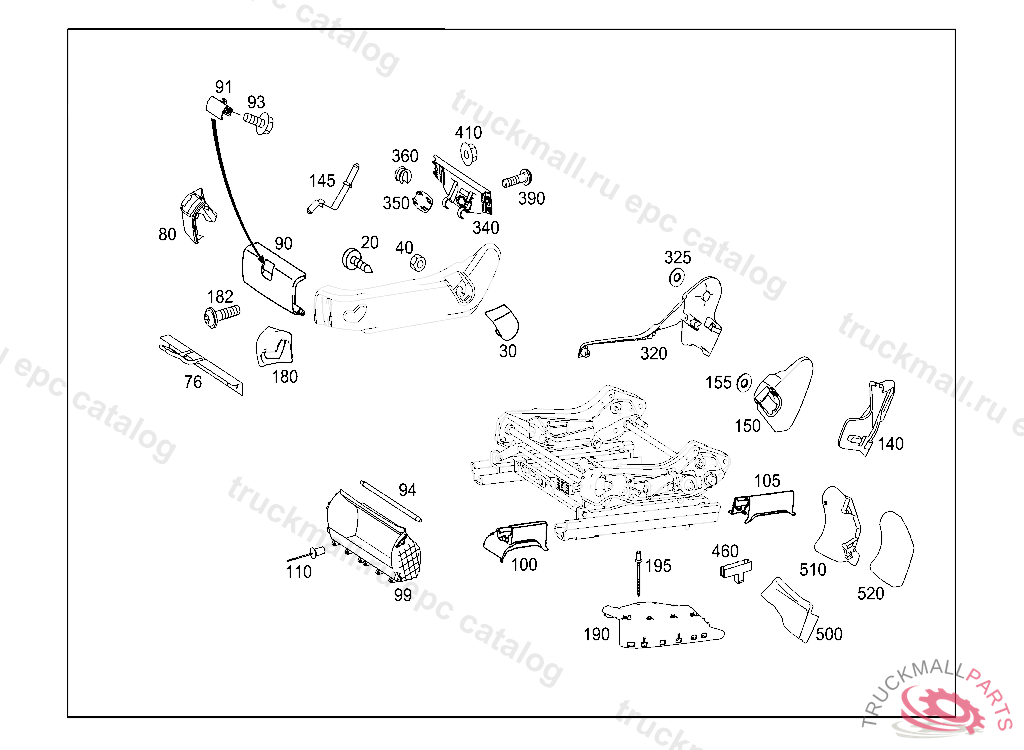

Поз.
Артикул
Описание
20
TAPPING SCREW BRACKET TO SUPPORT
20
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
30
COVER BELT FITTINGS, LEFT
30
COVER BELT END FITTINGS, RIGHT
40
NUT RELAY TO BRACKET M5
76
BRACKET FIRE EXTINGUISHER SUPPORT, LEFT
76
BRACKET FIRE EXTINGUISHER SUPPORT, RIGHT
80
COVER INSIDE FRONT, RIGHT SEAT
80
COVER INSIDE FRONT RIGHT
80
COVER INSIDE FRONT RIGHT
80
COVER INSIDE FRONT RIGHT
80
COVER INSIDE FRONT LEFT
80
COVER INSIDE FRONT, LEFT SEAT
80
COVER INSIDE FRONT, LEFT SEAT
80
COVER INSIDE FRONT LEFT
80
COVER INSIDE FRONT LEFT
80
COVER INSIDE FRONT, RIGHT SEAT
90
COVER CENTRAL FRONT LEFT
90
COVER FRONT CENTER, RIGHT SEAT
90
COVER CENTRAL FRONT RIGHT
91
LOCK RIGHT SEAT, 7C45QFT219A2025 DEEP GREY
91
LOCK LEFT SEAT, 7C45QFT219A2025 DEEP GREY
91
LOCK LEFT SEAT, 7C45QFT219A2025 DEEP GREY
93
SCREW
94
DOWEL PIN COVER TO SHELL
99
SHELL FIRE EXTINGUISHER SUPPORT, RIGHT
99
SHELL STORAGE COMPARTMENT, RIGHT
99
SHELL FIRE EXTINGUISHER SUPPORT, LEFT
99
SHELL LEFT STOWAGE COMPARTMENT
100
COVER OUTSIDE FRONT, LEFT SEAT
100
COVER INSIDE FRONT, RIGHT SEAT
100
COVER OUTSIDE FRONT, RIGHT SEAT
100
COVER INSIDE FRONT, LEFT SEAT
105
COVER OUTSIDE REAR, RIGHT SEAT
105
COVER INSIDE REAR, LEFT SEAT
105
COVER OUTSIDE REAR, LEFT SEAT
105
COVER INSIDE REAR, RIGHT SEAT
110
RIVET
140
EDGE GUARD
140
EDGE GUARD , NO LONGER AVAILABLE
145
RETAINING STRAP TO RIGHT LOWER BACKREST FRAME FITTING, RIGHT SEAT ADJUSTMENT
150
COVER REAR OUTSIDE LEFT
150
COVER REAR OUTSIDE RIGHT
155
PAD REAR COVERING
180
COVER FRONT OUTSIDE RIGHT
180
COVER FRONT OUTSIDE RIGHT
180
COVER FRONT OUTSIDE LEFT
180
COVER FRONT OUTSIDE LEFT
182
BOLT. SCREW (SENSOR CABLE) BRAKE WEAR INDICATOR, REAR,AXLE,LEFT AND RIGHT,V 207570
190
COVER LATERAL OUTSIDE RIGHT
190
COVER LATERAL OUTSIDE LEFT
195
RIVET
320
COVER INSIDE REAR RIGHT
320
COVER INTERIOR,REAR,LEFT
320
COVER INSIDE REAR RIGHT
320
COVER INSIDE REAR RIGHT
320
COVER INTERIOR,REAR,LEFT
320
COVER INTERIOR,REAR,LEFT
325
PAD REAR COVERING
340
COVER RIGHT SEAT
350
COVER RIGHT SEAT
360
BEARING REAR CENTRAL RIGHT, NO LONGER AVAILABLE
390
BOLT. SCREW (SENSOR CABLE) BRAKE WEAR INDICATOR, REAR,AXLE,LEFT AND RIGHT,V 207570
410
NUT RELAY TO BRACKET M5
460
HOUSING SEAT SEPARATION POINT CONNECTOR CARRIER
500
COVER RIGHT
500
COVER LEFT
510
COVER REAR BOTTOM, RIGHT SEAT
510
COVER OUTSIDE REAR
510
COVER OUTSIDE REAR, RIGHT
520
COVER INSIDE TOP RIGHT
