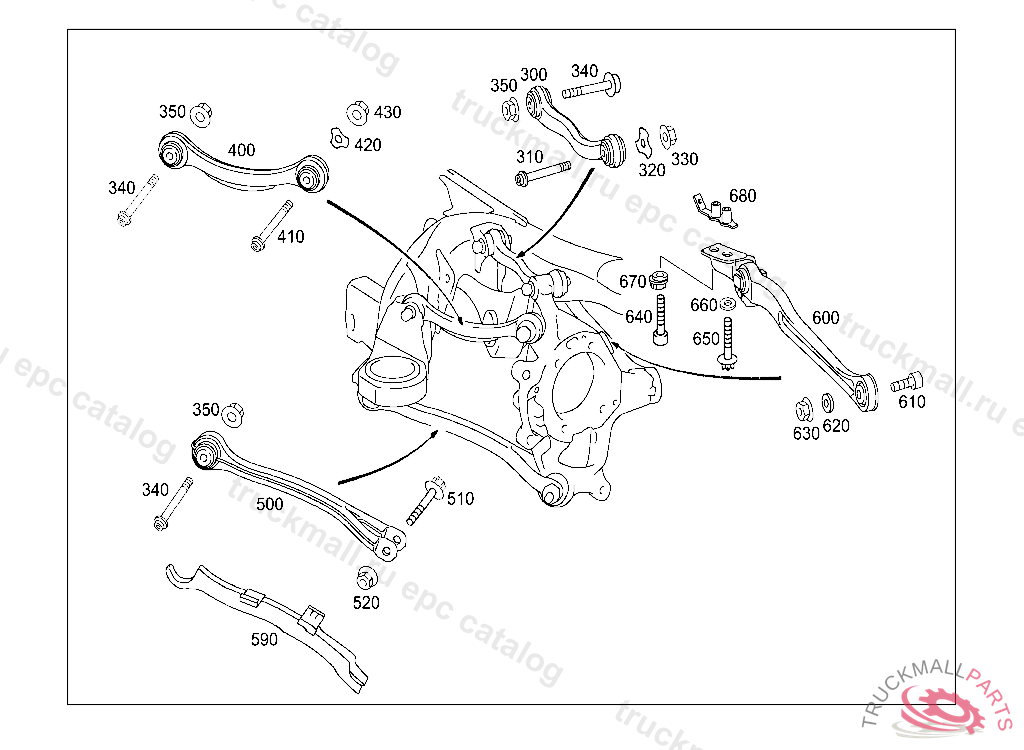

Поз.
Артикул
Описание
300
GUIDE CAMBER STRUT,LEFT
300
GUIDE CAMBER STRUT,LEFT
300
GUIDE CAMBER STRUT,RIGHT
300
GUIDE CAMBER STRUT,RIGHT
310
HEXAGON HEAD BOLT SHOCK ABSORBER TO CONSOLE,BOTTOM M12X1.5X80
310
BOLT CAMBER STRUTS TO WHEEL CARRIER
320
WASHER STRUT TO WHEEL BEARING
330
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
340
CAP BOLT W FLANGE THRUST ARM, CAMBER STRUT AND STRUT ON REAR SUBFRAME M14X1.5X65
340
BOLT THRUST ARM TO WHEEL BEARING
340
BOLT THRUST ARM TO WHEEL BEARING, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0029906705
350
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
400
GUIDE TENSION ROD RIGHT
400
GUIDE TENSION ROD RIGHT
400
GUIDE TENSION ROD LEFT
400
GUIDE TENSION ROD LEFT
410
BOLT CAMBER STRUTS TO WHEEL CARRIER
410
HEXAGON HEAD BOLT SHOCK ABSORBER TO CONSOLE,BOTTOM M12X1.5X80
420
WASHER STRUT TO WHEEL BEARING
420
WASHER THRUST ARM TO WHEEL BEARING TO A 220 350 31 06
430
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
430
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
500
GUIDE RIGHT THRUST ARM
500
GUIDE RIGHT THRUST ARM
510
BOLT THRUST ARM TO WHEEL BEARING
510
CAP BOLT W FLANGE THRUST ARM, CAMBER STRUT AND STRUT ON REAR SUBFRAME M14X1.5X65
510
BOLT THRUST ARM TO WHEEL BEARING, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0029906705
520
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
590
COVER THRUST ARM
600
THRUST ARM RIGHT TRACK ROD
600
THRUST ARM TRACK ROD LEFT
610
SCREW BEARING BRACKET TO CONSOLE
620
WASHER DUMPING PLATFORM MOUNTING
630
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
640
BOLT TIE ROD TO REAR SUBFRAME
650
BOLT TIE ROD TO REAR SUBFRAME
660
WASHER TIE ROD TO REAR SUBFRAME
670
PLATE PACKAGE TIE ROD TO REAR SUBFRAME
680
NUT TIE ROD TO REAR SUBFRAME
