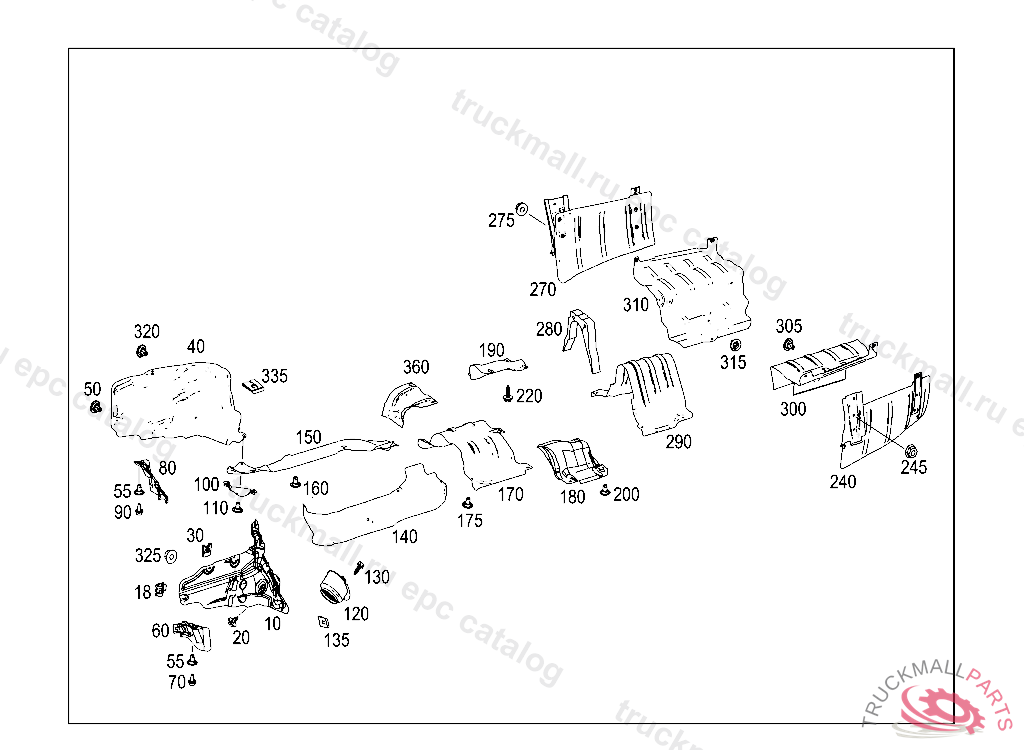

Поз.
Артикул
Описание
10
SCREENING LEFT SIDE MEMBER
20
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
30
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
40
SCREENING RIGHT SIDE MEMBER
50
HEXAGON NUT W COLLAR BRACKET MOUNTING
55
HEXAGON NUT W COLLAR BRACKET MOUNTING
60
SCREENING FIRE WALL, LEFT
70
SCREW
80
SCREENING FIRE WALL,RIGHT
90
SCREW
100
SCREENING FRONT PANEL TO BATTERY SUPPORT
110
HEXAGON NUT W COLLAR BRACKET MOUNTING
140
SCREENING FLOOR,LEFT
150
SCREENING MAIN FLOOR,ON THE RIGHT
160
HEXAGON NUT W COLLAR BRACKET MOUNTING
170
SCREENING OVER CATALYST
170
SCREENING OVER CATALYST
175
HEXAGON NUT W COLLAR BRACKET MOUNTING
180
SCREENING LEFT, BRAKE CABLE COMPENSATOR
180
SCREENING LEFT, BRAKE CABLE COMPENSATOR
190
SCREENING RIGHT, BRAKE CABLE COMPENSATOR
190
SCREENING RIGHT, BRAKE CABLE COMPENSATOR
200
HEXAGON NUT W COLLAR BRACKET MOUNTING
220
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
240
SCREENING REAR MUFFLER LEFT
245
NUT , Replaced By: N913023006001
270
SCREENING REAR MUFFLER RIGHT
275
NUT , Replaced By: N913023006001
290
SCREENING CENTRAL MUFFLER
290
SCREENING CENTRAL MUFFLER
300
SCREENING REAR MUFFLER, LEFT, INSIDE
305
HEXAGON NUT W COLLAR BRACKET MOUNTING
310
SCREENING REAR MUFFLER RIGHT, INSIDE
315
HEXAGON NUT W COLLAR BRACKET MOUNTING
