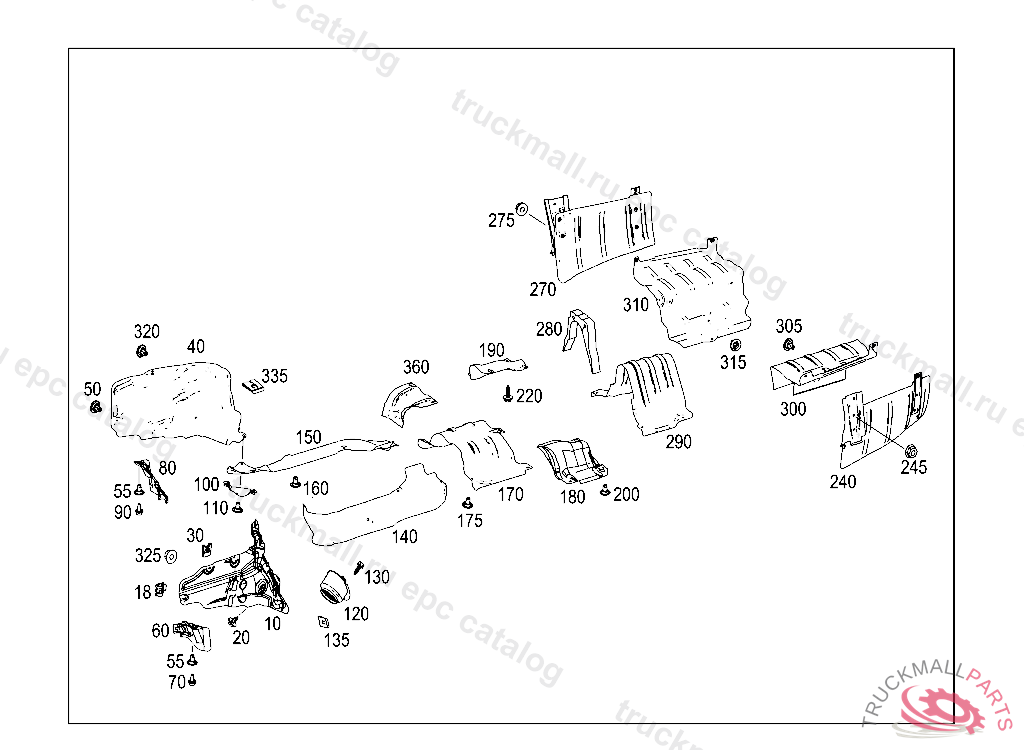

Поз.
Артикул
Описание
10
SHIELDING LEFT SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
10
SCREENING FRAME-TYPE INTEGRAL SUPPORT,LEFT
10
SCREENING LEFT SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
18
CLIP OXYGEN SENSOR
20
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
30
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
40
SCREENING RIGHT SIDE MEMBER
40
SCREENING RIGHT SIDE MEMBER
50
HEXAGON NUT W COLLAR BRACKET MOUNTING
60
SCREENING FIRE WALL, LEFT
70
SCREW
80
SCREENING FIRE WALL,RIGHT
90
SCREW
100
SCREENING FRONT PANEL TO BATTERY SUPPORT
110
HEXAGON NUT W COLLAR BRACKET MOUNTING
120
SCREENING LEFT STEERING COUPLING
130
TAPPING SCREW STEERING-JOINT BOOT COVER 4.8X9.5
135
LOCK RIGHT PANELLING TO SIDE MEMBER
140
SCREENING FLOOR,LEFT
150
SCREENING MAIN FLOOR,ON THE RIGHT
160
HEXAGON NUT W COLLAR BRACKET MOUNTING
170
SCREENING OVER CATALYST
170
SCREENING OVER CATALYST
175
HEXAGON NUT W COLLAR BRACKET MOUNTING
180
SCREENING LEFT, BRAKE CABLE COMPENSATOR
180
SCREENING LEFT, BRAKE CABLE COMPENSATOR
190
SCREENING RIGHT, BRAKE CABLE COMPENSATOR
190
SCREENING RIGHT, BRAKE CABLE COMPENSATOR
200
HEXAGON NUT W COLLAR BRACKET MOUNTING
220
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
240
SCREENING REAR MUFFLER LEFT
245
NUT , Replaced By: N913023006001
270
SCREENING REAR MUFFLER RIGHT
275
NUT , Replaced By: N913023006001
290
SCREENING CENTRAL MUFFLER
290
SCREENING CENTRAL MUFFLER
300
SCREENING REAR MUFFLER, LEFT, INSIDE
305
HEXAGON NUT W COLLAR BRACKET MOUNTING
310
SCREENING REAR MUFFLER RIGHT, INSIDE
315
HEXAGON NUT W COLLAR BRACKET MOUNTING
