Поз.
Артикул
Описание

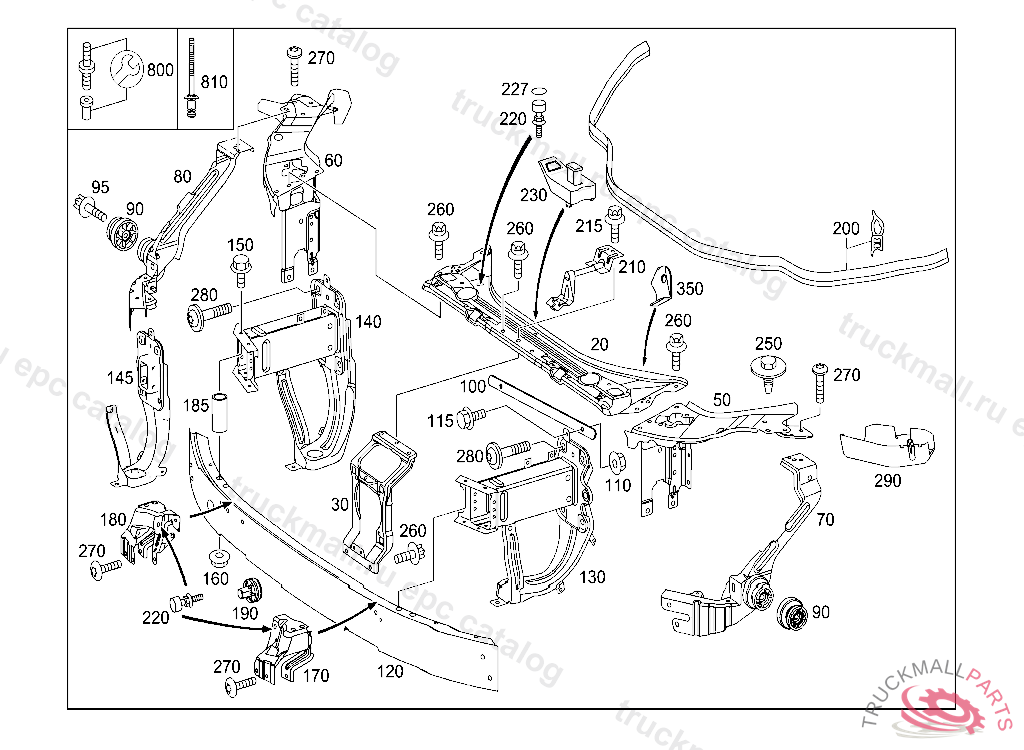

20
REINFORCEMENT FRONT CENTER TOP
30
REINFORCEMENT FRONT CENTRAL
30
STIFFENING SAFETY CATCH, B 14368120070307 L 00917520070228
30
REINFORCEMENT SAFETY CATCH, B 14368020070307 L 00917420070228
50
REINFORCEMENT LEFT TOP
60
REINFORCEMENT RIGHT TOP
70
FRAME LEFT OUTSIDE
80
FRAME RIGHT OUTSIDE
90
GUIDE RIGHT
95
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
100
STRUT CRASH BOX
110
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
115
SCREW PUMP TO BRACKET
120
CROSS MEMBER FRONT
120
CROSS MEMBER , Replaced By: A2116202834
130
ABSORBER LEFT
130
ABSORBER LEFT
140
ABSORBER RIGHT
140
ABSORBER RIGHT
145
CONSOLE RADIATOR MOUNT, RIGHT
145
CONSOLE RADIATOR MOUNT, LEFT
150
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
160
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
170
CONSOLE LEFT
170
CONSOLE LEFT
180
CONSOLE RIGHT
180
CONSOLE RIGHT
185
INTERMEDIATE PIECE ABSORBER TO CROSSMEMBER
190
NUT AT INTERMEDIATE PIECE
200
SEAL ENGINE COMPARTMENT
210
SAFETY HOOK BOTTOM
215
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
220
BUFFER LEFT, FROM CHASSIS: 010 077937
227
INTERMEDIATE LAYER REAR LID STOP 22 MM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 23247820061012, Replaced By: A1698891295
230
COVER SPRING MOUNT
250
BOLT BRACKET TO FENDER M6X18
260
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
270
SCREW BRACKET TO COVERING
280
BOLT FRONT MODULE TO LONGITUDINAL MEMBER BOTTOM M10X22.5
290
COVER THIEVERY PROTECTION HOOD LOCK COVER
290
COVER THIEVERY PROTECTION HOOD LOCK COVER
350
BRACKET TO MAIN STOP BUFFER SCREWED CONNECTION LEFT
350
CABLE HOLDER TO MAIN STOP BUFFER SCREWED CONNECTION LEFT
800
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
810
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
