Поз.
Артикул
Описание

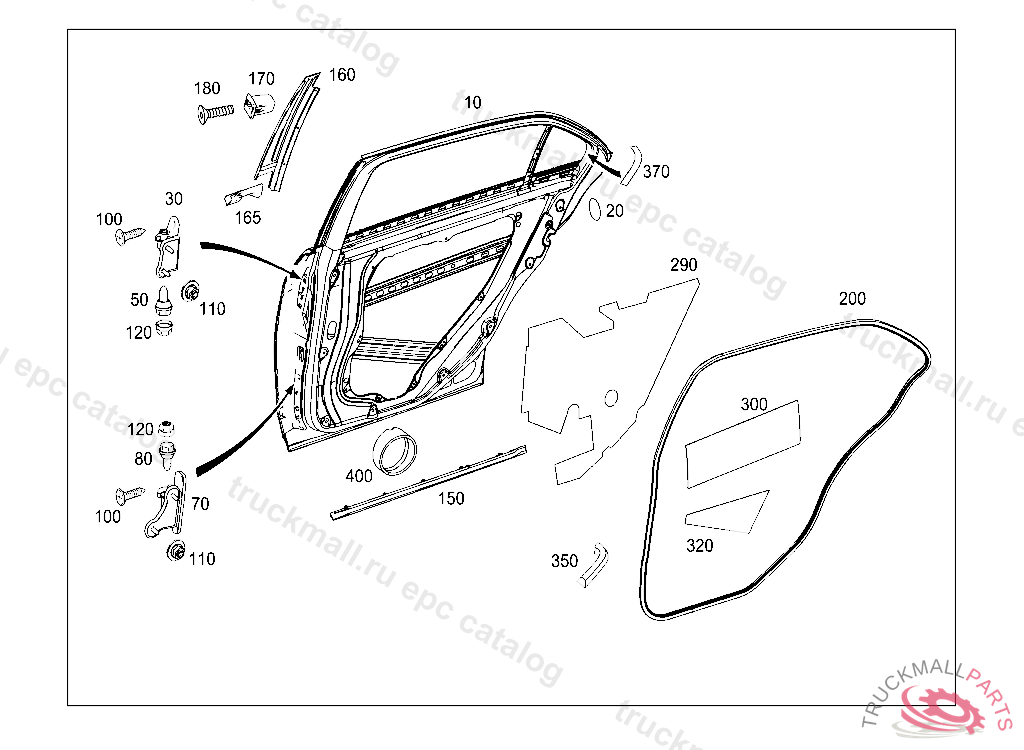

10
REAR DOOR RIGHT
10
REAR DOOR LEFT
10
REAR DOOR LEFT
10
REAR DOOR RIGHT
20
PLUG TO BODY 10 MM, J 78221020091022
30
HINGE TOP RIGHT
30
HINGE TOP LEFT
50
BOLT W FLANGE HINGE TO A-PILLAR LEFT
70
HINGE BOTTOM RIGHT, F 27848620081019
70
HINGE BOTTOM LEFT, A 23712620081021 L 02014320081031 V 00090120081031 F 27848620081019 L 10000020090901
80
BOLT W FLANGE HINGE TO A-PILLAR LEFT
100
BOLT HINGE TO LEFT DOOR M8X35
110
MULTIPLE NUT FOR HINGE TO B-PILLAR AT LEFT M8
120
CAP TO RIGHT DOOR HINGE SCREW
160
ORNAMENTAL COVER B-PILLAR OUTSIDE RIGHT
160
ORNAMENTAL COVER B-PILLAR OUTSIDE LEFT
165
PANEL BETWEEN DECORATIVE STRIP ANDRIGHTB-PILLAR
165
PANEL BETWEEN DECORATIVE STRIP AND LEFTB-PILLAR
170
BODY-BOUND NUT CONTROL UNIT FIXTURE
180
SCREW PLATE AT HANDLE, J 47509420000815
200
CIRCUMFERENTIAL DOOR SEAL LEFT DOOR SEAL, TO BE ADAPTED DURING ASSEMBLY
290
INSULATION REAR DOOR
300
ABSORBING DOOR RIGHT CORNER PIECE 40X24MM
300
INSULATION AT RIGHT PANELING 40X20MM
300
ABSORBING DOOR LEFT CORNER PIECE 40X24MM
300
INSULATION AT LEFT PANELING 500X100MM, TO BE ADAPTED DURING ASSEMBLY
320
SOUNDPROOFING AT RIGHT PANELING
320
SOUNDPROOFING AT LEFT PANELING
370
SEALING FILM REAR WINDOW FRAME, LEFT
400
MOLDED PIECE RIGHT FRONT DOOR
