Поз.
Артикул
Описание

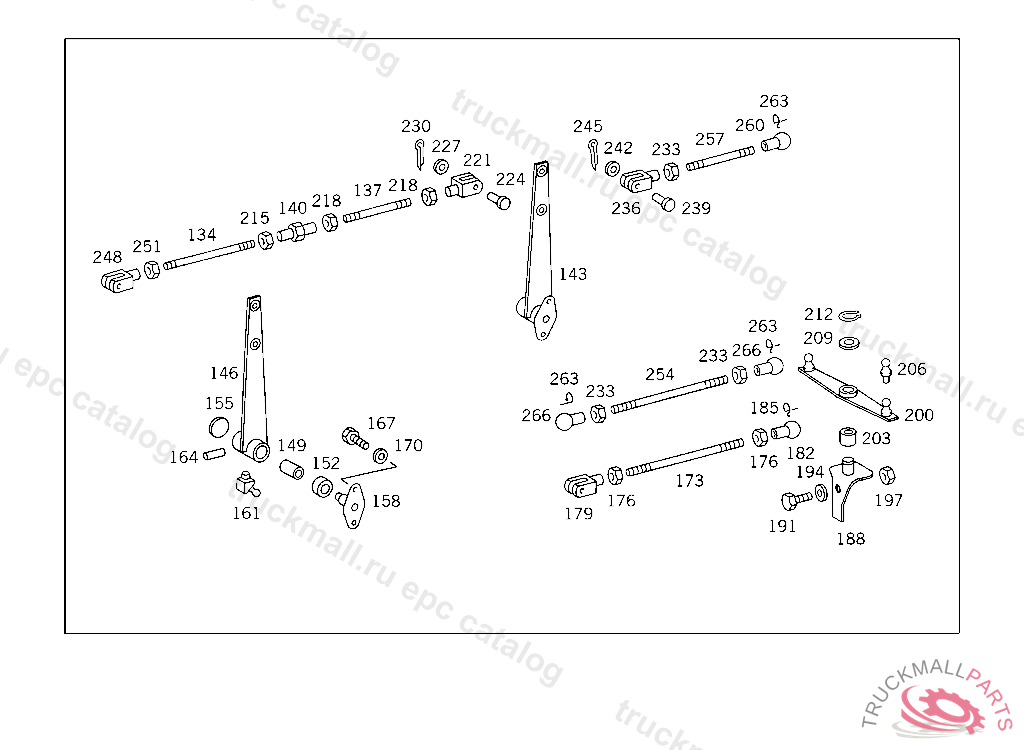

134
PULL ROD FROM DOUBLE LEVER TO TURNBUCKLE
137
PULL ROD FROM INTERMEDIATE LEVER TO CONTROL LEVER
140
NUT FRONT SHIFTING ROD
143
LEVER (INTERMEDIATE LEVER)
146
LEVER
149
BUSHING ,950252
152
SEAL RING
155
EXPANSION PLUG
158
PIN INTERMEDIATE LEVER
161
GREASE NIPPLE
164
CYLINDRICAL PIN
167
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
170
WASHER TRAILER PLUG SOCKET TO BRACKET
215
NUT L.H. THREAD
218
NUT
221
YOKE OPERATING ROD TO BRACKET
224
PIN PULL ROD TO LEVER
227
WASHER LINE TO CROSS AND SIDE MEMBERS
230
COTTER PIN ROLLER TO LEVER
233
NUT
236
YOKE OPERATING ROD TO BRACKET
239
PIN PULL ROD TO LEVER
242
WASHER LINE TO CROSS AND SIDE MEMBERS
245
COTTER PIN ROLLER TO LEVER
248
YOKE OPERATING ROD TO BRACKET
251
NUT
257
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE
260
BALL SOCKET AT CONTROL LEVER
263
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
