Поз.
Артикул
Описание

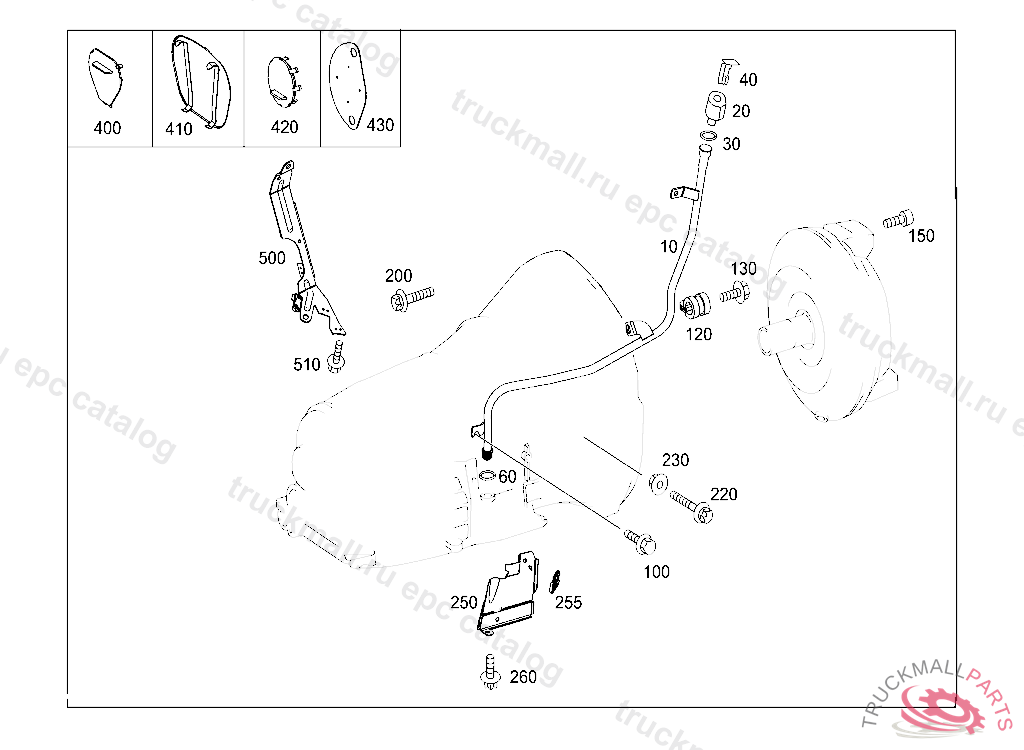

20
COVER OIL FILLER PIPE
30
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
40
DOWEL PIN OIL FILLER PIPE
60
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
100
HEXAGON HEAD BOLT
120
MOUNTING CLAMP OIL FILLER TO ENGINE
130
HEXAGON HEAD BOLT
150
SCREWM 8X18
150
CAPSCREW W HEXAL. DRIVE DRIVE CONNECTION, ENGINE TO CONVERTER M8X21,5
200
SCREW PLATE TO FRAME M 10X45
220
HEXALOBULAR BOLT P.T.O. TO TRANSMISSION M10X90
230
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
250
SCREENING PLATE AT TRANSMISSION CASE
250
SCREENING PLATE AT TRANSMISSION CASE, A 38522920100226 L 03616920091130 V 00202920091130 F 45787320091213 L 10798620100225
250
COVER TRANSMISSION CASE AND OIL PAN
260
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
260
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
400
CAP CAP ASSEMBLY OPENING IN OIL PAN
430
COVER FOR STARTER EYE
