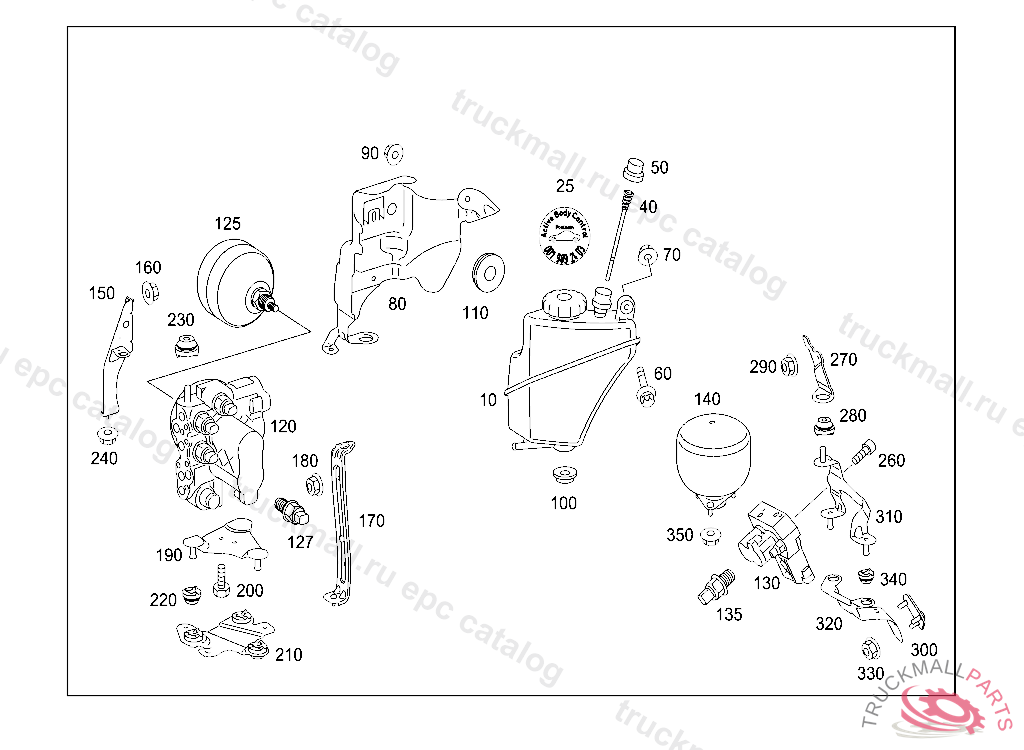

Поз.
Артикул
Описание
10
OIL TANK ABC SUSPENSION (ACTIVE BODY CONTROL)
25
GUIDE SIGN OIL TANK
40
OIL DIPSTICK ABC RESERVOIR
50
PROTECTIVE CAP
60
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
70
NUT BRACKET TO BODY SHELL M6
80
PROTECTIVE PLATE AT WHEEL ARCH
80
SHIELDING AT WHEEL ARCH, Replaced By: A2213270186
90
NUT BRACKET TO BODY SHELL M6
100
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
110
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
120
VALVE UNIT FRONT AXLE
120
VALVE UNIT FRONT AXLE, Replaced By: A2213200958
125
PRESSURE ACCUMULATOR FRONT AXLE
127
PRESSURE SENSOR FRONT AXLE, A 02654220100930801
127
SENDER UNIT FRONT AXLE, A 02868220110630802
130
VALVE UNIT REAR AXLE, A 02868220110630802
130
VALVE UNIT REAR AXLE, A 02654220100930801
135
PRESSURE SENSOR FRONT AXLE, A 02654220100930801
135
SENDER UNIT FRONT AXLE, A 02868220110630802
140
PRESSURE ACCUMULATOR REAR AXLE
150
PLATE TO LONGITUDINAL MEMBER FRONT
160
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
160
NUT MOUNTING PLATE TO SIDE MEMBER, Replaced By: N000000003175
170
BRACKET FRONT LEFT
180
NUT BRACKET TO BODY SHELL M6
190
BRACKET VALVE UNIT FASTENING
200
HEXAGON HEAD BOLT LINE MOUNTING M6X10
210
PLATE FRONT VALVE UNIT, TO MOUNTING PLATE
220
INTERMEDIATE BEARING , F 53236820100411MF 502825
230
INTERMEDIATE BEARING , F 53236820100411MF 502825
240
NUT BRACKET TO BODY SHELL M6
260
HEXAGON HEAD BOLT LINE MOUNTING M6X10
270
BRACKET REAR LEFT
280
INTERMEDIATE BEARING , F 53236820100411MF 502825
290
NUT BRACKET TO BODY SHELL M6
300
PLATE TO BODY
310
PLATE REAR VALVE UNIT
320
BRACKET VALVE UNIT FASTENING
330
NUT BRACKET TO BODY SHELL M6
340
INTERMEDIATE BEARING , F 53236820100411MF 502825
350
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
