Mercedes A1685453028 - Корпус разъема

CL 500 BlueEFFICIENCY 216.373

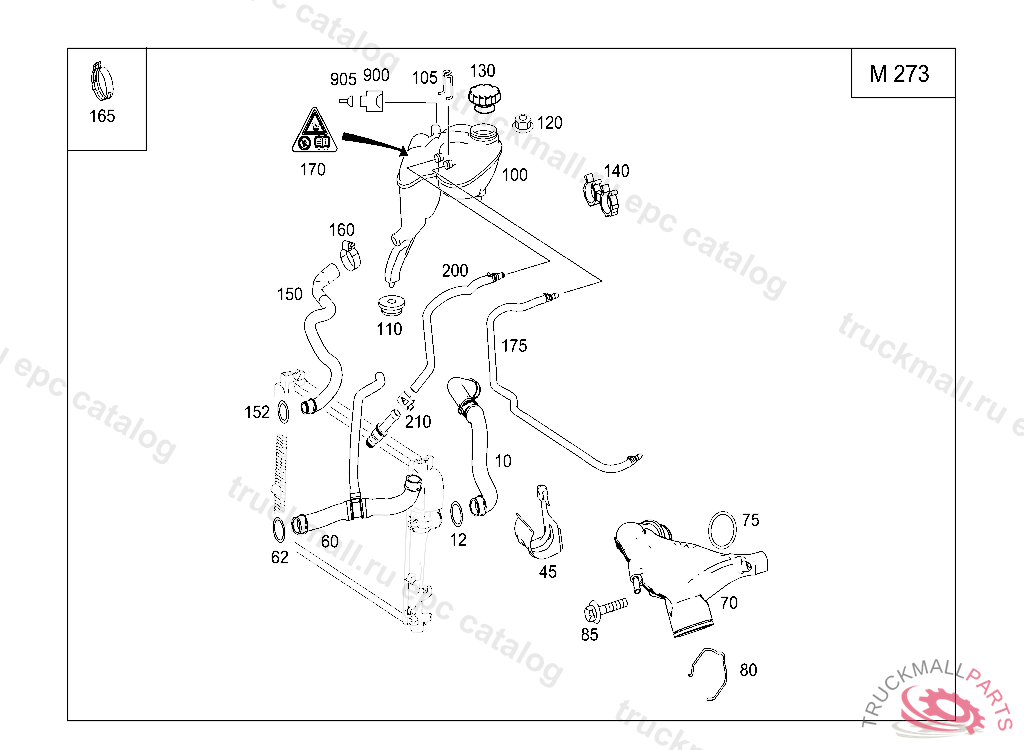

50 RADIATOR - 165 EXPANSION TANK,MOUNTING AND HOSES IL. 1

Поз.
Артикул
Описание
100
A2215000349
DASHPOT COOLING WATER EXPANSION TANK
105
A0079934001
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
110
A2015040112
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
120
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
130
A2105010615
CLOSING COVER
140
A0019952765
CLAMP14-16 MM
160
A0009954565
CLAMP HOSE TO HOSE
160
A0069974290
CLAMP HOSE FASTENING 28-35 MM,V 207570
160
A1109950165
CLAMP HOSE TO HOSE 20 MM
170
A0005840807
PLATE ON COMPENSATION RESERVOIR
210
A1409950405
CLAMP14 MM
900
A1685453028
PIN BUSHING HOUSING COOLANT LEVEL SWITCH 2-PIN COD.B,SLK2.8,S41
905
A0005403805
REP.SET CONTACT0.75 MM2 SLK2.8, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
