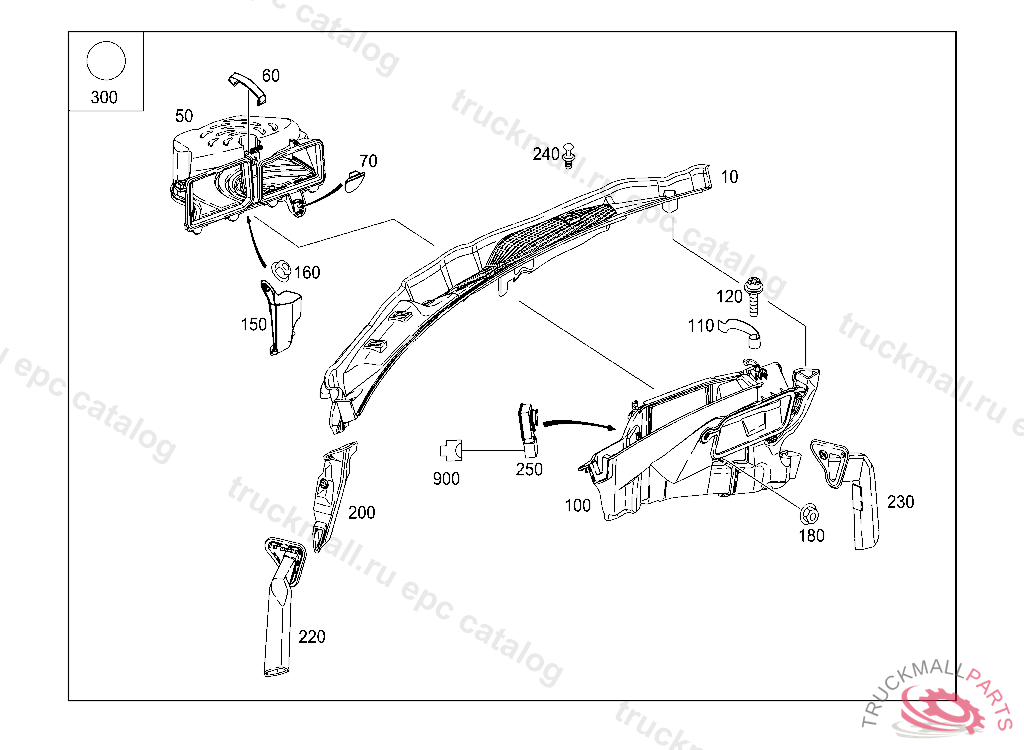

CLS 350 BLUETEC - 218.326 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
10
COVER AIR INLET
10
COVER AIR INLET
50
HOUSING AIR INTAKE, Replaced By: A2128302200
50
HOUSING AIR INTAKE
50
HOUSING AIR INTAKE AIR INTAKE
60
CLIP
70
VALVE AT HOUSING
100
AIR DUCT AT FIRE WALL
100
AIR DUCT AT FIRE WALL
110
CLIP
120
BOLT CONTACT PLATE FASTENER M5X10
150
FITTING FRONT
150
FITTING FRONT
160
NUT-AND-WASHER ASSEMBLY BRACKET TO FLOOR M6
180
NUT-AND-WASHER ASSEMBLY BRACKET TO FLOOR M6
200
FITTING RIGHT
200
FITTING LEFT
220
FITTING LEFT BOTTOM
230
FITTING RIGHT BOTTOM
240
RIVET ON CAB FLOOR UNDER STEP
250
SENSOR GASEOUS POLLUTANT SENSOR
300
ADHESIVE TAPE PIPING
900
PIN BUSHING HOUSING. PLUG SOCKET SENSOR TO WHEEL HOUSING,3-POLE
