Поз.
Артикул
Описание

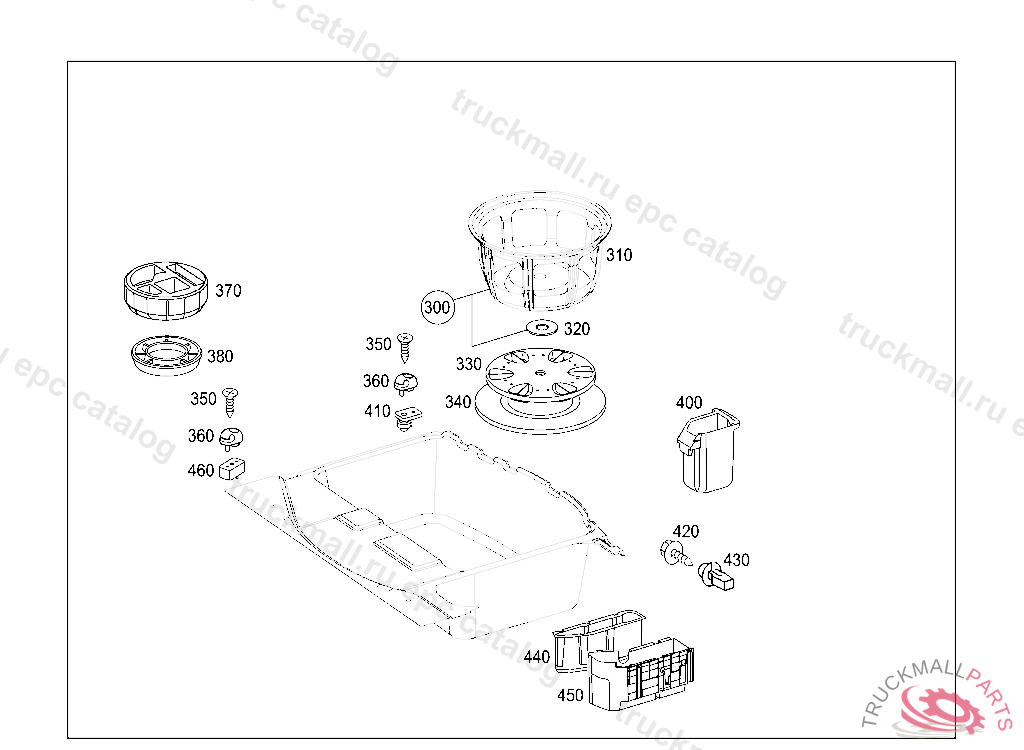

300
BRACKET SPARE WHEEL CARRIER IN LOADING COMPARTMENT
310
BRACKET SPARE WHEEL CARRIER, 9051QFT219A0361 BLACK
320
PAD
330
BRACKET SPARE WHEEL CARRIER IN LOADING COMPARTMENT
330
BRACKET SPARE WHEEL
340
PAD SPARE WHEEL CARRIER
350
SHEET METAL SCREW AIR BAFFLE TO AIR DUCT 4.2X25
360
LOCK LUGGAGE NET
370
TAKE-UP DEVICE TOOLS
380
SHIM TAKE-UP DEVICE
400
SHELL LEFT
410
BRACKET FOR LUGGAGE NET HOOKS TO REAR LONGITUDINAL MEMBER
420
BOLT BUMPER MOUNTING BELOW REAR PANEL DOOR 5X21
430
TREENAIL BUMPER ON FENDER
440
BRACKET TIREFIT
450
BRACKET JACK FIXTURE, A 13230220071130
450
BRACKET JACK FIXTURE, A 13230220071130
460
BRACKET FOR LUGGAGE NET HOOKS TO FRONT LONGITUDINAL MEMBER
