Поз.
Артикул
Описание

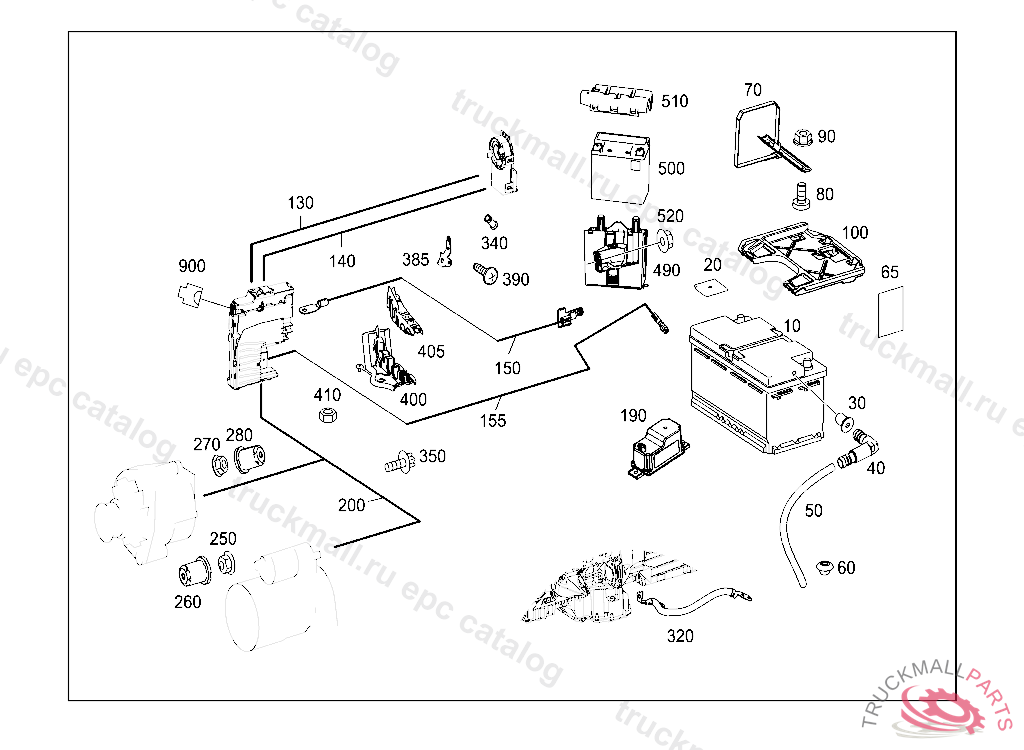

10
STARTER BATTERY IN ENGINE COMPARTMENT 12V/78AH
10
STARTER BATTERY IN ENGINE COMPARTMENT
20
BOOT POS. POLE
50
HOSE , ORDER BY THE METER
60
STOP PLUG TOP CENTER 11 MM
65
ADHESIVE TAPE PIPING
70
RETAINING STRAP FOR BATTERY IN REAR END
80
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
90
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
100
BATTERY FRAME REAR LEFT
100
BATTERY FRAME REAR LEFT
130
ELECTRICAL WIRING HARNESS FROM TERMINAL BLOCK TO PREFUSE BOX X4/53 - F32/3
130
ELECTRICAL WIRING HARNESS
140
ELECTRICAL WIRING HARNESS FROM STARTING MOTOR TO BATTERY POS. POLE
140
ELECTRICAL WIRING HARNESS FROM STARTING MOTOR TO BATTERY POS. POLE
150
ELECTRICAL WIRING HARNESS BATTERY POSITIVE TERMINAL TO PREFUSE BOX
150
ELECTRICAL WIRING HARNESS BATTERY POSITIVE TERMINAL TO PREFUSE BOX
155
ELECTRICAL WIRING HARNESS FROM BATTERY TO FUSE BOX
155
ELECTRICAL WIRING HARNESS FROM BATTERY TO FUSE BOX
190
VOLTAGE CONVERTER VOLTAGE TRANSFORMER
200
ELECTRICAL WIRING HARNESS STARTING MOTOR,ALTERNATOR
200
ELECTRICAL WIRING HARNESS STARTING MOTOR,ALTERNATOR
250
NUT , Replaced By: N913023006001
250
NUT CABLE TO ALTERNATOR,TERMINAL 30
260
PROTECTIVE CAP. BOOT NUT , M8
270
NUT CABLE TO ALTERNATOR,TERMINAL 30
280
PROTECTIVE CAP. BOOT NUT , M8
320
ELECTRICAL WIRING HARNESS ENGINE GROUND LINE
320
ELECTRICAL WIRING HARNESS GROUND LINE FRONT END/BODY
340
JUMP-START CHARGING POINT JUMP-STARTING POINT
350
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
350
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
350
HEXALOBULAR BOLT COVER PANEL FASTENING M8 X 16
385
BRACKET STARTER-ALTERNATOR WIRING HARNESS AT PARTITION WALL
385
BRACKET PARTITION PANEL,LEFT
385
BRACKET STARTER-ALTERNATOR WIRING HARNESS AT PARTITION WALL
390
FILLISTER HD SCREW MOUNTING SHIELD RIGHT 5X16
390
HEXALOBULAR BOLT BRACKET TO TRANSMISSION M6X15
390
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
400
BRACKET IN MAJ. ASS. COMP. RIGHT
400
BRACKET LEFT MAJOR ASSEMBLIES COMP.
405
CABLE DUCT COVER AT LEFT BRACKET
405
CABLE DUCT COVER TO BRACKET RIGHT
410
NUT VALVE TO BRACKET
410
NUT MOUNTING FRAME TO SUPPORT M6
490
BRACKET REAR RIGHT
510
COVER BACKUP BATTERY
510
BRACKET BATTERY BACKUP
520
COMBINATION NUT TO MOUNTING M6
900
REP.SET CONTACT FRONT PREFUSE BOX SQUIB 2-PIN 0.5MM2,F32, ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
