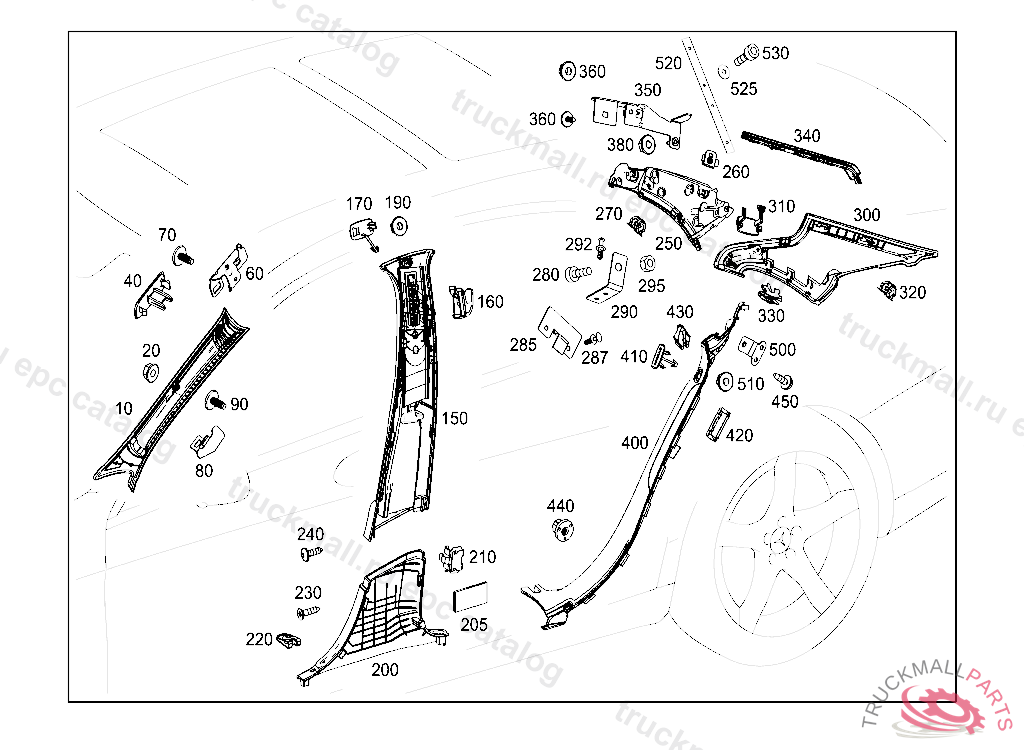

Поз.
Артикул
Описание
10
A-PILLAR TRIM A-PILLAR,LEFT
10
A-PILLAR TRIM A-PILLAR,RIGHT
10
A-PILLAR TRIM A-PILLAR,LEFT
10
A-PILLAR TRIM A-PILLAR,LEFT
10
A-PILLAR TRIM A-PILLAR,RIGHT
10
A-PILLAR TRIM A-PILLAR,RIGHT
10
A-PILLAR TRIM A-PILLAR,RIGHT
10
A-PILLAR TRIM A-PILLAR,LEFT
20
NUT BRACKET TO BODY SHELL M6
20
NUT , Replaced By: N913023006001
40
COVER MOLDING AIRBAG BADGE, LEFT
40
COVER MOLDING AIRBAG BADGE, RIGHT
60
BRACKET A-PILLAR,RIGHT
60
BRACKET A-PILLAR,RIGHT
60
BRACKET A-PILLAR,LEFT
60
BRACKET A-PILLAR,LEFT
70
FILLISTER HEAD SCREW BRACKET TO C-PILLAR, LEFT M5X14
80
BRACKET A-PILLAR, CENTER RIGHT
90
FILLISTER HEAD SCREW BRACKET TO C-PILLAR, LEFT M5X14
90
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
90
BOLT HINGE TO LEFT DOOR M8X35
150
B-PILLAR TRIM B-PILLAR ON THE RIGHT
150
B-PILLAR TRIM B-PILLAR ON THE LEFT
150
B-PILLAR TRIM B-PILLAR ON THE RIGHT
150
B-PILLAR TRIM B-PILLAR ON THE LEFT
150
B-PILLAR TRIM B-PILLAR ON THE RIGHT
150
B-PILLAR TRIM B-PILLAR ON THE RIGHT
150
B-PILLAR TRIM B-PILLAR ON THE LEFT
150
B-PILLAR TRIM B-PILLAR ON THE LEFT
160
COAT HOOK LEFT
170
COVER MOLDING SRS BADGE LEFT
190
NUT BRACKET TO BODY SHELL M6
200
B-PILLAR TRIM B-PILLAR BOTTOM LEFT
200
B-PILLAR TRIM B-PILLAR BOTTOM LEFT
200
B-PILLAR TRIM B-PILLAR BOTTOM RIGHT
200
B-PILLAR TRIM B-PILLAR BOTTOM RIGHT
205
INTERMEDIATE LAYER ANTENNA COMBINER TO LATERAL LEFT COVERING IN LUGGAGE COMPARTMENT
210
MOUNTING CLAMP PANELING TO RIGHT B-PILLAR
220
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
230
HEXAL. SOCKET CSK. BOLT LOCK STRIKER TO RIGHT B-PILLAR M8X20
230
SCREWTO 000 820 07 51
240
TAPPING SCREW CONTROL UNIT TO FIRE WALL
250
C-PILLAR TRIM PILLAR BOTTOM, RIGHT
250
C-PILLAR TRIM C-PILLAR BOTTOM, LEFT
250
C-PILLAR TRIM PILLAR BOTTOM, RIGHT
250
C-PILLAR TRIM C-PILLAR BOTTOM, LEFT
250
C-PILLAR TRIM C-PILLAR BOTTOM, LEFT
250
C-PILLAR TRIM C-PILLAR BOTTOM, LEFT
250
C-PILLAR TRIM PILLAR BOTTOM, RIGHT
250
C-PILLAR TRIM PILLAR BOTTOM, RIGHT
260
STRAP BUCKLE
270
CLIP INSTRUMENT CLUSTER, J 48100520010301801
280
NUT , Replaced By: N913023006001
280
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
285
BRACKET PANELING ON SHELL, RIGHT
287
BLIND RIVET MOUNTING OF CARRIER 4X8
290
BRACKET PANELING ON SHELL, RIGHT
292
BLIND RIVET MOUNTING OF CARRIER 4X8
295
NUT , Replaced By: N913023006001
300
C-PILLAR TRIM C-PILLAR TOP,LEFT
300
C-PILLAR TRIM C-PILLAR TOP,LEFT
300
C-PILLAR TRIM C-PILLAR TOP,RIGHT
300
C-PILLAR TRIM C-PILLAR TOP,LEFT
300
C-PILLAR TRIM C-PILLAR TOP,RIGHT
300
C-PILLAR TRIM C-PILLAR TOP,RIGHT
300
C-PILLAR TRIM C-PILLAR TOP,RIGHT
300
C-PILLAR TRIM C-PILLAR TOP,LEFT
300
C-PILLAR TRIM C-PILLAR TOP,RIGHT
300
C-PILLAR TRIM C-PILLAR TOP,LEFT
310
COVER MOLDING AIRBAG BADGE, LEFT
320
CLIP INSTRUMENT CLUSTER, J 48100520010301801
330
SPRING CLAMP PANELING TO B-PILLAR TOP
340
GUIDE RAIL LEFT ROLLER BLIND
340
GUIDE RAIL ROLLER BLIND, RIGHT
350
BRACKET TO C-PILLAR RIGHT
350
BRACKET TO C-PILLAR RIGHT
350
BRACKET TO C-PILLAR LEFT
350
BRACKET TO C-PILLAR LEFT
360
FILLISTER HEAD SCREW BRACKET TO C-PILLAR, LEFT M5X14
360
NUT , Replaced By: N913023006001
380
NUT , Replaced By: N913023006001
380
NUT BRACKET TO BODY SHELL M6
400
LINING WHEEL INSTALLATION LEFT WHEELHOUSE
400
LINING WHEEL INSTALLATION RIGHT WHEELHOUSE
400
LINING WHEEL INSTALLATION RIGHT WHEELHOUSE
400
LINING WHEEL INSTALLATION LEFT WHEELHOUSE
400
LINING WHEEL INSTALLATION RIGHT WHEELHOUSE
400
LINING WHEEL INSTALLATION LEFT WHEELHOUSE
400
LINING WHEEL INSTALLATION LEFT WHEELHOUSE
400
LINING WHEEL INSTALLATION RIGHT WHEELHOUSE
400
LINING WHEEL INSTALLATION LEFT WHEELHOUSE, Replaced By: A2226909700
400
LINING WHEEL INSTALLATION RIGHT WHEELHOUSE, Replaced By: A2226909800
400
LINING WHEEL INSTALLATION LEFT WHEELHOUSE, Replaced By: A2226900701
400
LINING WHEEL INSTALLATION RIGHT WHEELHOUSE, Replaced By: A2226900801
400
LINING WHEEL INSTALLATION LEFT WHEELHOUSE, Replaced By: A2226900101
400
LINING WHEEL INSTALLATION RIGHT WHEELHOUSE, Replaced By: A2226900201
410
COVER WITH LETTERING AIRBAG BADGE, LEFT
410
COVER WITH LETTERING AIRBAG BADGE, RIGHT
420
CLIP PANELING MOUNTING, LEFT
430
CLIP PANELLING
440
NUT VALVE TO BRACKET
450
SCREW CHARGE PLUNGER UNIT
500
BRACKET FASTENING PANELING WHEELHOUSE LINER, LEFT
510
NUT , Replaced By: N913023006001
520
RETAINING STRAP TO C PILLAR INSIDE, RIGHT, A 20140402
520
RETAINING STRAP TO C PILLAR INSIDE, RIGHT, A 20140402
525
WASHER COMPRESSED AIR LINE TO BRACKET
530
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
