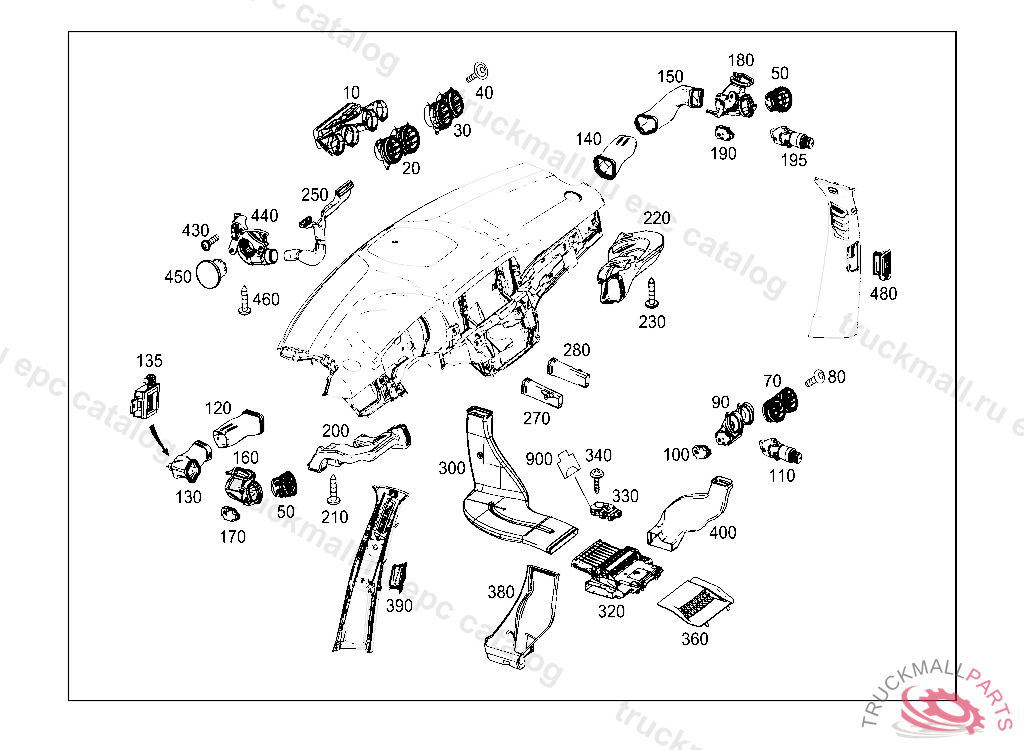

Поз.
Артикул
Описание
10
AIR DUCT CENTRAL
10
AIR DUCT CENTRAL
20
AIR NOZZLE CENTRAL LEFT, 2A17QFT222A3205 SILVER SHADOW
30
AIR NOZZLE CENTRAL RIGHT, 2A17QFT222A3205 SILVER SHADOW
40
BOLT. SCREW (SENSOR CABLE) BRAKE WEAR INDICATOR, REAR,AXLE,LEFT AND RIGHT,V 207570
50
AIR NOZZLE LEFT AND RIGHT
70
AIR NOZZLE CENTRAL CONSOLE REAR, 2A17QFT222A3205 SILVER SHADOW
70
AIR NOZZLE CENTRAL CONSOLE REAR, 2A17QFT217A3205 SILVER SHADOW
80
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
90
AIR DUCT CENTRAL CONSOLE
100
STEPPER MOTOR AIR MIXING FLAP CONTROL, Replaced By: A1698200442
110
POTENTIOMETER NOZZLE ADJUSTMENT IN REAR
120
AIR DUCT LEFT TOP
130
AIR DUCT LEFT TOP
130
AIR DUCT LEFT TOP
130
AIR DUCT LEFT TOP
140
AIR DUCT RIGHT TOP
150
AIR DUCT RIGHT TOP
150
AIR DUCT RIGHT TOP
150
AIR DUCT RIGHT TOP
160
AIR DUCT DEFROSTER LEFT
170
STEPPER MOTOR AIR MIXING FLAP CONTROL, Replaced By: A1698200442
180
AIR DUCT DEFROSTER RIGHT
190
STEPPER MOTOR AIR MIXING FLAP CONTROL, Replaced By: A1698200442
195
POTENTIOMETER NOZZLE ADJUSTMENT IN REAR
200
AIR DUCT LEGROOM VENTILATION,LEFT
200
AIR DUCT LEGROOM VENTILATION,LEFT
210
SHEET METAL SCREW BRACKET TO SUPPORT
220
AIR DUCT LEGROOM VENTILATION,RIGHT
220
AIR DUCT LEGROOM VENTILATION,RIGHT
230
SHEET METAL SCREW BRACKET TO SUPPORT
250
AIR DUCT
250
AIR DUCT
270
AIR DUCT LEFT
280
AIR DUCT RIGHT
300
AIR DUCT BOTTOM REAR LEFT
300
AIR DUCT BOTTOM PART RIGHT FRONT
320
AIR DUCT LEFT
320
AIR DUCT LEFT
320
AIR DUCT RIGHT
320
AIR DUCT RIGHT
330
STEPPER MOTORI_F
340
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
360
AIR FLOW SERRATION RIGHT
360
AIR FLOW SERRATION LEFT
380
AIR DUCT TO LEFT B-PILLAR
380
AIR DUCT TO RIGHT B PILLAR
390
AIR NOZZLE TO LEFT B-PILLAR
400
AIR DUCT RIGHT
400
AIR DUCT LEFT
430
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
440
FAN INSTRUMENT CLUSTER
450
AIR DUCT
460
SHEET METAL SCREW COVERING TO CAB 4.2X19
480
AIR NOZZLE TO RIGHT B PILLAR
900
CONNECTOR HOUSING ACTUATOR MOTOR AIR DUCT AT REAR BOTTOM, LEFT AND RIGHT 4-PIN MQS,M16/33, M16/34
