Поз.
Артикул
Описание
10

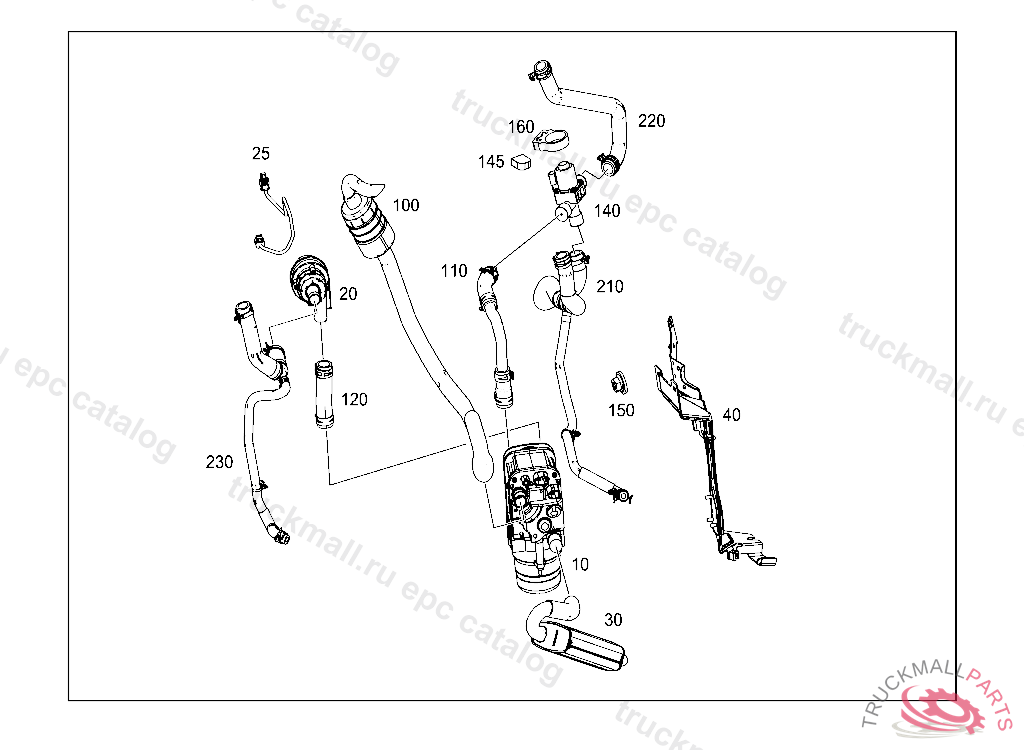

PARK HEATING UNIT , A 00491520130626 PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
10
HEATER INDEPENDENT HEATING, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
10
PARK HEATING UNIT , A 00491420130626 PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
20
CIRCULATION PUMP
25
ELECTRICAL WIRING HARNESS
30
MUFFLER SYSTEM
30
MUFFLER SYSTEM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 00491420130626, Replaced By: A2224901501
40
BRACKET
100
MOLDED HOSE , A 00491520130626
100
MOLDED HOSE , A 00491420130626
110
MOLDED HOSE
120
MOLDED HOSE FROM HEATER UNIT TO PUMP
140
VALVE
145
CAP AT BRACKET
150
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
160
ELASTOMER BEARING FASTENING VALVE
210
MOLDED HOSE
220
MOLDED HOSE
230
MOLDED HOSE RETURN FROM HEAT EXCHANGER
