Поз.
Артикул
Описание

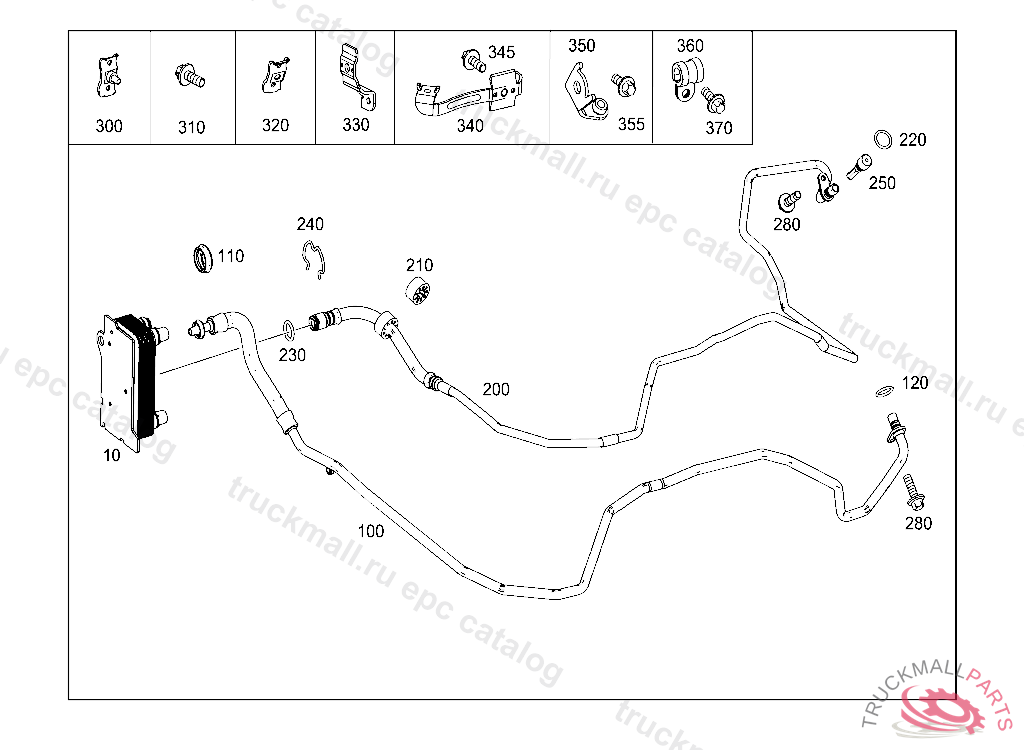

10
OIL COOLER TRANSMISSION OIL
100
OIL LINE LEFT
100
OIL LINE LEFT
110
PROTECTIVE CAP OIL LINE
110
DUST PROTECTION CAP OIL LINE RIGHT
110
DUST PROTECTION CAP OIL LINE LEFT
120
O-RING OIL LINE 9.70X1.50, A 02316520090124
120
O-RING OIL LINE TO TRANSMISSION
200
OIL LINE RIGHT
200
OIL LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
220
O-RING OIL LINE TO TRANSMISSION
220
O-RING OIL LINE 9.70X1.50, A 02316520090124
230
O-RING TRANSMISSION OIL LINE TO OIL COOLER 9.25X1.78
230
O-RING RIGHT 9.25X1.78
240
DETENT SPRING OIL LINE
250
RESTRICTOR INSERT IN RIGHT LINE, A 64033720111008 F 79103320111009
280
HEXALOBULAR BOLT. SCREW WIRING HARNESS ON OIL FILTER HOUSING
300
CLAMP OIL LINE TO BRACKET
345
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
360
MOUNTING CLAMP OIL FILLER TO ENGINE
360
MOUNTING CLAMP OIL LINE TO OIL PAN
370
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
