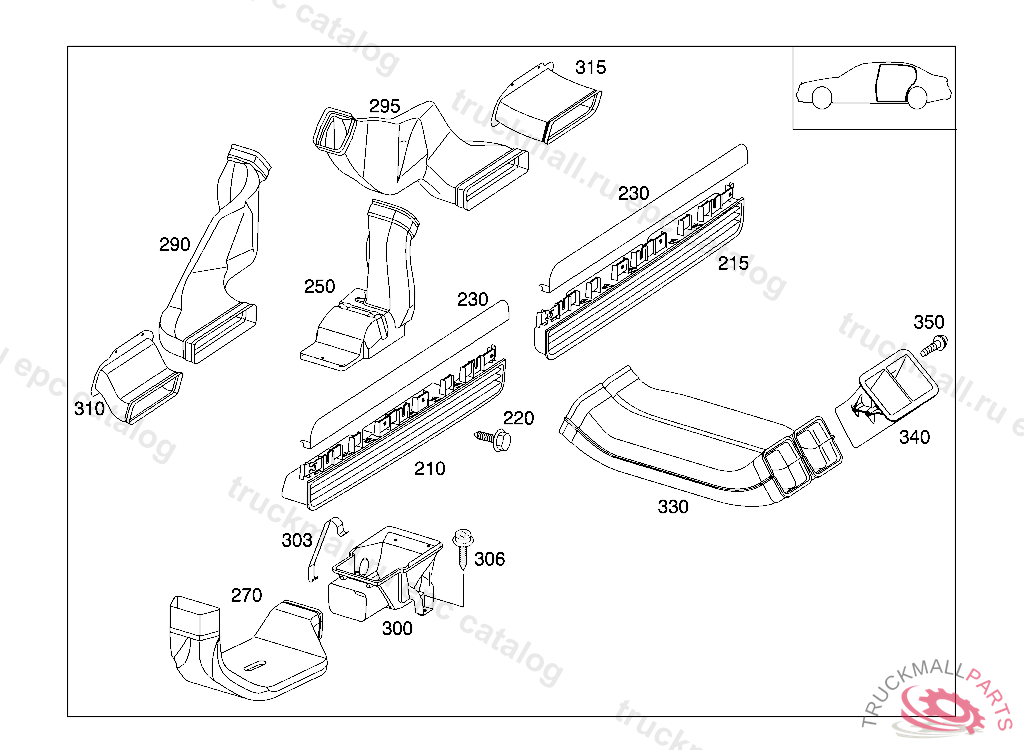

MAYBACH 62 S - 240.179 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
210
BAFFLE LEFT
215
BAFFLE RIGHT
220
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X16
230
PANEL AIR BAFFLE
250
DUCT REAR LEFT
250
DUCT REAR RIGHT
270
DUCT B-PILLAR ON THE RIGHT
270
DUCT B-PILLAR ON THE LEFT
290
DUCT B-PILLAR ON THE LEFT
295
DUCT B-PILLAR ON THE RIGHT
300
HOUSING AIR DUCT CONNECTOR
303
CLIP HOUSING FASTENING
306
BOLT. SCREW
310
DUCT BREATHING
315
DUCT BREATHING
330
DUCT REAR NOZZLE
340
INTERMEDIATE PIECE REAR NOZZLE
350
SCREW SOCKET MOUNTING
