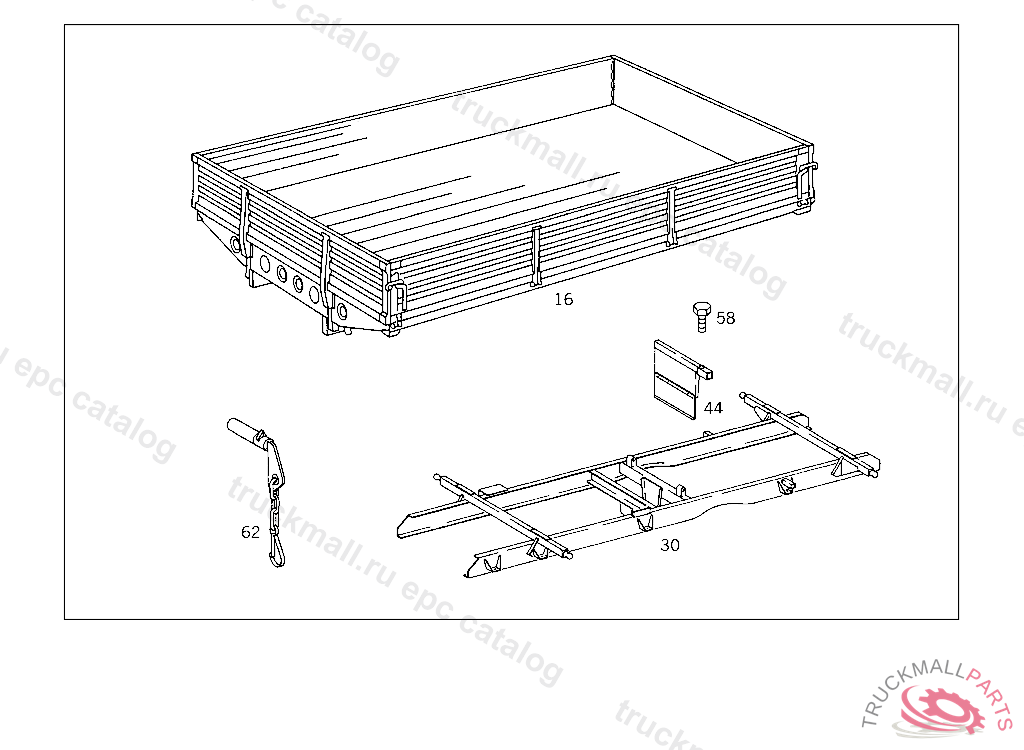

LK 408 G,LK 409,LK 410 - 309.041 - 60 PLATFORM

  • Поз.
    Артикул
    Описание
  • 16
    PLATFORM THREE-SIDE DUMP TRUCK, TO BE ORDERED FROM MESSRS.DAUTEL,HEILBRONN
  • 30
    SUBSTRUCTURE PLATFORM, TO BE ORDERED FROM MESSRS.DAUTEL,HEILBRONN
  • 44
    SPLASH GUARD REAR LEFT
  • 44
    SPLASH GUARD REAR RIGHT
  • 58
    SCREW , Replaced By: N308676012026
  • 62
    COUPLING PIN FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME
