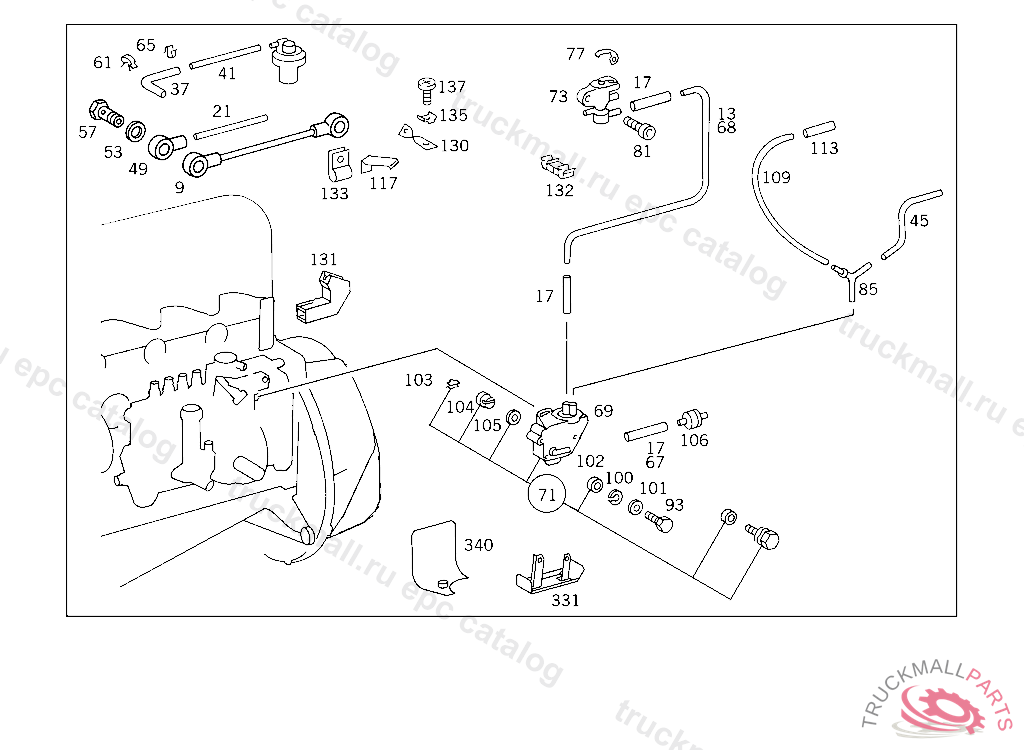

Поз.
Артикул
Описание
9
LINE VACUUM LINE,313761
9
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3092700147
13
LINE FROM 3/2-WAY VALVE TO VACUUM CONTROL VALVE, ORDER BY THE METER
17
HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
17
HOSE , Replaced By: A1179970982
21
HOSE VACUUM LINE TO INTAKE MANIFOLD 200 MM, ORDER BY THE METER
37
HOSE , Replaced By: A1170780281
37
HOSE
37
HOSE TO ELEMENT AT FRONT SEAT
41
LINE VACUUM LINE, ORDER BY THE METER313762
45
LINE FROM 3/2-WAY VALVE TO DISTRIBUTOR 4 MM, ORDER BY THE METER
49
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
49
BANJO UNION , Replaced By: N915052004003
53
SEAL RINGTO 001 431 72 14
57
HOLLOW SCREW OIL LINE
61
CLAMP BOWDEN CABLE TO CAB
61
CLAMP , Replaced By: A0009956044
65
CLIP TAIL LAMP CABLE HARNESS TO REAR LID
65
CLIP FUEL LINE TO CAB CONSOLE
65
CLIP LINE MOUNTING
67
HOSE
68
HOSE TO ELEMENT AT FRONT SEAT
69
VALVE VACUUM CONTROL VALVE
69
VALVE VACUUM CONTROL VALVE
69
VALVE VACUUM CONTROL VALVE
69
VALVE , Replaced By: A1233000233
69
VALVE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO ENGINE 617.913 000681 617.931 001198 617.932 000001, Replaced By: A1233000733
69
VALVE , Replaced By: A1403001133, +001A1162760929
69
VALVE , Replaced By: A6013000133
71
FOLLOWER
73
VALVE 3/2-WAY
77
LEVER
81
SCREW VALVE TO CONVERTER HOUSING M 5X12
85
LINE VACUUM DISTRIBUTOR
85
LINE VACUUM DISTRIBUTOR
85
BRANCH-OFF FITTING
93
SCREW COVER PLATE TO BRACKET
93
SCREW COVER PLATE TO BRACKET
93
SCREW OIL LINE TO CRANKCASE
93
SCREW BRACKET ON LOAD SENSOR
100
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
101
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
102
SPACER TUBE VACUUM CONTROL VALVE TO INJECTION PUMP
103
FOLLOWER VACUUM CONTROL VALVE, 617.913 000681 617.931 001198 617.932 000001
104
BRACKET VACUUM CONTROL VALVE, 617.913 000681 617.931 001198 617.932 000001
105
SEAL RING VACUUM CONTROL VALVE TO INJECTION PUMP, 617.913 000682 617.931 001199 617.932 000002
106
DASHPOT
106
VALVE , Replaced By: A0003040034
106
DASHPOT , Replaced By: A0003040034
109
LINE. HOSE FROM VACUUM CONTROL VALVE TO PASSENGER COMPARTMENT 4 MM, ORDER BY THE METER
113
HOSE *** 30 MM
117
BRACKET LINE TO REAR TRANSMISSION CASE,313761
130
BRACKET LINE TO CAB,313761
131
BRACKET LINE TO CONVERTER HOUSING
132
BRACKET LINE TO CONVERTER HOUSING
133
CLAMP LINE MOUNTING
135
BRACKET ELECTRIC CABLE TO KICK-DOWN SOLENOID VALVE
137
SCREW ELECTRIC CABLE TO HORN
331
COVER PLATE HEAT SHIELD OF SOLENOID VALVE AND VACCUM BOX
340
COVER PLATE HEAT SHIELD OF SOLENOID VALVE AND VACCUM BOX
999
WASHER
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
