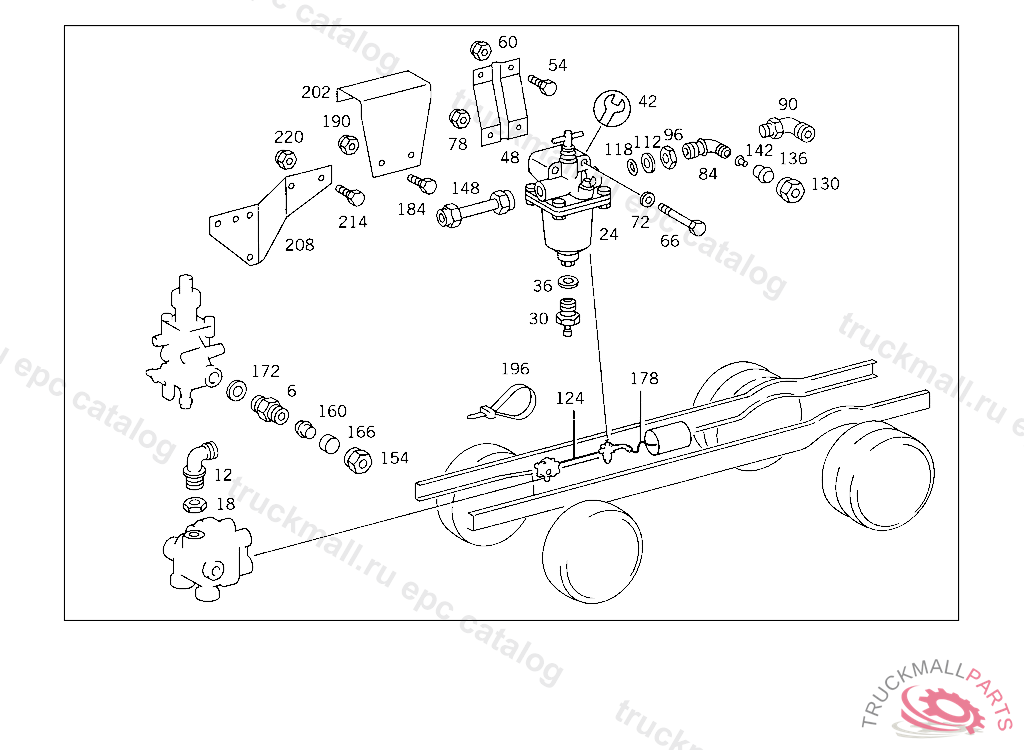

Поз.
Артикул
Описание
6
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
6
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
6
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
12
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
18
NUT CHECK VALVE TO AIR RESERVOIR
24
ANTI-FREEZE DEVICE
30
VALVE. DRAIN VALVE DRAIN
30
VALVE DRAIN, Replaced By: A0004322407
30
VALVE DRAIN, Replaced By: A0004322107
36
WASHER ANTI-FREEZE DEVICE DRAIN
42
REPAIR KITWEST 432 199 015 0,432 199 030 0
48
BRACKET ANTI-FREEZE DEVICE
54
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
54
SCREW , Replaced By: N304017008016
60
NUT , Replaced By: N913004008001
66
SCREW BRACKET TO BEARING BRACKET
66
SCREW REAR AXLE REGULATING SOLENOID VALVE
66
SCREW , Replaced By: N304017008045
72
WASHER , Replaced By: N000125008443
72
WASHER EXHAUST MUFFLER TO STRAP
78
NUT , Replaced By: N913004008001
84
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
90
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
96
NUT CHECK VALVE TO AIR RESERVOIR
112
THRUST RING CHECK VALVE TO AIR RESERVOIR
112
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
118
O-RING CHECK VALVE TO AIR RESERVOIR
124
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
124
HOSE , Replaced By: A0009872827
130
UNION NUT LINE CONNECTION, Replaced By: N000000006239
130
UNION NUT LINE CONNECTION
136
SEAL CONE LINE CONNECTION
136
GLAND , Replaced By: A0019901967
142
BUSHING , Replaced By: N915062009000
142
SLEEVE LINE CONNECTION
148
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
154
UNION NUT BUTT SCREW CONNECTION
160
GLAND LINE CONNECTION
166
THRUST RING BUTT SCREW CONNECTION
172
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
172
SEAL RING , Replaced By: N007603012121
178
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
184
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
190
NUT STRAP TO BRACKET
190
NUT , Replaced By: N910113010000
196
LOOM TIE LINE MOUNTING
202
BRACKET FRAME FLOOR UNIT
208
BRACKET PLATFORM
214
SCREW PIPE CLAMP
214
SCREW , Replaced By: N304017008021
220
NUT , Replaced By: N913004008001
999
SCREW PLUG WITH DIPSTICK
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
