Поз.
Артикул
Описание

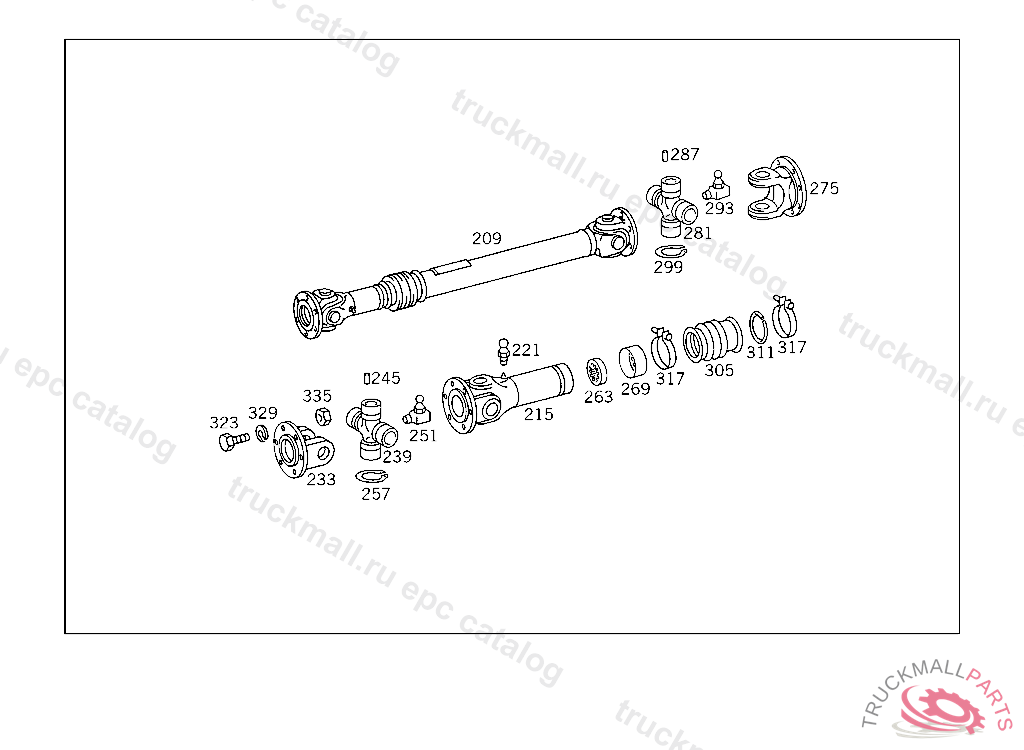

209
PROPELLER SHAFT FROM INTERMED.SHAFT BEARING TO REAR AXLE 1571 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
215
UNIVERSAL JOINT YOKE
221
GREASE NIPPLE
221
GREASE NIPPLE , Replaced By: N071412008102
233
DRIVE FLANGE
239
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
239
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
245
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
245
NEEDLE , Replaced By: A3189810287
245
NEEDLE , Replaced By: A0009815087
251
GREASE NIPPLE
257
SNAP RING2.750 MM
257
SNAP RING2.700 MM
257
SNAP RING2.650 MM
257
SNAP RING2.600 MM
257
SNAP RING2.550 MM
257
SNAP RING2.500 MM
263
SEAL RING
269
SEAL HOLDER
275
DRIVE FLANGE
281
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
281
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
287
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
287
NEEDLE , Replaced By: A3189810287
287
NEEDLE , Replaced By: A0009815087
293
GREASE NIPPLE
299
SNAP RING2.750 MM
299
SNAP RING2.700 MM
299
SNAP RING2.650 MM
299
SNAP RING2.600 MM
299
SNAP RING2.550 MM
299
SNAP RING2.500 MM
305
BOOT
305
BOOT , Replaced By: A3144100080
311
SPACER RING
317
CLAMP , WITH BOOT
317
CLAMP
323
HEX. HEAD SCREW. SCREW PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, LOCK WASHER MUST NOT BE INSTALLED
323
SCREW , Replaced By: A3539900001
329
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
335
NUT FROM PROPELLER SHAFT TO FRONT AXLE
