Поз.
Артикул
Описание

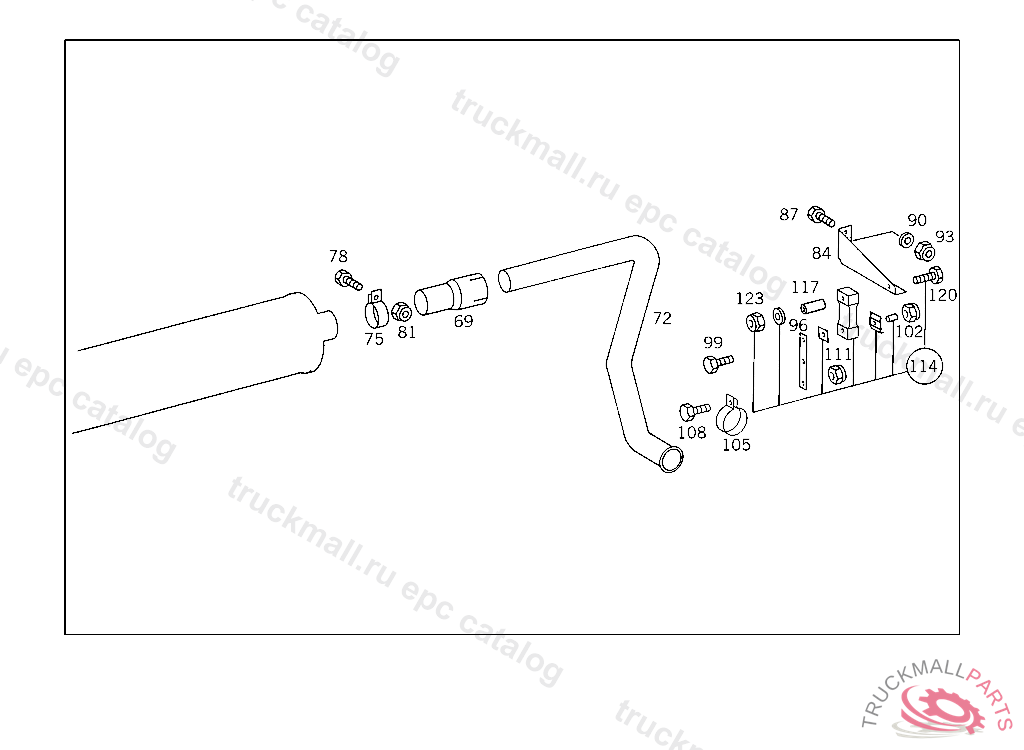

69
CONNECTOR REAR EXHAUST PIPE TO MUFFLER,4 282708
72
REAR EXHAUST PIPE (TAIL PIPE),4 282708
72
REAR EXHAUST PIPE
75
CLAMP REAR EXHAUST PIPE TO MUFFLER
75
CLAMP FRONT AND REAR EXHAUST PIPES TO MUFFLER,4 282708
78
SCREW BRACKET TO CROSS CONNECTION STRUT
78
SCREW , Replaced By: N304017008034
81
HEXAGON NUT SCREENING PLATE,5 163561
81
NUT , Replaced By: A1201420072
84
SUPPORT RIGHT AIR RESERVOIR
87
SCREW END PIECE TO EXHAUST PIPE M 10X25
90
WASHER RADIATOR TO RUBBER MOUNTING
90
WASHER , Replaced By: N000125010532
93
NUT STRAP TO BRACKET
93
NUT , Replaced By: N910113010000
96
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
99
SCREWM 8X40
99
SCREW VALVE TO BRACKET
102
HEXAGON NUT SCREENING PLATE,5 163561
102
NUT , Replaced By: A1201420072
105
CLAMP60.5 MM,4 613839
105
CLAMP LINE MOUNTING
105
CLAMP , Replaced By: A9424310043
105
CLAMP , Replaced By: N000000001641
108
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
108
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
108
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
108
SCREW , Replaced By: N304017008027
111
HEXAGON NUT SCREENING PLATE,5 163561
111
NUT , Replaced By: A1201420072
114
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
117
GUIDE BUSHING TWO-WAY VALVE TO FRAME
117
SPACER TUBE , Replaced By: A3094310249
120
SCREWM 8X40
123
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
123
NUT , Replaced By: N913004008001
999
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
999
NUT , Replaced By: N913004008007
999
INSULATING WASHER. INSULATION , Replaced By: A3094900037
999
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
999
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
999
SPACER TUBE FRONT EXHAUST PIPE,B 884219
999
REPAIR KIT , Replaced By: A3094900037
999
EXHAUST MUFFLER , Replaced By: A3144900501, +001A3184910041
999
EXHAUST PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3144901819
999
BRACKET , Replaced By: A3144910341
999
EXHAUST PIPE ,619062 - 4 2827078 000001, Replaced By: A3144923504, +001A3184923441, +001N071555050500
999
EXHAUST PIPE ,619062 - 4 2827078 000001, Replaced By: A3184923904, +001A3184921307, +001A3184923441, +001N071555060500, +001N071555063500
999
EXHAUST PIPE ,619062 - 4 2827078 000001, Replaced By: A3184923904, +001A3184921307, +001A3184923441, +001N071555060500, +001N071555063500
999
SUPPORT , Replaced By: A3164920316
999
SUPPORT , Replaced By: A3164920316
999
SUPPORT RIGHT AIR RESERVOIR
999
BRACKET AT MUFFLER,5 1522775 194472
999
CLAMP , THE OLD PART MUST NO LONGER BE INSJTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3144910240
