Поз.
Артикул
Описание
209

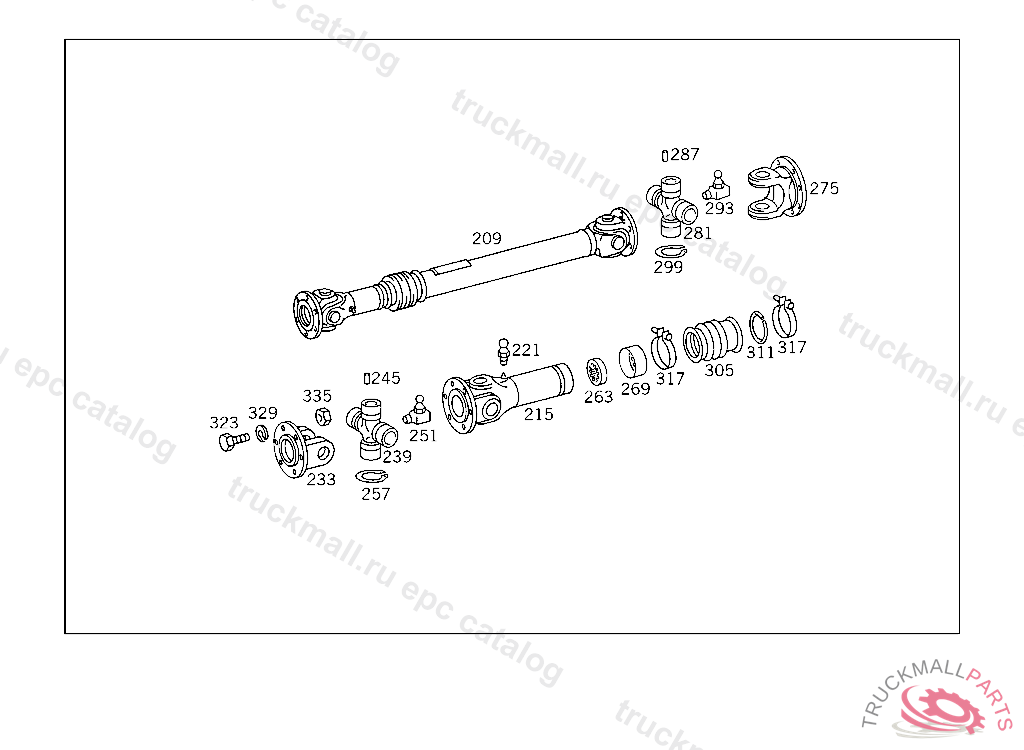

PROPELLER SHAFT FROM TRANSFER CASE TO FRONT AXLE 1365 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
209
PROPELLER SHAFT , WITH BOOT4 839373, Replaced By: A6744102602
209
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE 1413 MM,4 477510
215
UNIVERSAL JOINT YOKE , PROPELLER SHAFT WITH BOOT
221
GREASE NIPPLE , Replaced By: N071412008102
221
GREASE NIPPLE
233
DRIVE FLANGE
239
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
239
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
245
NEEDLE , Replaced By: A3189810287
245
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
251
GREASE NIPPLE
257
SNAP RING2.750 MM
257
SNAP RING2.700 MM
257
SNAP RING2.550 MM
257
SNAP RING2.600 MM
257
SNAP RING2.650 MM
257
SNAP RING2.500 MM
263
SEAL RING , PROPELLER SHAFT WITH BOOT
269
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
275
DRIVE FLANGE
275
DRIVE FLANGE
281
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
281
UNIVERSAL JOINT CROSS , Replaced By: A0004104031
281
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
287
NEEDLE , Replaced By: A3189810287
287
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
293
GREASE NIPPLE
299
SNAP RING2.750 MM
299
SNAP RING2.700 MM
299
LOCK AS REQUIRED 2.00 MM
299
SNAP RING2.500 MM
299
LOCK AS REQUIRED 1.88 MM
299
SNAP RING2.650 MM
299
SNAP RING2.550 MM
299
SNAP RING2.600 MM
299
LOCK RING SHIFT LEVER BEARING
305
BOOT
311
WIRE RING , WITH BOOT
317
CLAMP , WITH BOOT
323
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
323
SCREW , Replaced By: A0079901001
323
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
329
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
335
NUT FROM PROPELLER SHAFT TO FRONT AXLE
