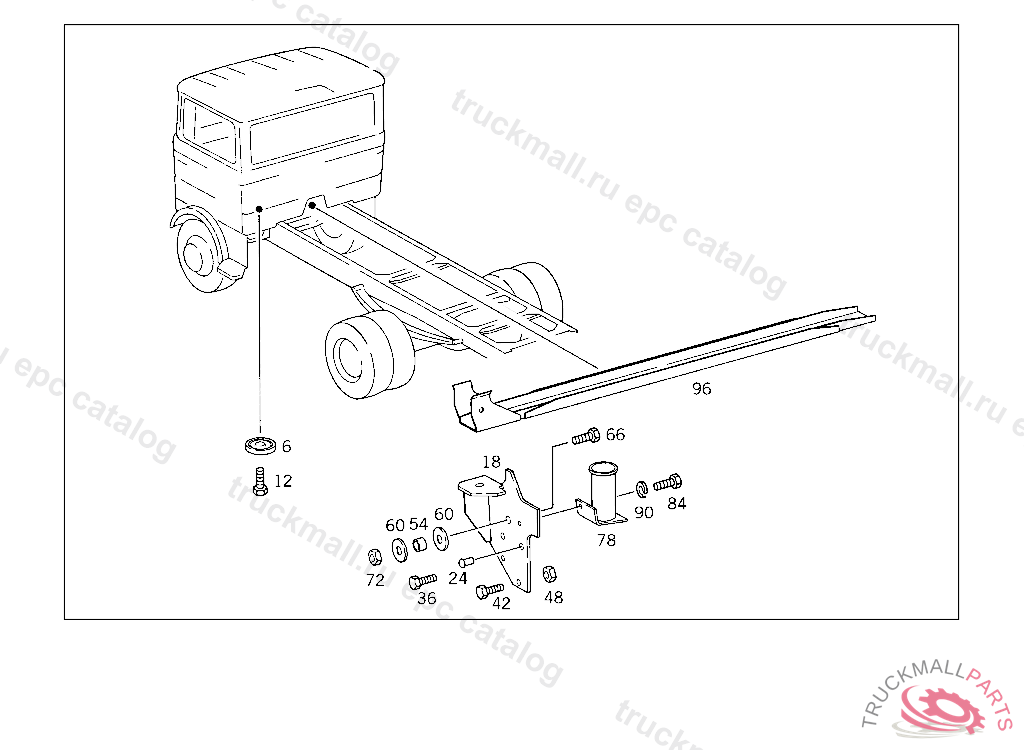

Поз.
Артикул
Описание
6
BUFFER PLATE CAB TO FRONT CONSOLE
12
SCREW , Replaced By: N000961014158
18
BRACKET LEFT
24
RIVET FRAME TRUSS TO SIDE MEMBER
36
SCREW REAR EXHAUST PIPE TO MUFFLER
42
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
48
NUT SUPPORT TO SIDE MEMBER
54
SPACER RETAINING ROPE TO BRACKET
54
EYE , Replaced By: A3359745037
60
WASHER RETAINING ROPE TO BRACKET
66
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
72
NUT COMBINATION CYLINDER TO BEARING BRACKET
72
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
78
SUPPORTING TUBE LEFT
84
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
84
SCREW , Replaced By: N304017008016
90
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
96
CROSS MEMBER CAB SUSPENSION
999
RETAINER CAB MOUNTING,FRONT
999
BRACKET RIGHT
999
SUPPORTING TUBE RIGHT
999
CONSOLE LEFT,4 659010 ONLY ON VEHICLES HAVING NO MERCEDES-BENZ CAB
999
SHIM CONSOLE TO FRAME,4 659010 ONLY ON VEHICLES HAVING NO MERCEDES-BENZ CAB
999
CONSOLE RIGHT, USED WITH MERCEDES-BENZ CAB
999
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
