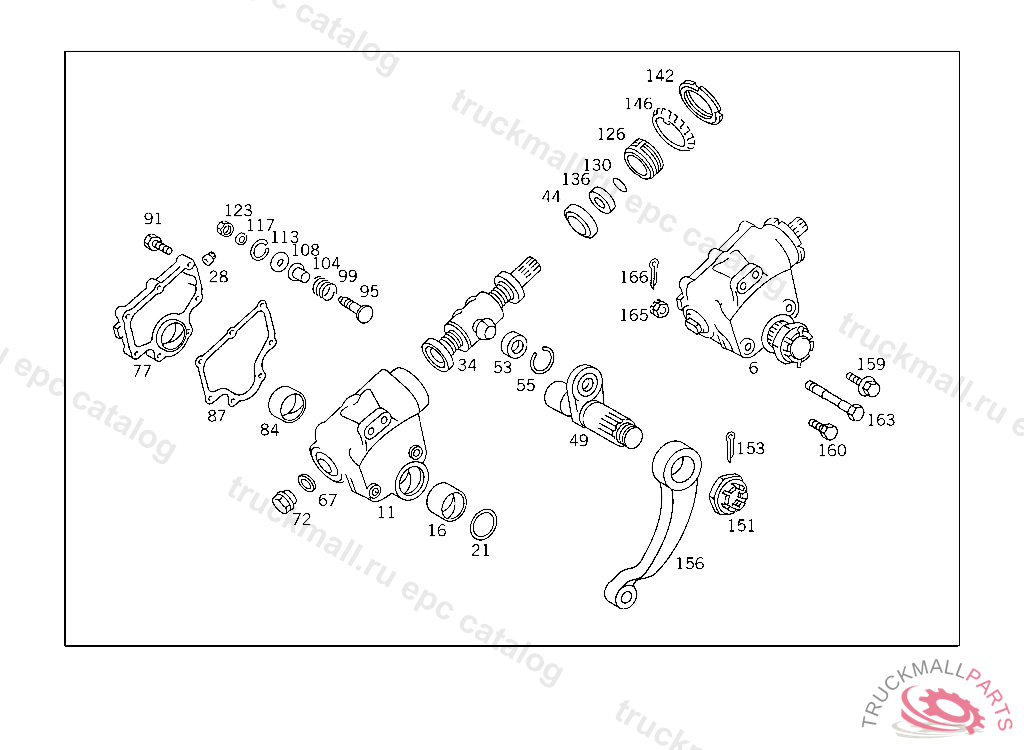

Поз.
Артикул
Описание
6
STEERING BOX ASSEMBLY , Replaced By: A3444601101
6
STEERING BOX ASSEMBLY , FOR BREAK-DOWN,SEE UNIT MICROFICHE,MODEL: 762.003
6
STEERING BOX ASSEMBLY , Replaced By: A3374601701
6
STEERING BOX ASSEMBLY , FOR BREAK-DOWN,SEE UNIT MICROFICHE,MODEL: 762.008
11
STEERING BOX WITH BEARING BUSHING
11
STEERING BOX
16
BUSHING47.1 MM
16
BUSHING REPAIR SIZE I 47.6 MM
21
SEAL RING
21
SEAL RING
28
SCREW PLUG
34
STEERING WORM , Replaced By: A3094601018
34
STEERING NUT WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING
34
STEERING WORM , Replaced By: A3094601018
34
STEERING NUT , Replaced By: A4064600218
34
STEERING NUT
44
BARREL-TYPE BEARING , Replaced By: A3459817006
44
BARREL-TYPE BEARING STEERING WORM, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
44
BARREL-TYPE BEARING
49
STEERG. WORM SECTOR SHAFT
53
BALL CUP
55
SNAP RING STEERING SHAFT BEARING IN COVER, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
67
SEAL RING OIL FILLING AND OIL DRAIN
72
SCREW PLUG STEERING BOX
72
SCREW PLUG OIL FILLING
77
STEERING BOX COVER
77
STEERING BOX COVER STEERING BOX
84
BUSHING STEERING SHAFT BEARING IN COVER, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
87
GASKET , Replaced By: A3524610180
87
GASKET
91
SCREW , Replaced By: N000931008049
95
SCREW
99
SPRING
104
THRUST PIECE
108
THRUST WASHER
113
LOCK
117
SEAL RING
123
NUT
123
NUT ,297463
126
RING
130
SEAL RING
136
SEAL RING
142
GROOVED NUT
146
LOCK
151
NUT
153
COTTER PIN , UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
156
PITMAN ARM , 10/20 695199 50/60 695577 8 0000014 2827078 000001-8 001702
156
PITMAN ARM
156
PITMAN ARM , 10/20 695199 50/60 695577 8 0000014 2827078 000001-8 001702
156
PITMAN ARM
159
SCREW STEERING TO STEERING BRACKET,4 2827078 000001-8 001702
160
SCREW STRUT TO CROSS MEMBER
163
SCREW STEERING TO STEERING BRACKET,4 2827078 000001-8 001702
165
NUT STEERING TO STEERING BRACKET,4 2827078 000001-8 001702
166
COTTER PIN CYLINDER TO BRACKET
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003301185
999
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0013300335
999
CLAMP , Replaced By: A4619955044
999
CAP , Replaced By: A0004641231
999
STEERING WHEEL ,4 767536, Replaced By: A0004641101, +001A0004642631
999
CAP , Replaced By: A3454647131
999
BUSHING ,582084
999
STEERING SHAFT ,4 373947, Replaced By: A3144601109, +002A0119815110
999
STEERING COLUMN BRACKET STEERING COLUMN,4 373947
999
STEERING SHAFT ,4 373947, Replaced By: A3144601209, +002A0119815110
999
BRACKET STEERING COLUMN,4 373947
999
STEERING BRACKET
999
UNIVERSAL JOINT ,5 463985, Replaced By: A0004600057, +002A3819900114
999
STEERING BRACKET , Replaced By: A3164600229
999
UNIVERSAL JOINT , Replaced By: A0004600157, +002A3819900114
999
BOOT , Replaced By: A3144620686
999
DRAG LINK , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 695199 - 4 282707, Replaced By: A3164600805
999
DRAG LINK , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 695199 - 4 282707, Replaced By: A3164600905
999
CONSOLE STEERING COLUMN,4 282707
999
STEERING SHAFT , Replaced By: A3164620801
999
PITMAN ARM , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 4 305617, Replaced By: A3164631001
999
PITMAN ARM , THE OLD PART MUST NO LONGER BE INSTALLED
999
STEERING BOX COVER , Replaced By: A3214600414, +001A0029900251
999
STEERING BOX COVER ,297463, Replaced By: A3214600514, +001A0029900251
999
UNIVERSAL JOINT , Replaced By: A3444607057
999
NUT , Replaced By: A6743560226
