Поз.
Артикул
Описание
4

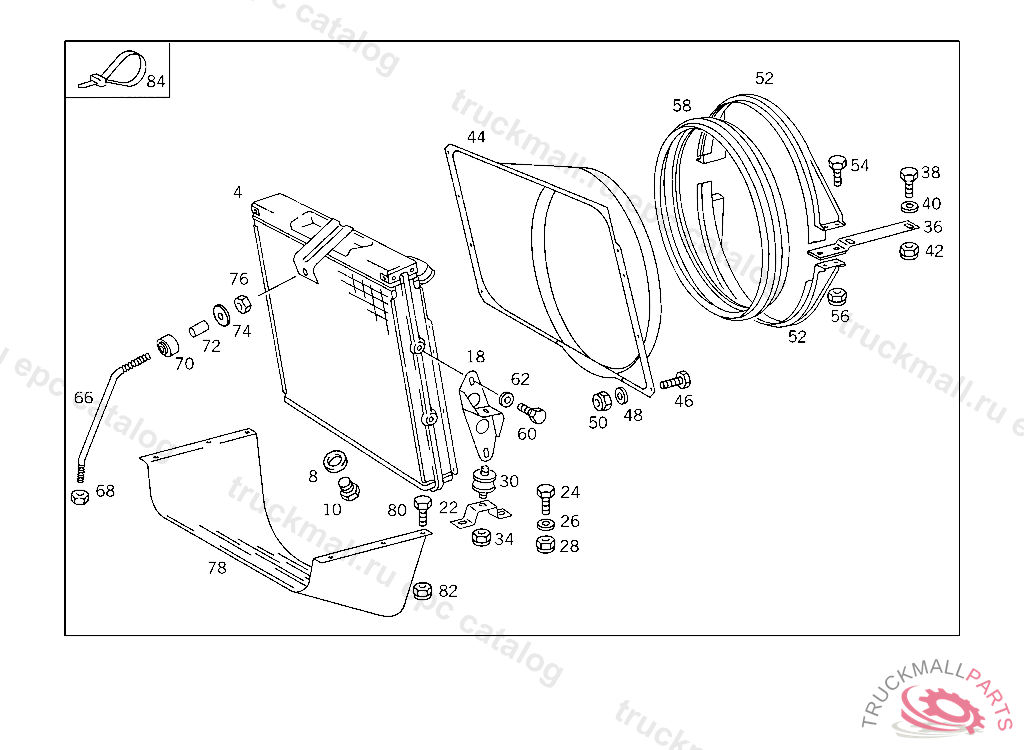

RADIATOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 4 610757, Replaced By: A3185002002
4
RADIATOR , Replaced By: A3185000802
4
RADIATOR , Replaced By: A3185000802
8
SEAL RING FUEL LINE TO FEED PUMP
10
SCREW PLUG FUEL TANK
10
SCREW PLUG , Replaced By: N007604014110
18
SUPPORT RIGHT
18
SUPPORT LEFT,4 467136
22
BRACKET RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER,4 467136
24
SCREW REAR EXHAUST PIPE TO MUFFLER
26
WASHER RADIATOR TO RUBBER MOUNTING
26
WASHER , Replaced By: N000125010532
28
NUT BRACKET TO SUPPORT AND TO END PIECE
30
RUBBER MOUNTING
30
RUBBER MOUNTING
34
NUT STRAP TO BRACKET
34
NUT STRAP TO BRACKET
34
NUT , Replaced By: N910113010000
36
SUPPORT RIGHT
36
SUPPORT LEFT
38
SCREW BRACKET TO CROSS CONNECTION STRUT
38
SCREW , Replaced By: N304017008034
40
WASHER EXHAUST MUFFLER TO STRAP
40
WASHER , Replaced By: N000125008443
42
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
42
NUT , Replaced By: N913004008001
44
FAN SHROUD
46
SCREW LICENSE PLATE TO BRACKET
46
SCREW LICENSE PLATE TO BRACKET
46
SCREW , Replaced By: N304017006020
48
WASHER COMPRESSED AIR LINE TO BRACKET
48
WASHER , Replaced By: N009021006208
50
NUT PUMP TO BRACKET
50
NUT PUMP TO BRACKET
50
NUT , Replaced By: N913004006001
52
FAN SHROUD RADIATOR
54
SCREW BRACKET TO CROSS CONNECTION STRUT
54
SCREW , Replaced By: N304017008034
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
NUT , Replaced By: N913004008001
58
BOOT FAN SHROUD
60
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
60
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
60
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
60
SCREW , Replaced By: N304017010028
60
SCREW BRACKET TO FRAME SIDE MEMBER
62
WASHER RADIATOR TO RUBBER MOUNTING
62
WASHER , Replaced By: N000125010532
66
RADIATOR STRUT ,4 467135
68
NUT BRACKET TO SUPPORT AND TO END PIECE
70
RUBBER RING SHOCK ABSORBER MOUNTING
72
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
74
WASHER BRACKET TO COVERING
74
WASHER , Replaced By: N009021010209
76
NUT BRACKET TO SUPPORT AND TO END PIECE
78
PROTECTIVE GRILL
80
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
80
SCREW BRACKET TO SIDE MEMBER
80
SCREW , Replaced By: N304017010002
82
NUT BRACKET TO SUPPORT AND TO END PIECE
82
NUT STRAP TO BRACKET
82
NUT , Replaced By: N910113010000
84
LOOM TIE LINE MOUNTING
999
RUBBER BUFFER EXHAUST MUFFLER
999
BRACKET , Replaced By: A3184291540
999
BRACKET , Replaced By: A3185000331
999
FAN SHROUD RADIATOR
999
LINE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 375862, Replaced By: A3185011682
999
LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 375862, Replaced By: A3185011982
999
FAN SHROUD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 467135, Replaced By: A3185051155
999
FAN SHROUD , Replaced By: A3185001155
999
LINE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 375862, Replaced By: A3185060360
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 375862, Replaced By: A3185011682
999
HOSE ,854136, Replaced By: A3185011282, +001A3185000572, +002N916017025000
999
HOSE , Replaced By: N073379006203
999
HOSE DE-AERATION,854136
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 467135, Replaced By: A3185011982
999
BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3185060640
999
CLAMP LINE MOUNTING
999
TANK , Replaced By: A3815001649
999
SHIM , Replaced By: A3815010495
