Поз.
Артикул
Описание

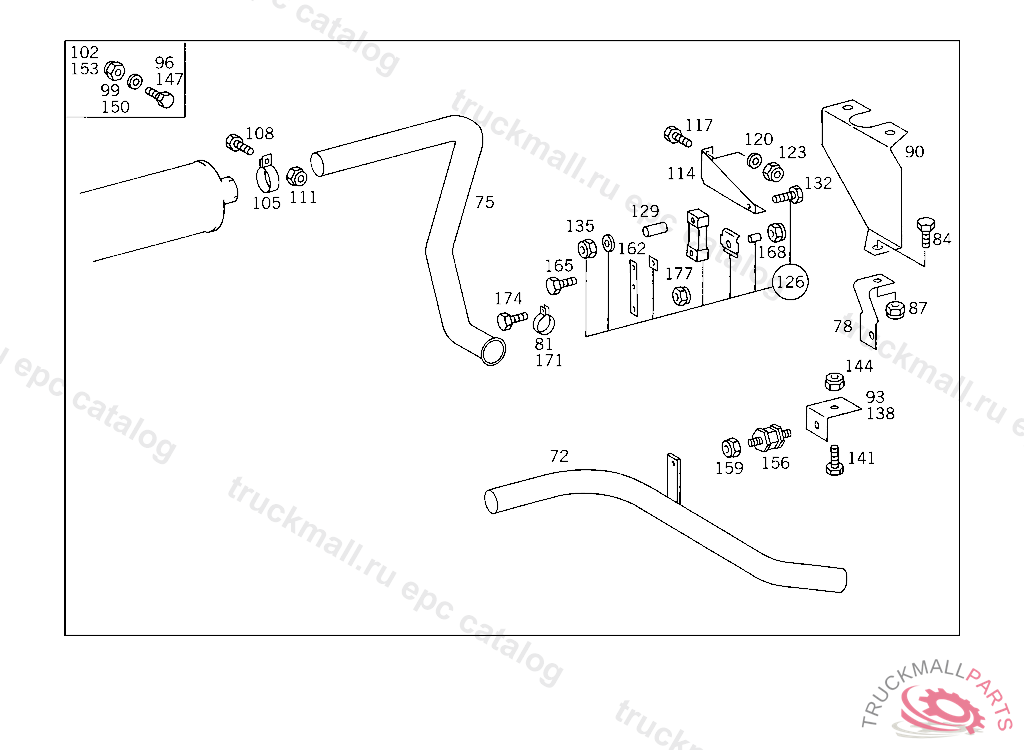

72
EXHAUST PIPE REAR,949960-4 282707
75
REAR EXHAUST PIPE (TAIL PIPE)
75
REAR EXHAUST PIPE (TAIL PIPE),4 282708
75
REAR EXHAUST PIPE REAR,4 282708
93
BRACKET REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,4 314187
96
SCREW , Replaced By: N304017008021
96
SCREW PIPE CLAMP
99
WASHER , Replaced By: N000125008443
99
WASHER EXHAUST MUFFLER TO STRAP
102
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
102
NUT , Replaced By: N913004008001
105
CLAMP REAR EXHAUST PIPE TO MUFFLER
108
SCREW BRACKET TO CROSS CONNECTION STRUT
108
SCREW , Replaced By: N304017008034
111
HEXAGON NUT SCREENING PLATE,5 163561
111
NUT , Replaced By: A1201420072
114
SUPPORT RIGHT AIR RESERVOIR
117
SCREW END PIECE TO EXHAUST PIPE M 10X25
120
WASHER , Replaced By: N000125010532
120
WASHER RADIATOR TO RUBBER MOUNTING
123
NUT , Replaced By: N910113010000
123
NUT STRAP TO BRACKET
126
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
129
SPACER TUBE , Replaced By: A3094310249
129
GUIDE BUSHING TWO-WAY VALVE TO FRAME
138
BRACKET REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,4 314187
141
SCREW CLAMP TO BRACKET AND TO PIPE
144
NUT , Replaced By: N913004008001
144
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
147
SCREW VALVE TO BRACKET, Replaced By: N304014008002
147
SCREW VALVE TO BRACKET
147
SCREW , Replaced By: N304014008001
147
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
150
WASHER BRACKET TO INTAKE MANIFOLD
150
WASHER
150
WASHER , Replaced By: N000125008443
150
WASHER EXHAUST MUFFLER TO STRAP
153
NUT , Replaced By: N913004008001
153
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
156
RUBBER BUFFER COVERING TO FRAME
159
NUT STRAP TO BRACKET
162
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
165
SCREW VALVE TO BRACKET
168
NUT , Replaced By: A1201420072
168
HEXAGON NUT SCREENING PLATE,5 163561
171
CLAMP60,5MM,A 003805
174
SCREW , Replaced By: N304017008027
174
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
174
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
174
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
177
NUT , Replaced By: A1201420072
177
HEXAGON NUT SCREENING PLATE,5 163561
999
RUBBER BUFFER , Replaced By: A0019875240
999
NUT , Replaced By: N913004008005
999
NUT , Replaced By: N913004008007
999
NUT , Replaced By: N913004010000
999
INSULATING WASHER. INSULATION , Replaced By: A3094900037
999
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
999
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
999
SPACER TUBE FRONT EXHAUST PIPE,B 884219
999
REPAIR KIT , Replaced By: A3094900037
999
SUPPORT , Replaced By: A3164920316
999
EXHAUST PIPE ,4 282707, Replaced By: A3184923104, +001A3184920641, +001A3184923641, +001A3185440338, +001N000933008152, +001N071555060500, +001N913004008004
999
EXHAUST PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3184901719
999
EXHAUST PIPE ,949960-4 282707
999
BRACKET , Replaced By: A3144910341
999
SPACER TUBE EXHAUST SYSTEM TO SUBSTRUCTURE, 804703
999
BRACKET , Replaced By: A3184920641
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , Replaced By: A3184924304
999
EXHAUST MUFFLER , Replaced By: A3834900001
999
BRACKET AT MUFFLER,5 1522775 194472
999
CLAMP END PIECE TO EXHAUST PIPE 63.5 MM
