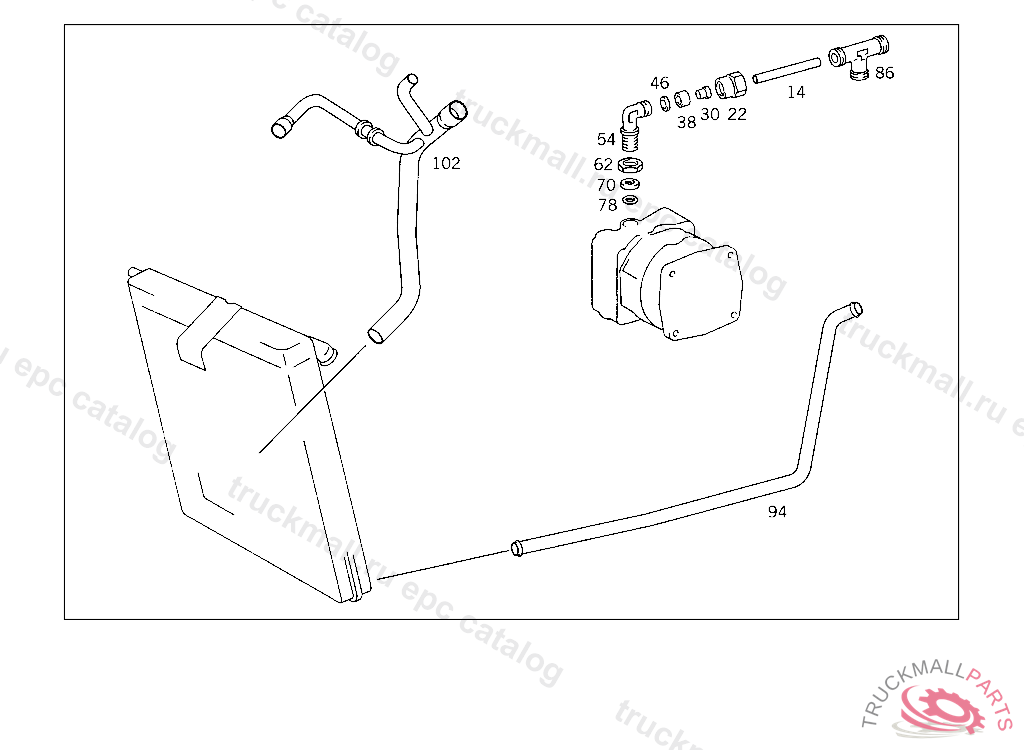

Поз.
Артикул
Описание
14
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
22
UNION NUT BUTT SCREW CONNECTION
30
GLAND LINE CONNECTION
38
THRUST RING BUTT SCREW CONNECTION
46
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
46
SEAL RING , Replaced By: N007603012121
54
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
62
NUT SUCTION LINE TO OIL PUMP
70
THRUST RING SUCTION LINE TO OIL PUMP
78
SEAL RING LINE CONNECTION
86
T-FITTING BETWEEN THE LINES
94
PIPE (HEATING PIPE)
102
HOSE FROM RADIATOR TO WATER PUMP
999
CLAMP STAY TO BRACKET
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW PIPE CLAMP
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017006020
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
HOSE FROM RADIATOR TO WATER PUMP,4 822761 FOR USE WITH MERCEDES-BENZ CAB
999
BRACKET , 318.351,352,353,354,372 FROM IDENT-NO. 4 497676,318.356,357,358,359,392 FROM IDENT-NO. 4 477458 ONLY ON VEHICLES HAVING MERCEDES-BENZ CAB
999
LOOM TIE LINE MOUNTING 280 MM
