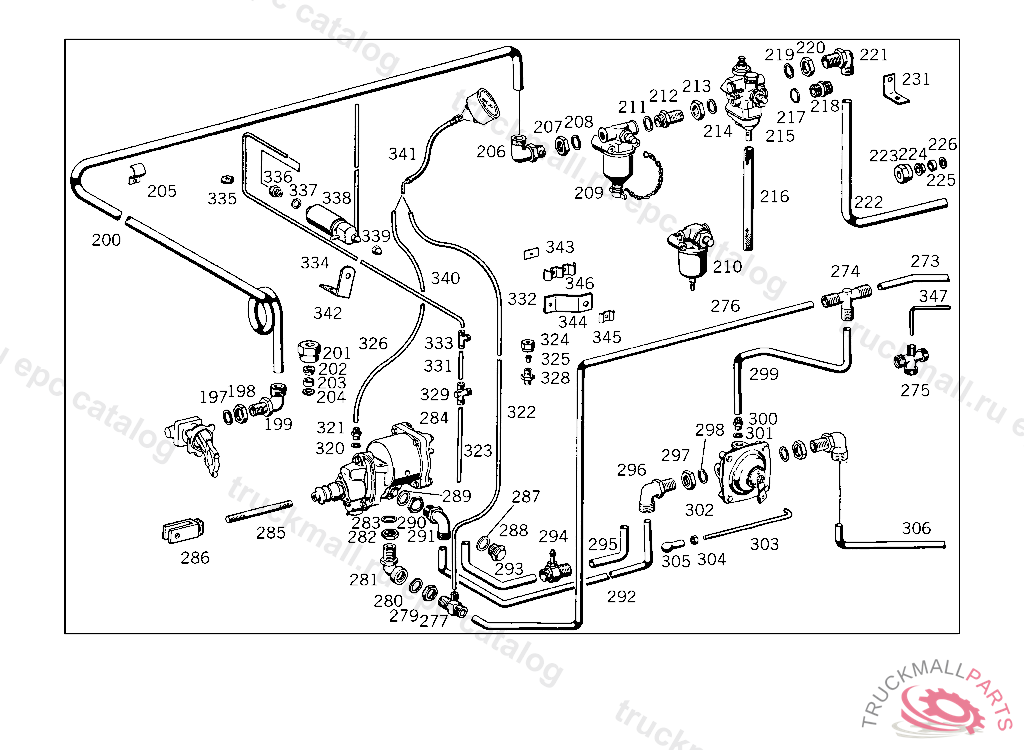

Поз.
Артикул
Описание
197
SEAL RING
198
NUT
199
ELBOW FITTING , BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
200
LINE 18 MM FROM AIR COMPRESSOR TO PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION, FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
201
UNION NUT TO 18-MM-DIA. COMPRESSED AIR LINES
202
SLIP RING TO 18-MM-DIA. COMPRESSED AIR LINES
203
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
204
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
205
CLAMP , Replaced By: A3049950120
205
CLAMP
205
CLAMP FEED LINE TO THERMOSTAT
206
ELBOW FITTING , BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
207
NUT
208
SEAL RING
209
TIRE INFLATOR CYLINDER
210
AIR CLEANERGRAU, ON SPECIAL REQUEST
211
SEAL RING LINE CONNECTION
212
DOUBLE FITTING BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR
213
NUT
214
SEAL RING
215
VALVE , FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78, Replaced By: A0004318906
215
PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION
216
HOSE , FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
217
SEAL RING LINE CONNECTION
218
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
219
SEAL RING
220
NUT
221
ELBOW FITTING
222
LINE 15 MM, ON SPECIAL REQUEST, H.D. OIL BATH AIR CLEANER
223
UNION NUT BUTT SCREW CONNECTION
224
SLIP RING BRAKE LINE COUPLING
225
THRUST RING BUTT SCREW CONNECTION
226
SEAL RING , Replaced By: N007603012121
226
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
231
BRACKET , 023243
273
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
274
T-FITTING
276
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
277
T-FITTING
279
NUT
280
SEAL RING
281
ELBOW FITTING
282
NUT
283
SEAL RING
284
BRAKE BOOSTER , Replaced By: A3444317014
285
ROD
286
YOKETO 312 430 43 92,344 430 70 92, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
287
SEAL RING LINE CONNECTION
288
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
288
SCREW PLUG AT TANK
289
SEAL RING
290
NUT
291
ELBOW FITTING
292
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
296
ELBOW FITTING
297
NUT
298
SEAL RING
299
LINE
299
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
300
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
301
SEAL RING LINE CONNECTION
302
BRAKE VALVE
303
ROD
304
NUT
305
BALL SOCKET
306
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
320
SEAL RING LINE CONNECTION
321
DOUBLE FITTING
322
PIPE LINE , Replaced By: A0004290001
322
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
323
PIPE LINE , ON SPECIAL REQUEST, COMPRESSED AIR WARNING INDICATOR
324
UNION NUT
325
GLAND , Replaced By: A0019901667
325
SEAL CONE
326
PIPE LINE , Replaced By: A0004290001
326
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
328
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
329
T-FITTING , ON SPECIAL REQUEST, COMPRESSED AIR WARNING INDICATOR LESS CONNECTION FITTING FOR TEST PRESSURE GAUGE
329
T-FITTING , ON SPECIAL REQUEST, COMPRESSED AIR WARNING INDICATOR LESS CONNECTION FITTING FOR TEST PRESSURE GAUGE
331
PIPE LINE , Replaced By: A0004290001
331
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
332
PIPE LINE , Replaced By: A0004290001
332
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
333
T-FITTING
334
PIPE LINE , Replaced By: A0004290001
334
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
335
GROMMET CLUTCH LINE TO BRACKET
336
DOUBLE FITTING
337
SEAL RING LINE CONNECTION
338
WARNING INDICATOR COMPRESSED AIR, 10/20 UP TO CHASSIS 991702, 50/60 UP TO CHASSIS 990446 EXCEPT FOR 508945-599999
339
CAP NUT
340
PIPE LINE , Replaced By: A0004290001
340
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
341
HOSE PRESSURE GAUGE
342
BRACKET WARNING PRESSURE INDICATOR
343
PLATE
344
BRACKET LINE MOUNTING, INAPPLICABLE TO SUPERCHARGING SYSTEM398035
345
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
345
CLAMP LINE MOUNTING
346
CLAMP
999
WASHER VIBRATION ABSORBER TO BRACKET
999
WASHER , Replaced By: N000433010510
999
HEADLESS SETSCREW
999
LOCK WASHER BRACKET TO FRAME
999
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
999
WASHER
999
WASHER
999
WASHER HORN TO ENGINE CROSS MEMBER
999
WASHER , 034 UP TO CHASSIS A 004589
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PINTO 345 431 70 16, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
COTTER PIN BRAKE CABLE TO BRAKE LEVER, 010 UP TO CHASSIS 023660 EXCEPT FOR,SEE FOOTNOTE 59 012 UP TO CHASSIS 049855 EXCEPT FOR,SEE FOOTNOTE 54
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PINTO 360 320 01 89
999
COTTER PIN ,000032
999
COTTER PIN
999
COTTER PIN
999
SCREW
999
SCREW MOUNTING CLAMPS TO SUBSTRUCTURE, FOOTNOTE 39 UP TO CHASSIS 020237
999
SCREW , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
SCREW SHIFT CASE TO SLOTTED GATE
999
SCREW BRACKET TO CAB CROSS MEMBER
999
SCREW DIODE CASE
999
SCREW LINE TO HOSE
999
CYLINDRICAL PIN DRAIN VALVE, UP TO CHASSIS 001731
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
999
HANDLE , Replaced By: A3124271220
999
PIN BRAKE SHOE MOUNTING BOLT
999
REPAIR KIT , Replaced By: A3124201178
999
PROTECTIVE CAP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
PIN FORKS TO LEVERS AT REAR AXLE TUBES
999
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
999
HOSE
999
BRACKET PRESSURE REGULATOR, UP TO IDENT NO. 693686 EXCEPT FOR:500001-599999
999
BRACKET LINE MOUNTING
999
BRACKET DISTRIBUTOR TO BRACKET, 815770
999
BRACKET BRACKET TO SEAT BOX, 035730
999
BRACKET TEST CONNECTION, FOOTNOTE 56 UP TO CHASSIS 035730
999
BRACKET , Replaced By: A3524202486
999
BRACKET , Replaced By: A3524202386
999
PIN , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
PIN , Replaced By: A3524270674
999
WASHER , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
BUSHING , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
LINE , FOOTNOTE 56 UP TO CHASSIS 035730, Replaced By: A3404200929
999
LINE , FOOTNOTE 56 FROM CHASSIS 035731
999
BRACKET , 656999
999
BRACKET , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
BEARING BRACKET , 656999
999
BEARING BRACKET , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
YOKE , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
PIPE LINE , Replaced By: A0004290001
999
PIPE LINE , Replaced By: A0004290001
999
ANGLE , Replaced By: A3414280040
999
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 3800 MM,4 478329
999
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
999
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
999
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 2600 MM
999
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
999
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 2200 MM,4 478329
999
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE
999
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1300 MM
999
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1",4 478495
999
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 900 MM
999
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 600 MM
999
LINE FROM BRAKE MASTER CYLINDER TO VALVE 250 MM
999
REPAIR KIT , Replaced By: A3384200282
999
REPAIR KIT , Replaced By: A3124231174, +004A3404210052, +004A3124211073, +002A3129933901
999
ROD , 015536
999
REPAIR KIT , Replaced By: A3284200138
999
PIPE LINE , NOT USED
999
PIPE LINE , NOT USED
999
LINE , ON SPECIAL REQUEST, TWO-CIRCUIT BRAKE, Replaced By: A3404202329
999
LINE , ON SPECIAL REQUEST, TWO-CIRCUIT BRAKE, Replaced By: A3404203929
999
REPAIR KIT , Replaced By: A3124201338, +001A1869904540, +001A3129934901, +001N001473004012
999
RESERVOIR ,5 936755, Replaced By: A0034322701, +002A0009970934
999
SCREW , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
LINE , ON SPECIAL REQUEST, HYDRAULIC BRAKE TEST CONNECTIONS, Replaced By: A3404204329
999
PIPE LINE FROM T-FITTING TO TEST CONNECTION, ON SPECIAL REQUEST, AIR BRAKE TEST CONNECTIONS
999
PIPE LINE , Replaced By: A0004290001
999
PIPE LINE , Replaced By: A0004290001
999
PIPE LINE , Replaced By: A0004290001
999
PIPE LINE , Replaced By: A0004290001
999
LINE , Replaced By: A3224297403
999
LINE FROM DOUBLE FITTING TO TIRE INFLATOR CYLINDER, L911 UP TO IDENT NO. 009606,L1112 UP TO IDENT NO. 013446
999
PIN , 020106-032173, Replaced By: A3524270274, +001A3524270176
999
ROLLER AS REQUIRED 17 MM
999
ROLLER AS REQUIRED 16,5 MM
999
ROLLER AS REQUIRED 19.5MM, UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
ROLLER AS REQUIRED 19MM, UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
SHIM LINE MOUNTING
999
PIN , 020105
999
BRAKE LINING ASBESTOS-FREE 12.30 MM, 013362
999
BRAKE LINING ASBESTOS-FREE 11.30 MM, 013362
999
LINE , 010506, Replaced By: A3404204029
999
BEARING BRACKET
