Поз.
Артикул
Описание

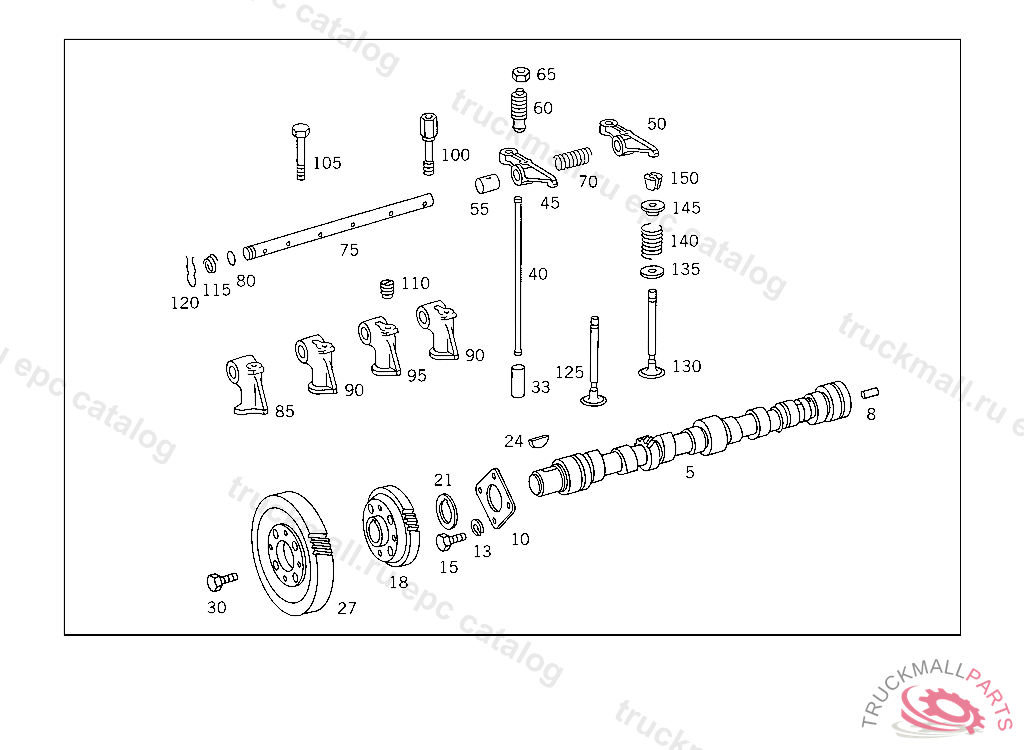

5
CAMSHAFT ,085523
5
CAMSHAFT ,085524 INAPPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
5
CAMSHAFT , ONLY APPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
8
CYLINDRICAL PIN
10
THRUST WASHER CAMSHAFT FIXING, 340.930 FROM ENGINE 085456 ONLY APPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
10
THRUST WASHER ,104742, 340.919/002-007/010-014 INAPPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
13
LOCK WASHER
15
SCREW COVER PLATE TO COVER PLATE
15
SCREW , Replaced By: A3529900704
15
SCREW COVER PLATE TO COVER PLATE
18
DRIVE GEAR
21
SPACER RING ,104742, 340.919/002-007/010-014 INAPPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
24
WOODRUFF KEY CRANKSHAFT
27
CAMSHAFT GEAR
30
SCREW BRACKET TO CONSOLE M 8X25
33
VALVE TAPPET STANDARD 27.98 MM-27.99 MM
33
VALVE TAPPET REPAIR SIZE III 28.73 MM - 28.74 MM
33
VALVE TAPPET REPAIR SIZE II 28.48 MM-28.49 MM
33
VALVE TAPPET REPAIR SIZE I 28.18 MM-28.19 MM
33
VALVE TAPPET , Replaced By: A3520540801
33
VALVE TAPPET , Replaced By: A3520540701
33
VALVE TAPPET , Replaced By: A3520540601
33
VALVE TAPPET , Replaced By: A3520540501
40
PUSH ROD
40
PUSH ROD
40
PUSH ROD , Replaced By: A3520540205
40
PUSH ROD
45
ROCKER ARM LEFT NO.1,NO.3,NO.5,NO.7
45
ROCKER ARMNO. 1, NO. 3, NO. 5, NO. 7
50
ROCKER ARMNO. 2, NO. 4, NO. 6, NO. 8
50
ROCKER ARMNO.2,NO.4,NO.6,NO.7
55
BUSHINGTO 352 050 06 34,352 050 10 33
55
BUSHINGTO 366 050 05 33,04 34
55
BUSHINGTO 352 050 11 34,352 050 15 33
60
BALL PIN ROCKER ARM
65
NUT
65
NUT , Replaced By: A4229900051
70
SPRING LONG,ROCKER ARM SPACING
75
ROCKER ARM SPINDLE
80
EXPANSION PLUG LATERAL P.T.O. WITH REVERSE SPEED
85
ROCKER ARM BRACKET OIL SUPPLY NO.1
85
ROCKER ARM BRACKET , Replaced By: A3520550610
90
ROCKER ARM BRACKET , Replaced By: A3520550410
90
ROCKER ARM BRACKETNO.2,5,6
95
ROCKER ARM BRACKETNO.3
100
SCREW
105
SCREW , Replaced By: A0029903804
110
HEADLESS SETSCREW PLANET GEAR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
115
SPRING
120
SPRING
125
INTAKE VALVE , Replaced By: A3520500026
130
EXHAUST VALVE
130
EXHAUST VALVE
130
EXHAUST VALVE , Replaced By: A3660500627
130
EXHAUST VALVE , Replaced By: A3660500027
135
WASHER
140
VALVE SPRING
145
SPRING RETAINER
150
VALVE COLLET
150
VALVE COLLET
