Поз.
Артикул
Описание

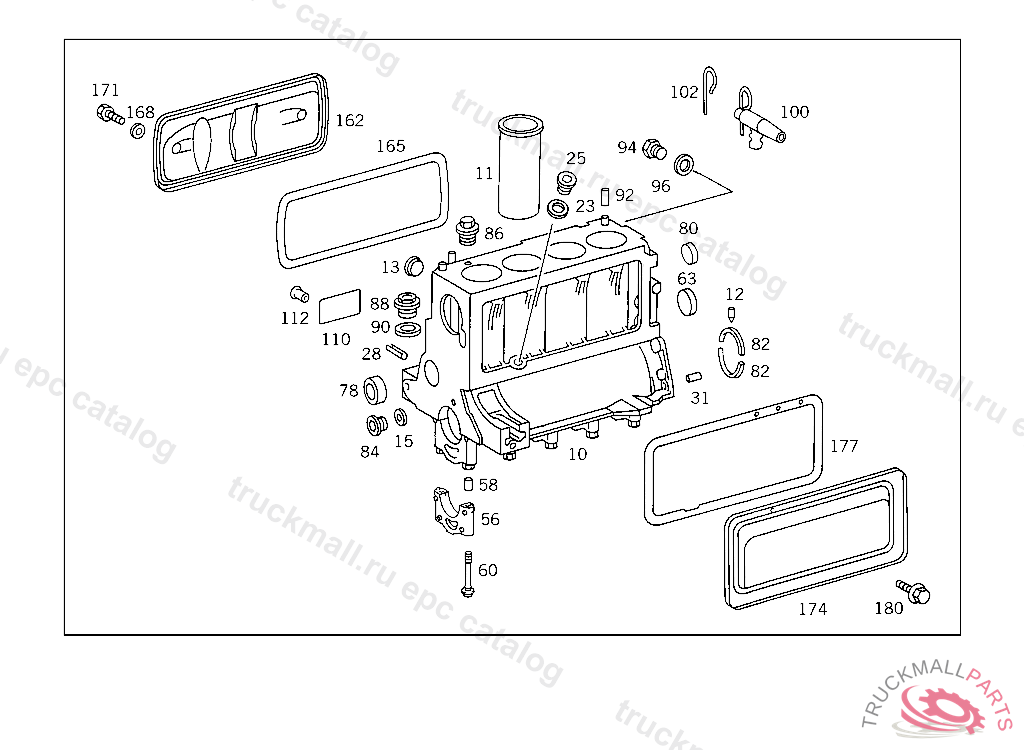

10
CRANKCASE ,A 003511
10
CRANKCASE AIR COMPRESSOR WITH FOUR-HOLE MOUNTING,128243
10
CRANKCASE AIR COMPRESSOR WITH THREE-HOLE MOUNTING,A 003512
10
CRANKCASE ,128242, Replaced By: A3140106608, +001A3640150504, +001A3640150160, +003N914126008029
11
CYLINDER LINER , Replaced By: A3620110310
11
CYLINDER LINER , Replaced By: A3620110310
11
CYLINDER LINER , Replaced By: A3620110310
11
CYLINDER LINER
11
CYLINDER LINER
11
CYLINDER LINER
12
SAFETY PIN. PIN ,A 003512
13
SCREW PLUG CORE HOLE IN PUSH ROD CHAMBER
15
SEAL RING SHIFT CASE,TOP
23
SEAL RING , 001778
25
SCREW PLUG , Replaced By: A3149970032
25
SCREW PLUG
28
SLEEVE , UP TO ENGINE 289000 YEAR OF MANUFACTURE 1993
31
CYLINDRICAL PIN
56
BEARING CAPNO.5,A 003511
56
BEARING CAPNO.5,A 003512
56
BEARING CAPNO.2
56
BEARING CAPNO.1,3,4
56
BEARING CAP , Replaced By: A3520100923
56
BEARING CAP , Replaced By: A3520100823
56
BEARING CAP , Replaced By: A3520101023
56
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE, Replaced By: A3660100223
56
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 104742, Replaced By: A3660100023
56
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE, Replaced By: A3660100323
56
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE, Replaced By: A3660100123
58
CYLINDRICAL PIN
58
DOWEL PIN CRANKSHAFT BEARING CAP TO 366 010 03 23, 02 23, 03 23
60
SCREW
63
EXPANSION PLUG
63
EXPANSION PLUG , Replaced By: A3529970320
78
CAMSHAFT BEARING , Replaced By: A3520510010
78
CAMSHAFT BEARINGNO.2,NO.3
78
CAMSHAFT BEARINGNO.1
78
CAMSHAFT BEARINGNO.2,NO.3
80
EXPANSION PLUG , Replaced By: A4039970620
80
EXPANSION PLUG P.T.O. HOUSING
82
SEAL RING , Replaced By: A0019973141
82
SEAL RING , Replaced By: A0019974141
82
SEAL RING CRANKSHAFT SEALING,REAR,A 003512
84
SCREW PLUG
84
SCREW PLUG , Replaced By: N000908016000
84
SCREW PLUG , Replaced By: N000908016000
84
SCREW PLUG , Replaced By: N000908016000
88
SCREW PLUG , Replaced By: A3149900066
88
INTERMEDIATE PIECE
90
SEAL RING LINE TO OIL PUMP
92
CYLINDRICAL PIN CYLINDER HEAD TO CYLINDER CRANKCASE
94
SCREW PLUG WATER DRAIN
96
SEAL RING VALVE TO VALVE,K 025179
100
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
102
SPRING ,4 263013
110
ENGINE NUMBER PLATE
112
GROOVED NAIL
162
COVER PUSH ROD CHAMBER COVER,128243
162
COVER PUSH ROD CHAMBER COVER,128242
165
SEAL RING PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE,128243
165
GASKET PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE,128242
165
SEAL RING , Replaced By: A3640150360
168
SEAL RING PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE
171
SCREW PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE M8X40,128243
171
SCREW PROPELLER SHAFT TO COUPLING FLANGE
174
CYLINDER SIDE COVER
177
GASKET CYLINDER SIDE COVER
177
GASKET , Replaced By: A3640150180
180
COMBINATION BOLT CYLINDER SIDE COVER TO CYLINDER CRANKCASE M8X18
999
SEAL RING , Replaced By: A0019974141
999
SEAL RING , Replaced By: A0149971647
999
SEAL RING
999
GASKET KIT OIL PAN
999
GASKET KIT OIL PAN
999
GASKET CYLINDER HEAD COVER TO CYLINDER HEAD
999
CYLINDER HEAD GASKET
999
CYLINDER HEAD GASKET
999
GASKET EXHAUST MANIFOLD
999
GASKET KIT , Replaced By: A3400100080
999
GASKET KIT CYLINDER CRANKCASE
999
REPAIR KIT
999
GASKET KIT CYLINDER HEAD, FOR BREAK-DOWN OF GASKET KIT,SEE END OF GROUP 01
999
GASKET TIMING CASE TO CYLINDER CRANKCASE
999
SEAL RING
999
GASKET TIMING CASE COVER TO TIMING CASE
999
GASKET COVER TO TIMING CASE
999
GASKET TIMING CASE LOCK
999
GASKET INJECTION PUMP TO TIMING CASE
999
SEAL
999
GASKET , Replaced By: A3642010280
999
SEAL RING DELIVERY LINES
999
GASKET CONNECTOR TO ENGINE
999
GASKET WATER PUMP TO CYLINDER CRANKCASE
999
GASKET TIMING CASE TO CYLINDER CRANKCASE
999
SEAL RING BRACKET TO CYLINDER HEAD
999
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
