Поз.
Артикул
Описание

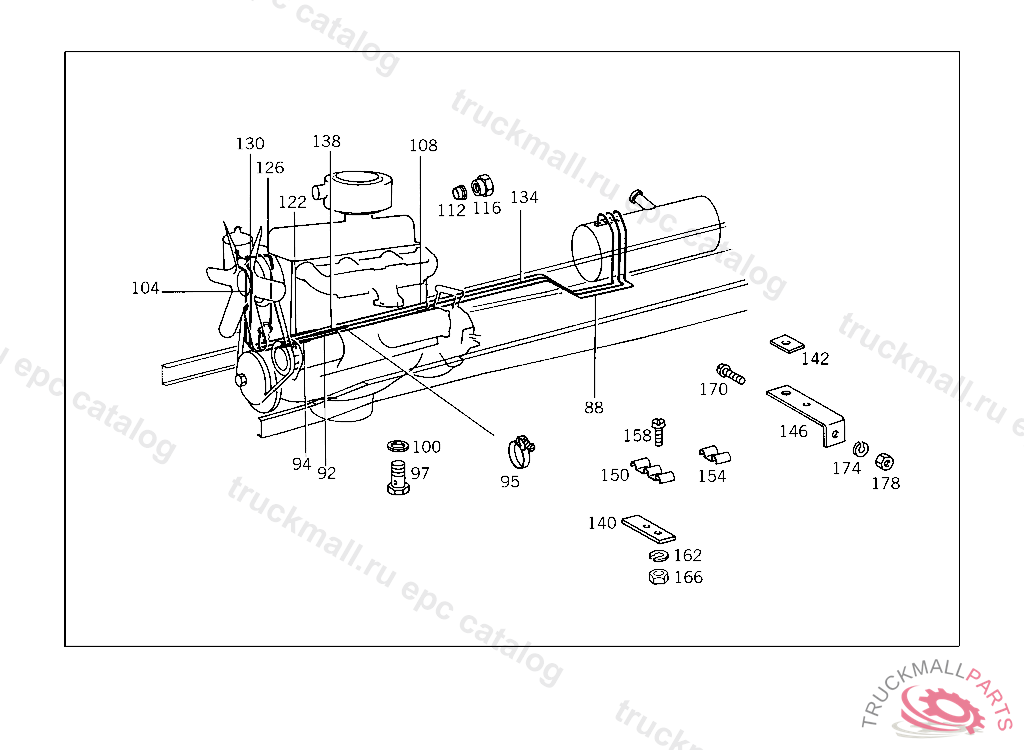

88
LINE FROM TANK TO RUBBER HOSE,NO. 341.042,044A 073578
92
LINE FUEL LINE LEADING TO FEED PUMP
94
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
95
LOOM TIE , Replaced By: A0029978790
97
HOLLOW SCREW
100
SEAL RING FUEL LINE TO FEED PUMP
104
LINE RETURN, PART I, ON OM 321 ENGINE
108
LINE FROM RUBBER HOSE TO TANK
112
SEAL CONE
116
NUT. UNION NUT RETURN
122
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
126
HOSE RETURN
130
LINE RETURN, PART I, ON OM 321 ENGINE
138
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
140
BRACKET FUEL LINES
142
BRACKET FUEL LINE
146
150
CLAMP LINE MOUNTING
154
CLAMP
154
CLAMP , Replaced By: A3179950832
158
SCREW CABLE HARNESS TO BRACKET M 6X20
162
LOCK WASHER CLAMP TO BRACKET
166
NUT BALL PIVOT TO LEVER
170
SCREW CABLE HARNESS TO BRACKET M 6X20
174
LOCK WASHER CLAMP TO BRACKET
178
NUT BALL PIVOT TO LEVER
999
BRACKET , Replaced By: A3414760136
999
DICHTUNG. GASKET , Replaced By: A3524710080
999
LINE , FOR DOUBLE FUEL FILTER
999
LINE , Replaced By: A3414701464
999
LINE FROM CYLINDER HEAD TO HOSE
999
COVER FUEL TANK
999
FUEL TANK LESS SENDER UNIT
999
999
999
LINE FROM RETURN LINE TO FUEL TANK
999
FUEL TANK WITH SENDER UNIT
999
999
FILLER CAP
999
SEAL RING
999
SCREW COMPRESSED AIR ELBOW
999
SCREW OIL TANK TO BRACKET
999
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
999
NUT LEVER TO SHIFTING SHAFT
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
LOOM TIE
999
LOCK WASHER
999
BANJO UNION FUEL LINE TO FUEL TANK
999
BANJO UNION
999
UNION NUT , Replaced By: N915017010200
