Поз.
Артикул
Описание

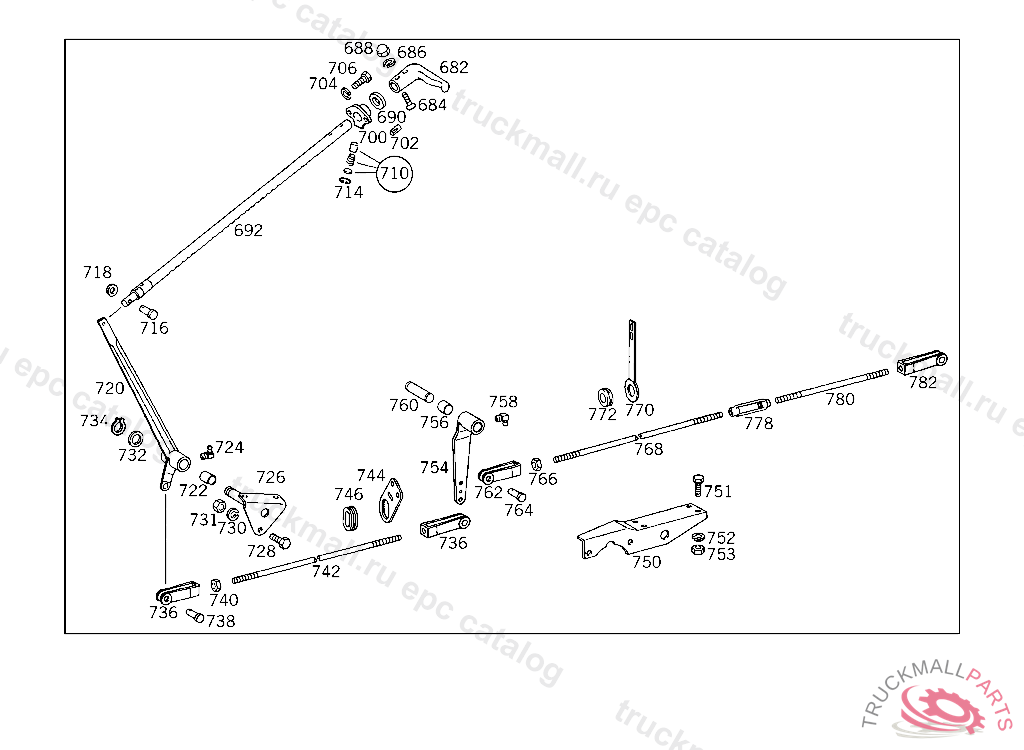

682
HANDLETO 341 420 00 88
682
HANDLE
684
WOOD SCREWTO 341 420 00 88
684
SCREW
686
LOCK WASHER CLAMP TO BRACKET
688
CAP NUTTO 353 420 00 88
690
DAMPING RING
700
BEARING BRACKET
702
GROOVED PIN
704
LOCK WASHER
706
SCREW
710
REPAIR KIT , Replaced By: A3144200092
710
REPAIR KIT
714
LOCK RING
716
PIN ROD TO HAND BRAKE LEVER
718
WASHER CLUTCH LINING WEAR INDICATOR
722
BUSHING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
724
GREASE NIPPLE
730
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
731
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
732
WASHER BRAKE LEVER TO BEARING BRACKET, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
734
LOCK RING22X1.2,TO 001 431 71 14
736
END PIECE
738
PIN , Replaced By: N001434010009
738
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
740
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
744
BRACKET
746
GROMMET
751
SCREW OIL TANK TO BRACKET
752
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
753
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
756
BUSHING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
758
GREASE NIPPLE
760
PIN
762
END PIECE
764
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
764
PIN , Replaced By: N001434010009
766
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
772
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
778
TURNBUCKLE
780
ROD
782
END PIECE
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BRAKE HOSE REAR 450 MM
999
999
BRAKE HOSE REAR, USED WITH HYDRAULIC BRAKE,UP TO IDENT NO. A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
WASHER , Replaced By: A0004312176
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING
999
999
BRAKE HOSE , Replaced By: A0004289935
999
999
LINE FROM PRESSURE REGULATOR TO AIR RESERVOIR, L911 UP TO IDENT NO. 009606,L1112 UP TO IDENT NO. 013446
999
SCREW , Replaced By: H993414320006
999
REPAIR KIT , Replaced By: A3415867242
999
999
BRAKE SHOE LESS LINING
999
BRAKE LEVER WITH SHAFT, 005081
999
SPRING , Replaced By: A3029930310
999
PIVOT PIN , 037393, Replaced By: A3124211318, +001N900055022301
999
SPACER RING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
PROTECTIVE CAP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
PIVOT PIN , 037393, Replaced By: A3124231818, +001N900055022301
999
SPACER WASHER0,2 MM, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SPACER WASHER1.0 MM, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
PIVOT PIN , 006466-037393, Replaced By: A3124231918, +001N900055022301
999
BUSHING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
LEVER RIGHT
999
LEVER LEFT, ON LEFT DOUBLE LEVER SHAFT
999
SPACER RING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
CUP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
ANGLE , USED WITH HYDRAULIC BRAKE,UP TO IDENT NO. A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
999
RIVET
999
HOSE
999
END PIECE , Replaced By: A3224200347, +001A3529910707
999
LINE , Replaced By: A3224209728
999
LINE , Replaced By: A3224209928
999
BRAKE SHOE REPAIR SIZE I 7.0 MM
999
999
BRAKE SHOE REPAIR SIZE II 8.0 MM
999
BRAKE SHOE REPAIR SIZE I 7.0 MM
999
BRAKE SHOE REPAIR SIZE II 8.0 MM
999
BRAKE SHOE REPAIR SIZE I 11 MM
999
999
BRAKE SHOE REPAIR SIZE II 12 MM
999
BRAKE LINING7.3 MM, 013362
999
BRAKE LINING8.3 MM, 013362
999
BRAKE LINING11.30 MM, 013362
999
BRAKE LINING12.30 MM, 013362
999
LINE , Replaced By: A0414290202
999
RESERVOIR , Replaced By: A3454308205
999
999
999
999
BEARING BRACKET
999
LINE FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE, L911 UP TO IDENT NO. A 009531,L1112 UP TO IDENT NO. A 013091 L911 FROM IDENT NO. A 010218,L1112 FROM IDENT NO. A 013669
999
SPHERICAL PIECE , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL
999
LINE FROM DISTRIBUTOR TO RIGHT REAR WHEEL,A 059728
999
BRACKET , 002072
999
999
BRAKE INTERMEDIATE SHAFT ,A 006294, Replaced By: A3224201480
999
LINE FROM BRAKE MASTER CYLINDER TO REAR AXLE,A 030542
999
999
999
BRACKET , Replaced By: A3524282040
999
BRAKE HOSE
999
LINE
999
999
ELBOW FITTING AT TRUCK-TRACTOR BRAKE VALVE
999
999
PROTECTIVE CAP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
LINE FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE, L911 FROM IDEN TNO. A 009532-A 010217,L1112 FROM IDENT NO. A 013092-A 13668
999
LINE FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE, L911 FROM IDEN TNO. A 009532-A 010217,L1112 FROM IDENT NO. A 013092-A 13668
999
BRACKET , Replaced By: A3414280040
999
LINE18X1.5X2640 MM,A 027954
999
SCREW ,511032
999
SCREW DIODE CASE
999
SCREW ,A 027954
999
SCREW BRAKE LINE TO SIDE AND CROSS MEMBERS M 5X10
999
SCREW CONTACTOR
999
COTTER PIN ROD TO BRAKE PEDAL
999
COTTER PIN
999
COTTER PIN , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
COTTER PIN
999
COTTER PIN , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
COTTER PIN SHIFT CASE
999
COTTER PINTO 000 431 24 05
999
COTTER PINTO 000 431 24 05
999
COTTER PIN
999
WASHER , Replaced By: N000125008443
999
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
999
WASHER 10,5 DIN 433. WASHER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SCREW
999
SCREW RIGHT COVERING
999
SCREW COMPRESSED AIR ELBOW
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017008034
999
SCREW BRACKET TO SUBSTRUCTURE
999
SCREW INTERMEDIATE PIECE,ADAPTER HOUSING
999
SCREW , Replaced By: N304017010002
999
NUT LEVER TO SHIFTING SHAFT
999
NUT L.H. THREAD
999
PIN , Replaced By: N001434010009
999
PIN , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
PIN , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
GROOVED PIN PISTOL-GRIP HAND BRAKE
999
NUT TORSION BAR TO BEARING BRACKET,5 904660
999
LOCK PLATE TORSION BAR TO BEARING BRACKET,5 904660
999
DOUBLE FITTING
999
SPRING WASHER PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER
999
LOCK RING , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
PULL ROD FROM INTERMEDIATE LEVER TO BRAKE INTERMEDIATE SHAFT
999
999
LOCK WASHER LINE MOUNTING
