Поз.
Артикул
Описание

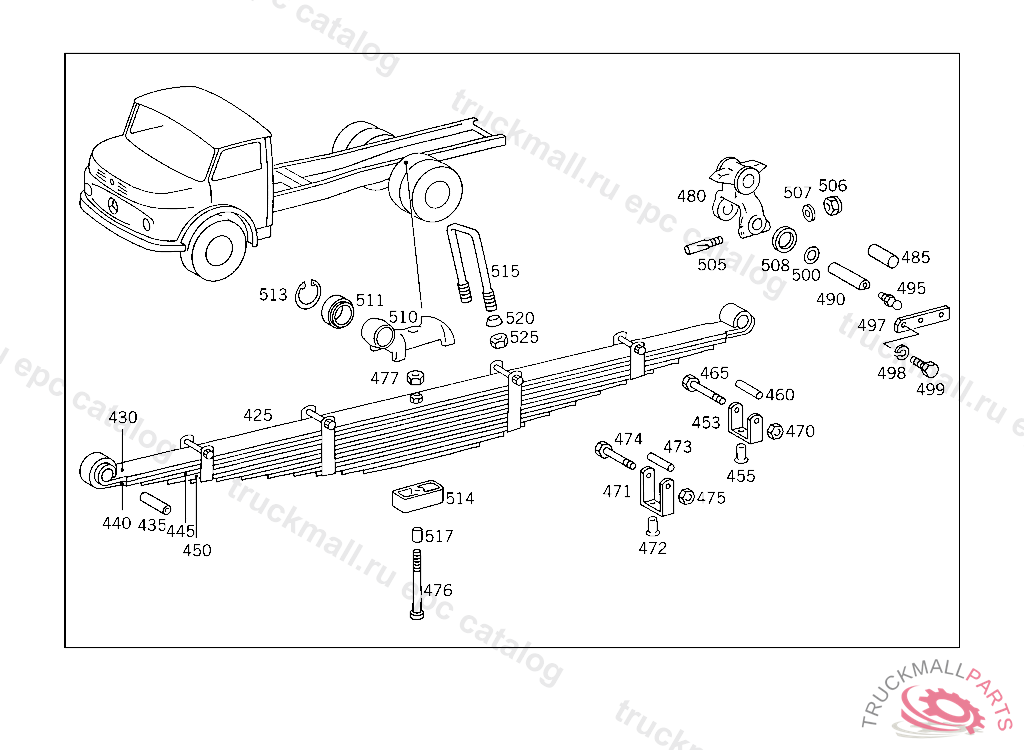

425
REAR SPRING 12-LEAF,A 006845
425
REAR SPRING 12-LEAF
430
SPRING LEAFNO.1
430
SPRING LEAFNO.1,A 006845
435
BUSHING
435
BUSHING ,A 006845
435
BUSHING ,A 006845
435
BUSHING
440
SPRING LEAFNO.2,A 006845
440
SPRING LEAFNO.2
445
SPRING LEAFNO.3,A 006845
445
SPRING LEAFNO.3
450
SPRING LEAFNO.4
450
SPRING LEAFNO.4,A 006845
453
SPRING CLAMP AT SPRING LEAF NO.5
455
RIVET SPRING CLAMP TO SPRING LEAF
460
SPACER TUBE , Replaced By: A3140720253
465
SCREW
470
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
471
SPRING CLAMP AT SPRING LEAF NO.10
472
RIVET SPRING CLAMP TO SPRING LEAF
472
RIVET SPRING CLAMP TO SPRING LEAF
473
SPACER TUBE , Replaced By: A3140720253
474
SCREW
475
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
476
SPRING BOLT
477
NUT SPRING BOLT
480
SHACKLE REAR SPRING SUSPENSION
480
SHACKLE ,A 006845
485
BUSHING ,A 006845
485
BUSHING
485
BUSHING
490
SHACKLE PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3923257130
490
SHACKLE PIN , Replaced By: A3855860232
490
SHACKLE PIN ,A 006845
490
SHACKLE PIN REAR SPRING TO SPRING SHACKLE, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
490
SHACKLE PIN REAR SPRING TO REAR SPRING FRONT BRACKET
495
GREASE NIPPLE PROTECTIVE TUBE
497
LOCK ,A 006845
497
LOCK ,A 006845
498
LOCK WASHER
499
SCREW
500
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
500
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
505
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
506
NUT ,A 006846
507
WASHER , Replaced By: N000125010532
508
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
510
PLATE , Replaced By: A3833250031
510
PLATE
511
JOINT BEARING TORSION BAR TO LINK,5 903513
511
JOINT BEARING TORSION BAR TO LINK,5 903513
513
LOCK RING TORSION BAR TO LINK,5 903513
515
U-BOLT FRONT SPRINGS TO FRONT AXLE 270 MM
515
U-BOLT REAR SPRING TO REAR AXLE
515
U-BOLT FRONT SPRINGS TO FRONT AXLE 280 MM
515
U-BOLT IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 321 351 07 25
520
WASHER FRONT SPRINGS TO FRONT AXLE
525
NUT
999
RUBBER BUFFER , Replaced By: A0003230785
999
SHACKLE PIN , Replaced By: A3413227130
