Поз.
Артикул
Описание
3

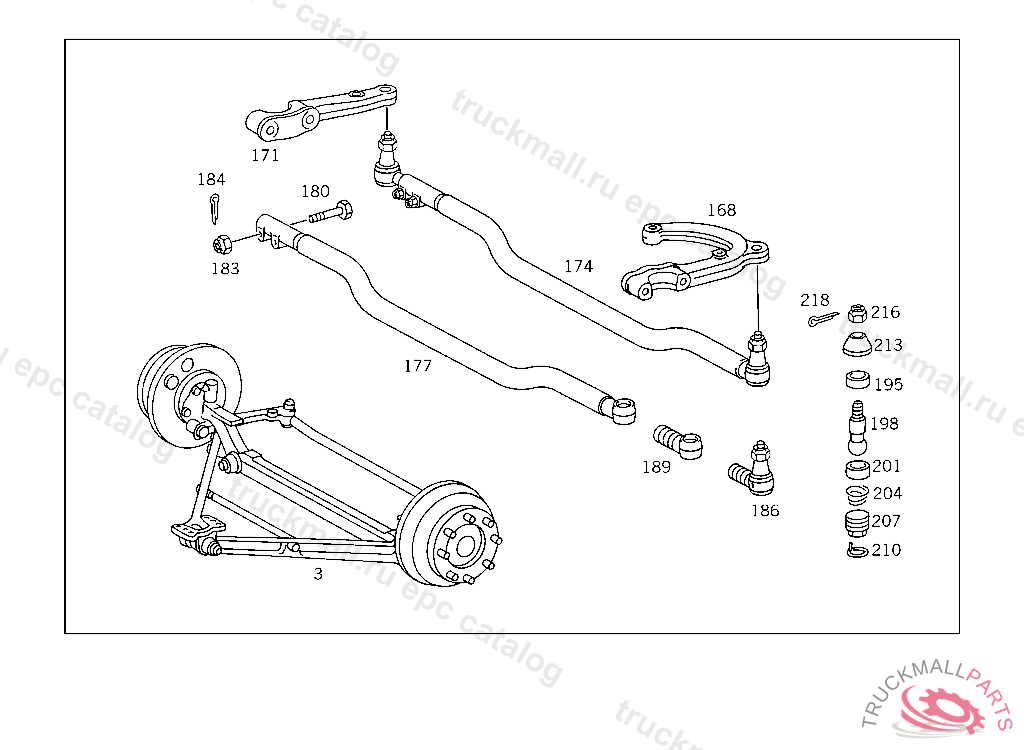

FRONT AXLE
3
168
168
STEERING ARM LEFT
171
STEERING ARM RIGHT
171
174
174
174
177
177
180
SCREW DRAG LINK END TO DRAG LINK, 341.250 UP TO CHASSIS A 002103
183
NUT , L 1113 FROM CHASSIS 071990,LP/LPO 1113 FROM CHASSIS 071679 344.030,032,033,040,041,057,058 UP TO CHASSIS 415524,UP TO CHASSIS SEE SPARE PARTS LIST 732.7
184
COTTER PIN
186
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0003309335
186
BALL JOINT , Replaced By: A0013300135
186
186
189
189
189
189
189
189
195
BALL SOCKET , Replaced By: A0005860033
195
BALL SOCKETLEMFOERDER
198
BALL PIVOT
201
BALL SOCKETLEMFOERDER
201
BALL SOCKET , Replaced By: A0004630061, +001A0004631656, +001A0009930105
204
204
SPRING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0009930105, +001A0004631656, +001A0004630061
204
SPRINGLEHMFOERDER
204
SPRING
207
LOCKING CAP
207
LOCKING CAP , Replaced By: A0004631656, +001A0004630061, +001A0009930105
207
207
LOCKING CAPLEMFOERDER
210
SNAP RINGLEMFOERDER
210
SNAP RING , 650871
213
DUST CAP
213
DUST CAPLEMFOERDER
216
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
216
NUT DRAG LINK TO LEVER
218
COTTER PIN
218
COTTER PINROCKINGER TYP 260 G140
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003301185
999
JOINT RIGHT TO 352 330 07 03
999
JOINT , Replaced By: A0004632229
999
RUBBER RING BOTTOM
999
RUBBER RING TOP
999
999
999
999
BALL JOINT , Replaced By: A0004633429
999
ROLLER BEARING , Replaced By: A0009815418
999
ROLLER BEARING , 345.000-024.033 UP TO CHASSIS 588185 FROM CHASSIS 588186 SEE MICROFICHE 815,BM 732.7, Replaced By: A0009815418
999
ROLLER BEARING , Replaced By: A0009815418
999
TAPERED ROLLER BEARING , Replaced By: A0009811918
999
SEAL RING
999
WHEEL MOUNTING BOLT
999
999
999
BUSHING , Replaced By: A3213320048
999
SEALING CAP , 10/20 UP TO CHASSIS 796990, 50/60 UP TO CHASSIS 790758 EXCEPT FOR, 500001-599999
999
SEAL RING , 344.030,032,033,040,041,057,058 UP TO CHASSIS 415524,UP TO CHASSIS SEE SPARE PARTS LIST 732.7
999
999
COTTER PIN SHIFT CASE
999
NUT STEERING BRACKET TO FRAME
999
999
