Поз.
Артикул
Описание

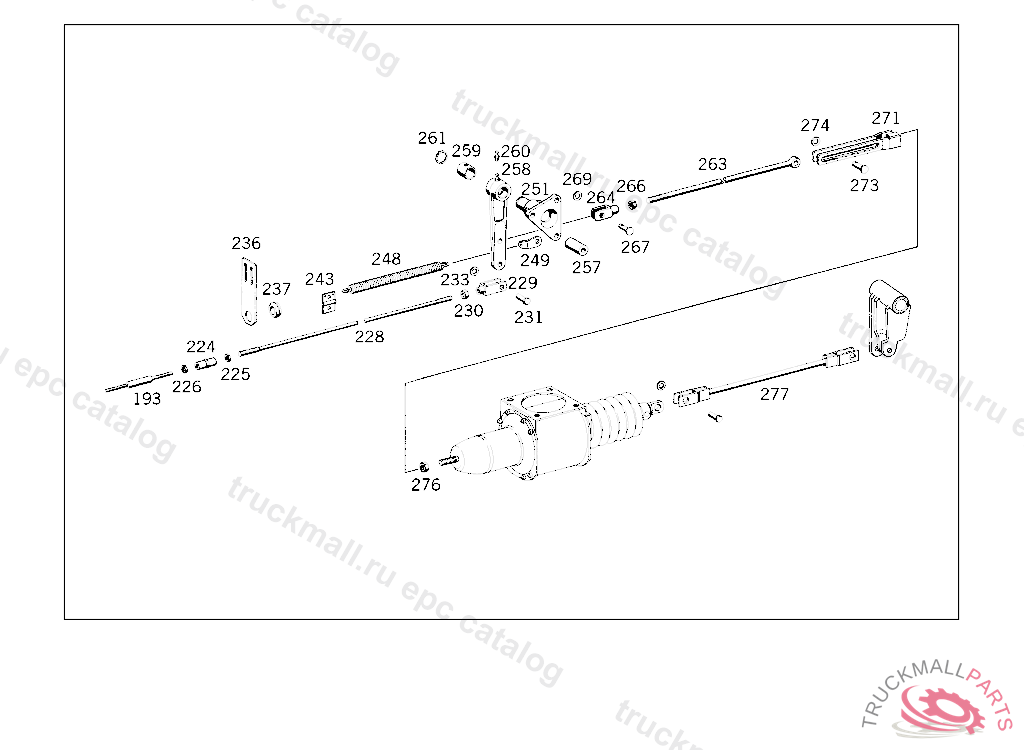

193
BRAKE CABLE , 002073
224
TURNBUCKLE
225
NUT L.H. THREAD
226
NUT
226
NUT , Replaced By: N304032010002
228
PULL ROD FROM TURNBUCKLE TO INTERMEDIATE LEVER
229
YOKE PULL ROD TO LEVER
229
YOKE , Replaced By: A0009961501
230
NUT
230
NUT , Replaced By: N304032010002
231
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
233
WASHER VIBRATION ABSORBER TO BRACKET
233
WASHER , Replaced By: N000433010510
236
BRACKET
237
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
243
BRACKET
248
SPRING
249
BRACKET
251
BEARING BRACKET HAND BRAKE INTERMEDIATE LEVER, 660650
257
SPACER TUBE
258
LEVER FRONT
259
BUSHING , 660650
260
GREASE NIPPLE PROTECTIVE TUBE
261
LOCK RING P.T.O.
263
SCREW YOKE TO BRAKE INTERMEDIATE SHAFT
264
YOKE POWER CYLINDER TO EXHAUST SHUNT FLAP
266
NUT STRAP TO SUPPORT
267
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
267
PIN , Replaced By: A3529910107
269
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
269
WASHER , Replaced By: N000433013010
271
YOKE AT HAND BRAKE BOOSTER
273
PIN SHIFTING CYLINDER, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
274
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
274
WASHER , Replaced By: N000433013010
276
NUT BRACKET TO SIDE MEMBER
277
ROD FROM HAND BRAKE BOOSTER TO REAR INTERMEDIATE LEVER
999
CABLE CONNECTOR1.0-2.6 MM2
999
BOOTTO 000 431 16 14
999
BUSHINGWABCO,5 433388
999
PIN
999
VALVE SEAT RINGWABCO,5 433388
999
SEAL RINGTO 000 429 75 30
999
LINE , Replaced By: A0005516256
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE CONE , Replaced By: A0004290391
999
VALVE CONEBOSCH
999
CONNECTOR , Replaced By: A0004312031, +001N074302022304
999
DIAPHRAGM
999
SPRINGTO 000 429 75 30
999
DIAPHRAGMTO 001 429 48 44
999
SHUT-OFF COCK , Replaced By: A0004291431
999
CONNECTOR , Replaced By: A0004312031, +001A0004291538
999
COVERTO 000 429 48 30
999
COVERWABCO
999
VALVE (OVERFLOW VALVE)
999
BRAKE LINE COUPLING , Replaced By: A0004297530
999
SHUT-OFF COCK
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SEAL RINGTO 000 429 16 31,4 940458
999
BRAKE LINE COUPLING
999
BRAKE LINE COUPLING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004296730
999
VALVE , Replaced By: A0004299244
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
VALVE (OVERFLOW VALVE)
999
VALVE
999
VALVE PARKING BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
REPAIR KITKNORR
999
VALVE , ON 343.1 UP TO CHASSIS 601715 ON 343.3 UP TO CHASSIS 601550, Replaced By: A0004305181
999
GASKET34X2X6 MM,GRAU
999
VALVE SEATGRAU
999
VALVE , ON 343.1 UP TO CHASSIS 601715 ON 343.3 UP TO CHASSIS 601550
999
SEAL RINGTO 000 431 16 14
999
SPRING , ON 343.1 UP TO CHASSIS 601715 ON 343.3 UP TO CHASSIS 601550
999
CUP
999
VALVE , Replaced By: A0004320807
999
RESERVOIR , Replaced By: A0034322701
999
COVERTO 000 429 16 30,BOSCH
999
SPRING CAPSULETO 000 429 16 30
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE DISCTO 000 429 48 30
999
GASKETTO 000 429 16 30
999
PLUG SOCKET , Replaced By: A3805400181
999
BOOT
999
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
999
PIN BUSHING , Replaced By: A0075458226
999
PLUG
999
REPAIR KITTO 000 429 14 31,5 116581
999
REPAIR KIT
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
RIVET , Replaced By: N910005012080
999
RIVET , Replaced By: N910005012020
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 24X1,5 129167
999
RIVET , Replaced By: N910005012020
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
999
ELBOW FITTING ,4 412125
999
SPRINGTO 000 429 16 30
999
SPRINGTO 000 429 16 30
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
CLAMP LINE CONNECTION
999
FITTING , Replaced By: A0009970171
999
HANDLETO 000 429 16 31,4 940458
999
VALVE (RELAY VALVE) GRAU
999
VALVE , Replaced By: A0034295244
999
VALVE OVERFLOW VALVE
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
PLUG HOUSING 6-POLE
999
PLUG HOUSING BIPOLAR,4 231689
999
PIN BUSHING HOUSING 8-POLE
999
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
999
PIN BUSHING HOUSING BIPOLAR
999
SEAL RINGTO 000 429 16 30
999
SEAL RINGTO 001 431 37 05,4 375193
999
FITTING , Replaced By: A0039979072
999
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
999
PLUG HOUSING 4-POLE
999
REPAIR KITKNORR
999
REPAIR KITWABCO
999
TS DOUBLE FITTING SOLENOID VALVE
999
VALVE OVERFLOW VALVE
999
VALVE RELAY VALVE KNORR
999
FITTING , Replaced By: A0029906071
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING *** 47 X 2.5,TO 000 431 12 14
999
SEAL RINGTO 000 429 16 30
999
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
999
SEAL RINGTO 000 429 16 31,4 940458
999
CLAMP FUEL LINE TO BRACKET
999
CLAMP
999
CLAMP DELIVERY AND RETURN LINES
999
PAWL
999
BRACKET FLEXIBLE SHAFT TO TRANSMISSION
999
BRACKET , Replaced By: A3344270041
999
CLAMP
999
CLAMP ELECTRIC CABLE TO FRAME SIDE MEMBER
999
CLAMP COMPRESSED AIR LINE TO BRACKET
999
CLAMP , Replaced By: A3129952420
999
GUIDE BUSHING TWO-WAY VALVE TO FRAME
999
TOOTHED SEGMENT
999
HANDLE
999
CLAMP , Replaced By: A1109950401
999
ELECTRIC CABLE
999
PIN
999
SPRING , Replaced By: A3529930610
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
WASHER AS REQUIRED 2.00MM, UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
BUSHING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
WASHER AS REQUIRED 2.3MM, UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
BRACKET
999
ADJUSTING LEVER
999
BRACKET
999
BRACKET
999
STRAP
999
SPACER TUBE , Replaced By: A3094310249
999
BASE AIR RESERVOIR
999
CLAMP
999
SPACER TUBE CAB
999
BEARING BRACKET
999
PARKING BRAKE
999
BRAKE LEVER
999
ROD FROM HAND BRAKE LEVER TO HAND BRAKE BOOSTER
999
ROD
999
ROD
999
PAWL ROD
999
BRACKET
999
BRACKET RELAY VALVE
999
BASE AIR RESERVOIR,5 317650
999
BEARING ,5 0579045 210003, Replaced By: A3434600237, +001A3524623101, +002A0119815110
999
BEARING PLEASE REFER TO ADDITIONAL PARTS,5 057903
999
ELECTRIC CABLE , 656140
999
ELECTRIC CABLE , 656140
999
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
999
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
999
ELECTRIC CABLE , Replaced By: A3435405337
999
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
999
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
ELECTRIC CABLE , 656141
999
ELECTRIC CABLE , 656141
999
SCREW
999
SCREW , NOT USED
999
SCREW PLUG AT TANK
999
STRAP , Replaced By: A3634300340
999
WASHER , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
BUSHING , 602130
999
BEARING BRACKET , 660649, Replaced By: A3544206278, +001A3434200181
999
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
999
BRACKET SHUT-OFF COCK
999
BRACKET RELAY VALVE
999
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 24X1
