Поз.
Артикул
Описание

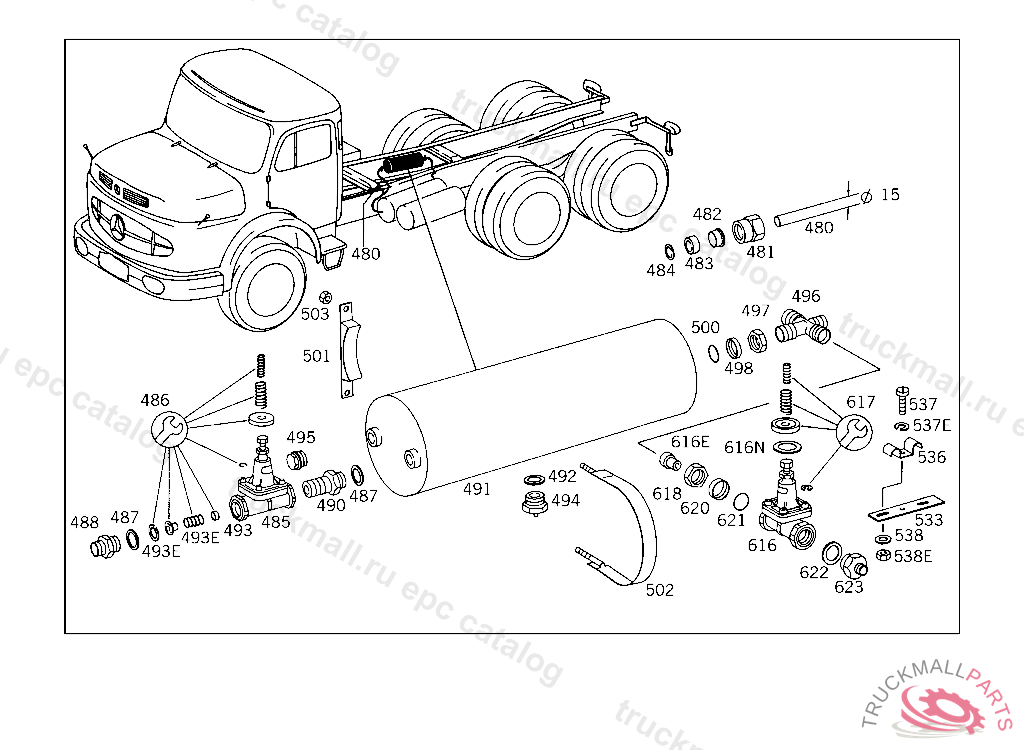

480
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
481
UNION NUT BUTT SCREW CONNECTION
482
GLAND LINE CONNECTION
483
THRUST RING BUTT SCREW CONNECTION
484
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
484
SEAL RING , Replaced By: N007603012121
485
VALVE (OVERFLOW VALVE)
485
VALVE
486
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
486
REPAIR KITTO 000 429 63 44,000 429 59 44
487
SEAL RING LINE CONNECTION
488
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
490
FITTING SHUTTLE VALVE,CONNECTION: "20"
490
FITTING , Replaced By: A0019972372
491
RESERVOIR COMPRESSED AIR 20 L., Replaced By: A0064329801
491
RESERVOIR , Replaced By: A0034321101
492
SEAL RING LINE CONNECTION
493
VALVE
495
SCREW PLUG AT TANK
495
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
496
CROSS FITTING ,880102
497
NUT CHECK VALVE TO AIR RESERVOIR
498
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
500
O-RING CHECK VALVE TO AIR RESERVOIR
501
BASE AIR RESERVOIR
502
STRAP
503
NUT BRACKET TO SUPPORT AND TO END PIECE
536
CLAMP COMPRESSED AIR LINE TO BRACKET
536
CLAMP DELIVERY AND RETURN LINES
537
SCREWM 5X20
618
NUT CHECK VALVE TO AIR RESERVOIR
620
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
621
O-RING CHECK VALVE TO AIR RESERVOIR
622
SEAL RING LINE CONNECTION
623
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
999
BOOTTO 006 420 28 18,15 18,WABCO
999
BOOTTO 000 431 16 14
999
BRAKE CYLINDER , Replaced By: A0014203524, +002N913004016004
999
BRAKE CYLINDER , Replaced By: A0014204024, +002N913004016004
999
BRAKE CYLINDER , Replaced By: A0014203824, +002N913004016004
999
DIAPHRAGMTO 008 420 23 18,WABCO
999
CUP , Replaced By: A0004215286
999
CUP , Replaced By: A0004215386
999
CUPWABCO
999
CUPKNORR
999
CUPKNORR
999
YOKE DIAPHRAGM CYLINDER GRAU 345 044 00 02/345 045 00 02
999
CUP DIAPHRAGM CYLINDER GRAU 345044 0002/345 045 00 02
999
DIAPHRAGMTO 344 429 73 44
999
LINE , Replaced By: A0005516256
999
LINE , Replaced By: A0005516456
999
CONNECTOR , Replaced By: A0004312031, +001N074302022304
999
UNION NUT , Replaced By: N003870008102
999
DIAPHRAGM
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
DIAPHRAGMTO 001 429 48 44
999
CONNECTOR , Replaced By: A0004312031, +001A0004291538
999
ELBOW FITTING
999
SEAL RING , Replaced By: N915045015100
999
ADAPTER FITTING , Replaced By: A0009970271
999
ADAPTER FITTING , Replaced By: A0004291934
999
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KIT DIAPHRAGM CYLINDER KNORR I 79146/ I 79145
999
REPAIR KITTO 003 429 02 44
999
REPAIR KIT SEAL RING BOSCH,209
999
STRAINER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE SEATWABCO
999
VALVE SEATTO 000 431 16 14
999
VALVE SEATTO 000 431 16 14
999
DIAPHRAGMTO 001 431 90 06,GRAU,5 148812
999
DIAPHRAGM , Replaced By: A0004314128
999
DIAPHRAGMTO 008 420 60 18,62 18,KNORR
999
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
BRAKE BOOSTER , UP TO CHASSIS 771307 EXCEPT FOR 500001-599999, Replaced By: A0004316514
999
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
DIAPHRAGM , Replaced By: A0004314128
999
GASKET34X2X6 MM,GRAU
999
TEST CONNECTION
999
VALVE DISCTO 001 431 90 06,GRAU,5 148812
999
SPRING RETAINERTO 000 431 16 14
999
VALVE DISCTO 001 431 90 06,GRAU,5 148812
999
WASHER ,4 390315
999
WASHER ,4 390315
999
VALVE SEATGRAU
999
VALVE SEATTO 001 431 90 06,GRAU,5 148812
999
VALVETO 000 431 16 14
999
VALVETO 001 431 90 06,GRAU,5 148812
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
STRAINERTO 001 431 90 06,GRAU,5 148812
999
PROTECTIVE CAPTO 000 431 16 14
999
PROTECTIVE CAP
999
STRAINER PRESSURE REGULATOR
999
PROTECTIVE CAPTO 000 431 16 14
999
DIAPHRAGMTO 008 420 61 18,009 420 22 18
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
BRAKE VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SEAL RINGTO 000 431 16 14
999
CUP
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SEAL RING PRESSURE REGULATOR,4 208907
999
PRESSURE REGULATOR , Replaced By: A0004317906
999
SPRING ,4 390315
999
PROTECTIVE CAPTO 001 431 90 06,GRAU,5 148812
999
CUPGRAU
999
VALVE , Replaced By: A0004320807
999
CUP 3/2-WAY VALVE WABCO
999
VALVE , Replaced By: A0004342401
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH, OPTIONAL WITH 000 434 08 01
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
REPAIR KIT , NOT USED
999
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
999
REPAIR KIT
999
VALVE
999
STRAINER , 765123
999
STRAINER , 765123
999
VALVE , NOT USED
999
VALVE , 765123
999
SEALING CORD30X3 MM
999
EXPANSION PLUG CAB REAR PANEL
999
SEALING CORD *** 52X3 MM
999
SEALING CORD47X2.5 MM
999
SEALING CORD12.3X2.4 MM,TO 000 997 39 36,49 36
999
SEALING CORD PRESSURE REGULATOR,4 208907
999
SEALING CORD11.3X2.4
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SPRING
999
SNAP RING , 765123
999
CLAMP LINE CONNECTION
999
YOKEWABCO 423 006 510-0, UP TO CHASSIS 969301,ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE 745.5
999
FITTING FROM BRAKE BOOSTER,"A" CONNECTION,TO VALVE,"V" CONNECTION, UP TO IDENT NO. 840080 EXCEPT FOR 500001-599999
999
PLUG FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
HANDLETO 000 434 24 01
999
SEAL RING , Replaced By: A0029974545
999
PLUGTO 009 420 22 18,008 420 20 18
999
PLUG
999
WHEEL BRAKE CYLINDER , Replaced By: A0004205524
999
VALVE (OVERFLOW VALVE)
999
VALVE (OVERFLOW VALVE)
999
SPRINGTO 000 431 16 14
999
CUP , Replaced By: A0004216186
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
GASKET , Replaced By: A0004311980
999
PRESSURE REGULATOR"WABCO",486597
999
PRESSURE REGULATORWABCO
999
PRESSURE REGULATOR , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 4 208908-5 148812, Replaced By: A0024315906
999
PRESSURE REGULATOR , Replaced By: A0024316006
999
SPRINGTO 000 434 21 01
999
REPAIR KITTO 001 429 52 44
999
REPAIR KIT , Replaced By: A0004301107
999
REPAIR KIT , Replaced By: A0004301407
999
SEALING CORDTO 000 429 49 30,4 434235
999
SEAL CONE
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
FITTING , Replaced By: A0039979072
999
VALVE
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
PRESSURE REGULATORBOSCH
999
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
999
PRESSURE REGULATOR , Replaced By: A0024315906
999
REPAIR KITKNORR
999
REPAIR KITKNORR
999
REPAIR KITGRAU,5 148812
999
REPAIR KITTO 001 431 79 05, FROM CHASSIS 4 375194-4 428563
999
REPAIR KITTO 000 434 11 01
999
REPAIR KIT 3/2-WAY VALVE WABCO
999
TS DOUBLE FITTING SOLENOID VALVE
999
SPRING , 765123
999
LOOM TIE , Replaced By: N916017020000
999
SEAL RING
999
VALVE (OVERFLOW VALVE)
999
SEAL RING BRAKE SHOE ROLLER
999
SEAL RING BRAKE HOSE
999
FITTING , Replaced By: A0029906071
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RING18.72X2.62 MM,WABCO,002 0,012 0
999
SEAL RING74.20X5.70 MM,WABCO
999
SEAL RINGTO 000 429 65 44, NOT USED
999
SEAL RINGTO 000 434 21 01
999
SEAL RINGTO 000 431 16 14
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RING , 765123
999
SEAL RING , 765123
999
REPAIR KIT , Replaced By: A3534200067
999
BRACKET , Replaced By: A3604292940
999
BASE , Replaced By: A3142030084
999
BRACKET FUEL LINE, 004265
999
BRACKET , Replaced By: A3045420940, +001N000125010500
999
RIVET
999
SHIM BRACKET TO LEFT SIDE MEMBER
