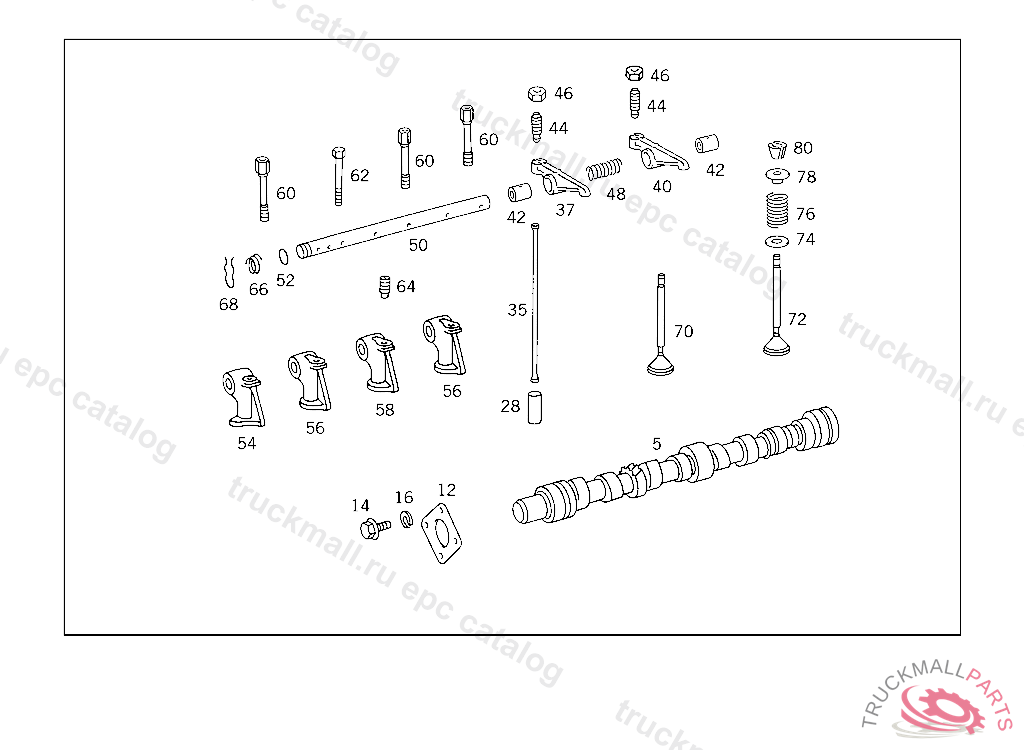

Поз.
Артикул
Описание
5
CAMSHAFT WITH CAMSHAFT MOUNTED INJECTION TIMING DEVICE,LIFTING PIN WIDTH, 28 MM, FROM ENGINE 283202-999999 YEAR OF MANUFACTURE 1978-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
12
THRUST WASHER CAMSHAFT FIXING, 340.930 FROM ENGINE 085456 ONLY APPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
14
SCREW COVER PLATE TO COVER PLATE
16
LOCK WASHER RAIL TO BATTERY SUPPORT
28
VALVE TAPPET STANDARD 27.98 MM-27.99 MM
28
VALVE TAPPET REPAIR SIZE II 28.48 MM-28.49 MM
28
VALVE TAPPET REPAIR SIZE I 28.18 MM-28.19 MM
28
VALVE TAPPET REPAIR SIZE I 28.18 MM-28.19 MM
28
VALVE TAPPET REPAIR SIZE II 28.48 MM-28.49 MM
28
VALVE TAPPET STANDARD 27.98 MM,27.99 MM,729031
28
VALVE TAPPET REPAIR SIZE III 28.73 MM - 28.74 MM
28
VALVE TAPPET REPAIR SIZE III 28.73 MM,28.74 MM
35
PUSH ROD
37
ROCKER ARM LEFT NO.1,NO.3,NO.5,NO.7
37
ROCKER ARMNO. 1, NO. 3, NO. 5, NO. 7
40
ROCKER ARMNO. 2, NO. 4, NO. 6, NO. 8
40
ROCKER ARMNO.2,NO.4,NO.6,NO.7
42
BUSHINGTO 352 050 06 34,352 050 10 33
42
BUSHINGTO 366 050 05 33,04 34
44
BALL PIN ROCKER ARM
46
NUT
46
NUT , Replaced By: A4229900051
48
SPRING LONG,ROCKER ARM SPACING
50
ROCKER ARM SPINDLE
52
EXPANSION PLUG LATERAL P.T.O. WITH REVERSE SPEED
54
ROCKER ARM BRACKET OIL SUPPLY NO.1
56
ROCKER ARM BRACKETNO.2,5,6
58
ROCKER ARM BRACKETNO.3
58
ROCKER ARM BRACKET , Replaced By: A3520550210, +001N000417006001
60
SCREW ROCKER SHAFT TO CYLINDER HEAD
60
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 177596, Replaced By: A3669900104
62
SCREW , Replaced By: A0029903804
64
HEADLESS SETSCREW PLANET GEAR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
66
SPRING
68
SPRING
70
INTAKE VALVE , Replaced By: A3520500026
72
EXHAUST VALVE , Replaced By: A3660500627
72
EXHAUST VALVE , Replaced By: A3660500027
74
WASHER
74
WASHER VALVE SPRING
76
VALVE SPRING
76
VALVE SPRING
78
SPRING RETAINER
80
VALVE COLLET
80
VALVE COLLET
