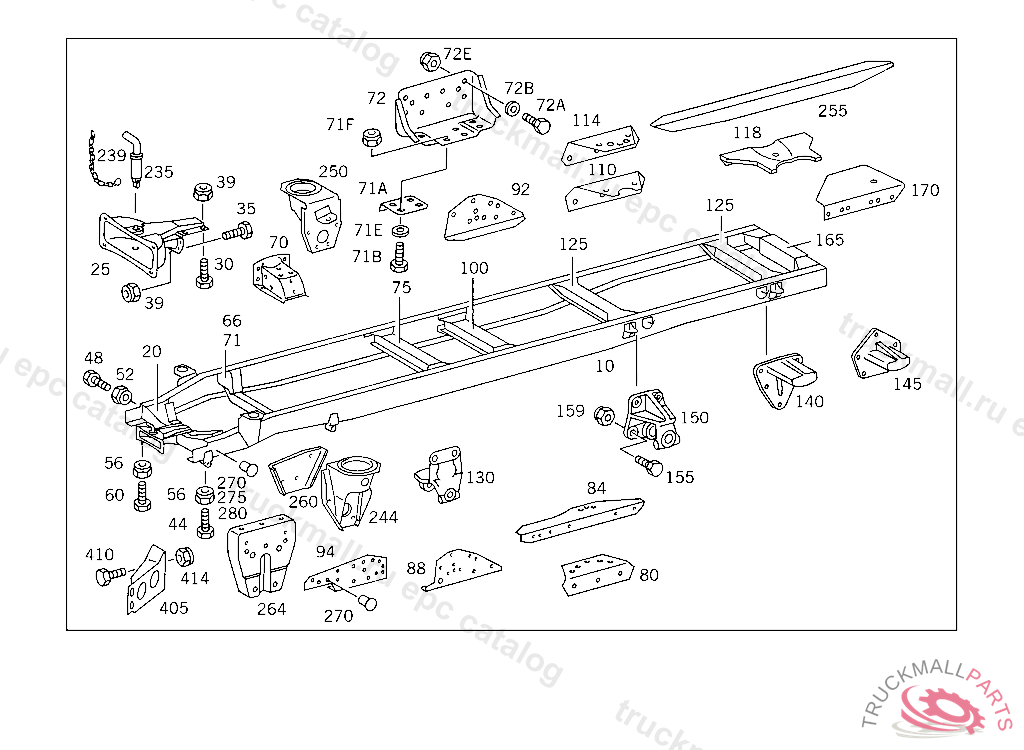

Поз.
Артикул
Описание
10
20
ENGINE CROSS MEMBERNO.1
25
BRACKET , ON CAB 331
30
SCREW BRACKET TO SIDE MEMBER
35
SCREW , Replaced By: N304017010040
39
NUT BRACKET TO SIDE MEMBER,XB209706
44
SCREW , Replaced By: N304017010002
48
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
52
NUT SUPPORT TO SIDE MEMBER
56
NUT BRACKET TO SIDE MEMBER,XB209706
60
SCREW BRACKET TO SIDE MEMBER
71
ENGINE CROSS MEMBER REAR,B 669058
72
SUPPORT ENGINE REAR CROSS MEMBER TO SIDE MEMBERS,B 669058
75
CROSS MEMBERNO.3
80
ANGLE LEFT AND RIGHT
84
ANGLE LEFT
84
ANGLE , Replaced By: A3443127452
84
ANGLE , Replaced By: A3443127552
84
ANGLE RIGHT
94
TRUSS RIGHT SIDE MEMBER
94
TRUSS LEFT SIDE MEMBER
118
REINFORCEMENT
125
CROSS MEMBERNO.5,6
130
FRONT SPRING BRACKET FRONT AND REAR
140
HELPER SPRING BRACKET FRONT
140
HELPER SPRING BRACKET FRONT
145
HELPER SPRING BRACKET REAR
145
HELPER SPRING BRACKET REAR
150
REAR SPRING BRACKET FRONT AND REAR
155
SCREWM 14X14X22X40
159
NUT , Replaced By: N910113014000
165
CROSS MEMBER REAR CROSS MEMBER
170
GUSSET PLATE
170
GUSSET PLATE
235
COUPLING PIN , ON CAB 331
239
FASTENER TO SECURE PIN
244
BODY SUPPORT LEFT
250
CONSOLE RIGHT
255
TRUSS LEFT
255
TRUSS RIGHT
260
REINFORCEMENT LEFT
260
REINFORCEMENT RIGHT
270
RIVET10X26 MM
270
RIVET10X16 MM
270
RIVET10X34 MM
270
RIVET10X28 MM
270
RIVET
270
RIVET10X30 MM
275
RIVET12X52 MM
275
RIVET12X38 MM
275
RIVET12X48 MM
275
RIVET PLATE TO FRAME,KB860814
275
RIVET12X26 MM, TO BE ADAPTED DURING ASSEMBLY
275
RIVET12X28 MM
275
RIVET12X36 MM
275
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
275
RIVET12X42 MM
275
RIVET HELPER SPRING BRACKET TO SIDE MEMBER,KB860814
280
RIVET MOUNTING PARTS 14X39 MM
280
RIVET14X30 MM
280
RIVET CROSS MEMBER TO SIDE MEMBERS 14X32MM, 647770
405
BRACKET , ON CAB 331
405
BRACKET , ON CAB 331
410
SCREW , Replaced By: N304017010040
414
NUT BRACKET TO SIDE MEMBER,XB209706
999
SHIM CROSS MEMBER TO CONSOLE,B 669058
999
WASHER SUPPORT TO FRAME,D 127794
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
